Chassis cab with flatbed
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Introduction (2003 range) › Chassis cab with flatbed
00 Introduction and technical dataChassis cab with flatbed · page 1 of 3

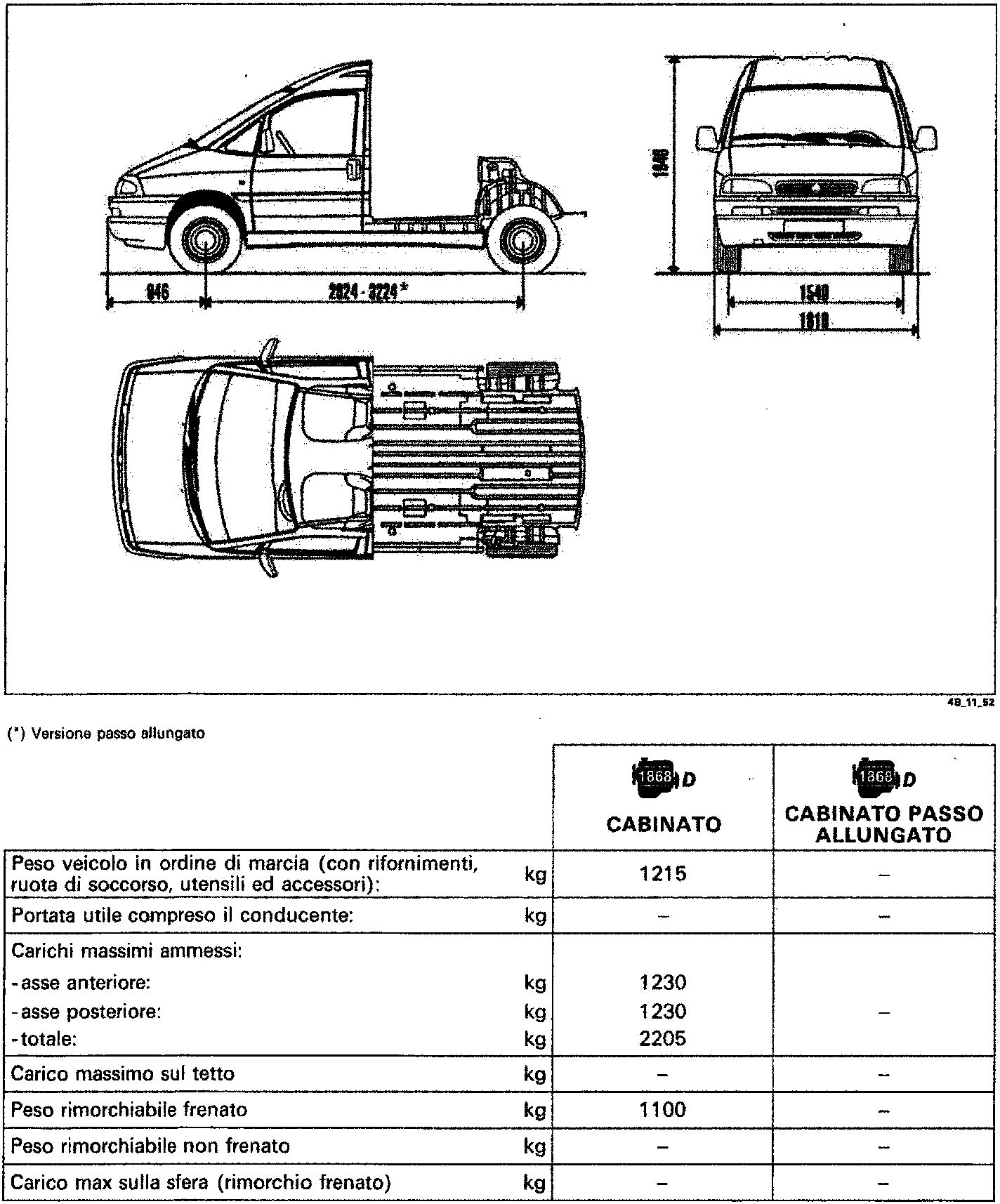

CHASSIS CAB WITH FLATBED
(*) Extended wheelbase version
| 1868 D CHASSIS CAB |
1868 D CHASSIS CAB EXTENDED WHEELBASE |
||
|---|---|---|---|
| Vehicle weight in running order (with fluids, spare wheel, tools and accessories): | kg | 1215 | – |
| Useful load including driver: | kg | – | – |
| Maximum permitted loads: - front axle: - rear axle: - total: |
kg kg kg |
1230 1230 2205 |
– |
| Maximum roof load | kg | – | – |
| Towing capacity (braked) | kg | 1100 | – |
| Towing capacity (unbraked) | kg | – | – |
| Max load on towball (braked trailer) | kg | – | – |
