00 Introduction and technical dataPlated/glazed

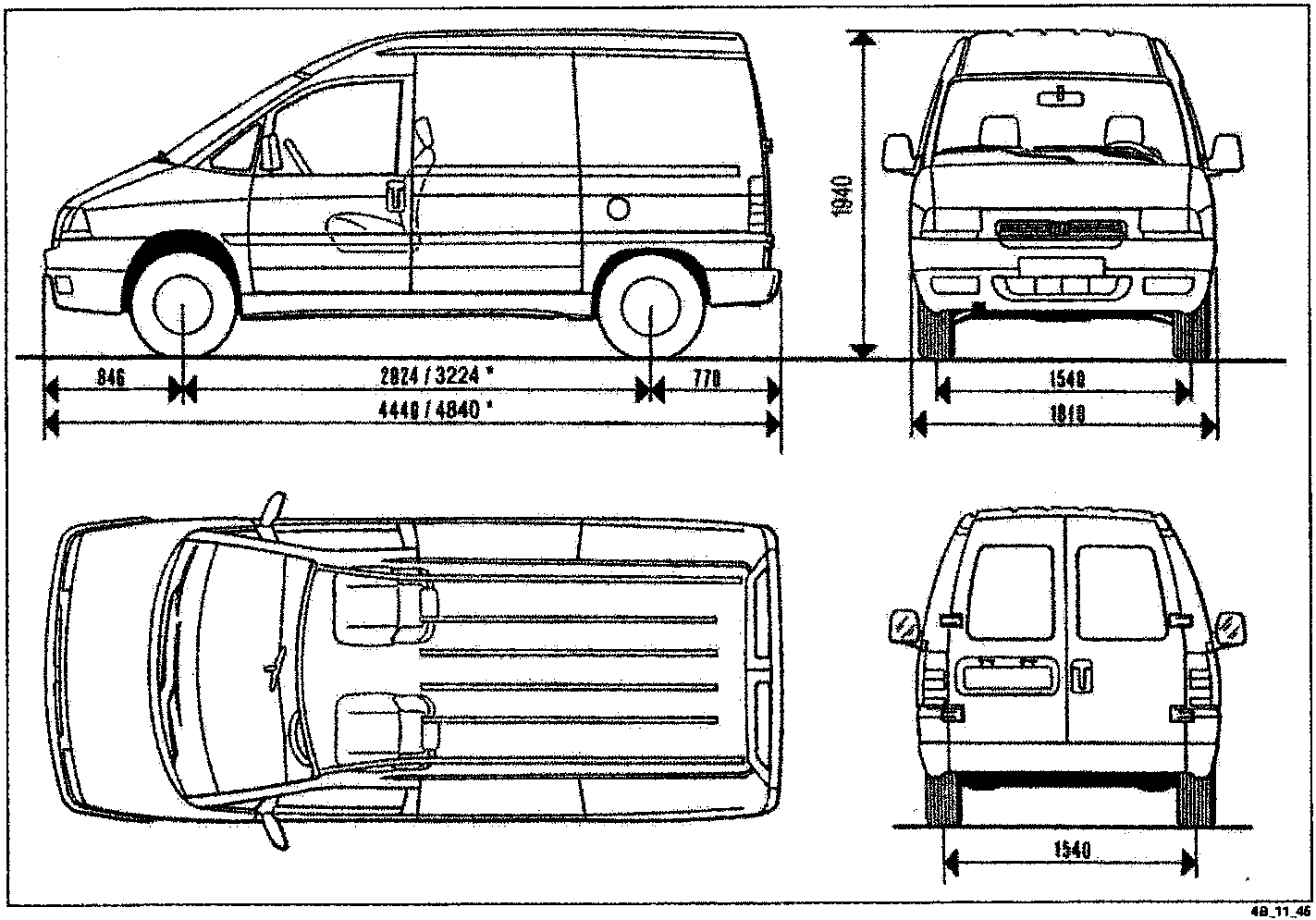

PLATED/GLAZED
Extended wheelbase version
| [1868] D | [1997] JTD 16v | [1997] 16v | |||||
|---|---|---|---|---|---|---|---|
| VAN | EXTENDED WHEELBASE VAN | VAN | EXTENDED WHEELBASE VAN | VAN | AMBULANCE | ||
| Kerb weight (with fluids, spare wheel, tools and accessories): | kg | 1380 | 1410 | 1400 | 1445 | 1370 | 1630 |
| Permissible load including driver: | kg | 825 | 795 | 815 | 870 | 815 | 555 |
| Maximum permissible loads: - front axle: - rear axle: - total: |
kg kg kg |
1230 1230 2205 |
1230 1300 2205 |
1230 1230 2215 |
1230 1300 2315 |
1225 1230 2135 |
1230 1230 2185 |
| Maximum roof load | kg | 150 | 150 | 150 | 150 | 150 | 150 |
| Towing capacity (braked) | kg | 1100 | 1100 | 1300 | 1300 | 1300 | 1300 |
| Towing capacity (unbraked) | kg | 750 | 750 | 750 | 750 | 750 | 750 |
| Max ball load (braked trailer) | kg | 60 | 60 | 60 | 60 | 60 | 60 |

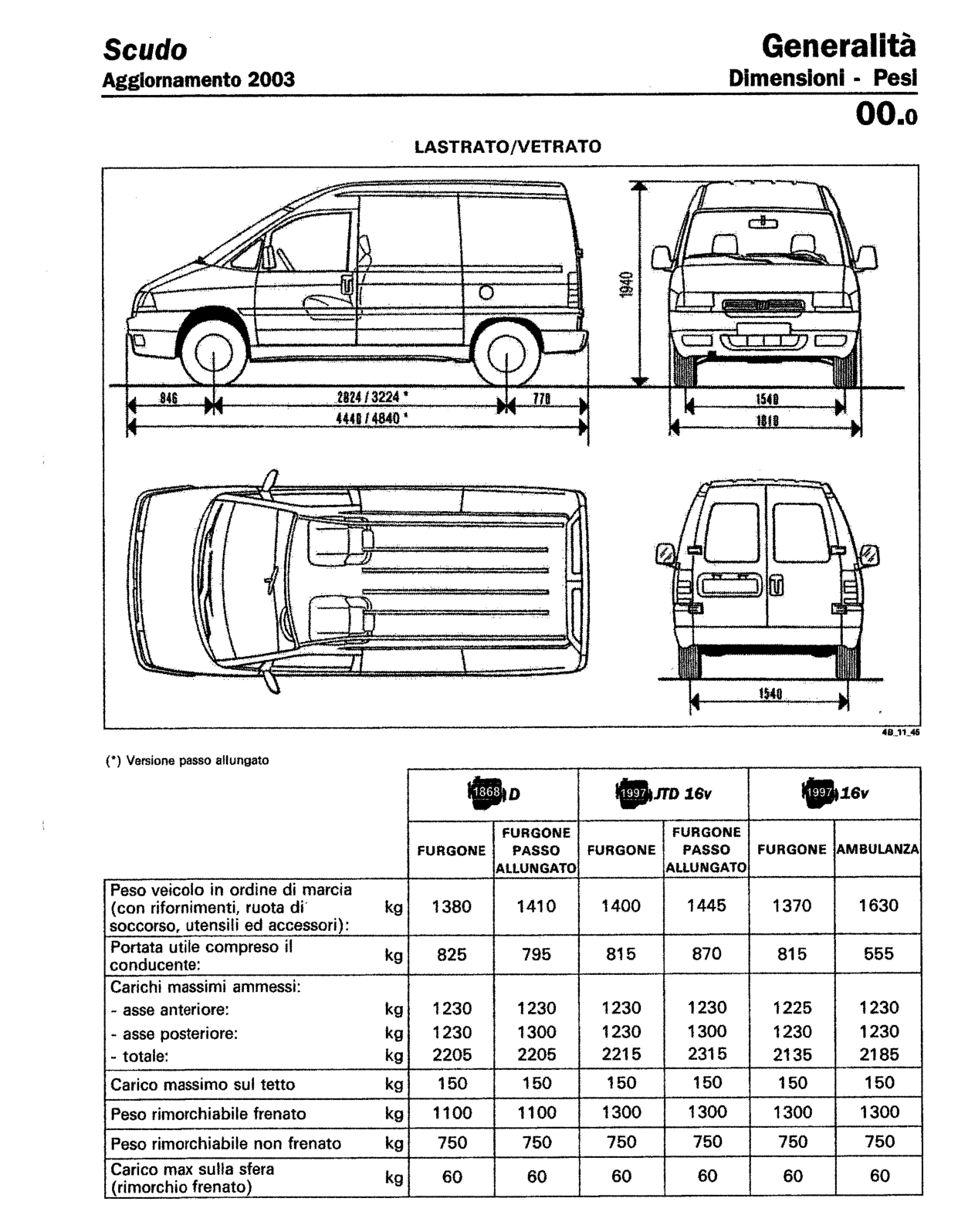

Original page
