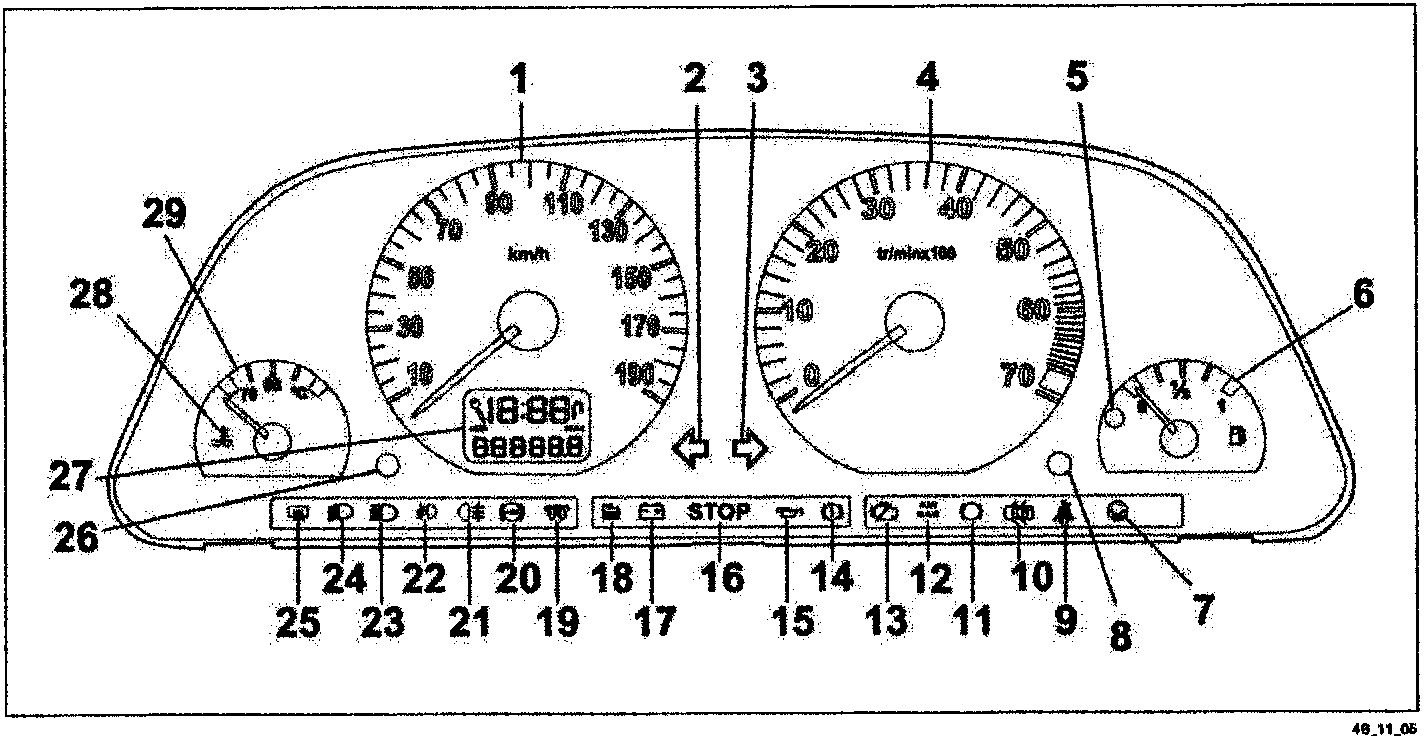

Front view

FRONT VIEW

1. Speedometer
2. Optical indicator (green) left direction light
3. Optical indicator (green) right direction light
4. Tachometer
5. Optical indicator (yellow) fuel reserve
6. Fuel level indicator
7. Optical indicator (yellow) water in fuel presence
8. Control panel brightness adjustment button and clock settings
9. Optical indicator (red) seat belts unfastened
10. Optical indicator (red) open doors warning
11. Optical indicator (yellow) brake pad wear
12. Optical indicator (yellow) Air-Bag system fault warning
13. Optical indicator (yellow) injection system fault
14. Optical indicator (red) handbrake engaged and insufficient brake fluid level
15. Optical indicator (red) insufficient engine oil pressure warning
16. Optical indicator (red) general fault warning
17. Optical indicator (red) insufficient generator charge
18. Optical indicator (red) insufficient coolant level warning
19. Optical indicator (yellow) glow plug preheating
20. Optical indicator (yellow) ABS anti-lock wheel circuit fault
21. Optical indicator (yellow) rear fog lights
22. Optical indicator (yellow) front fog lights
23. Optical indicator (blue) dipped headlights
24. Optical indicator (green) main beam headlights
25. Optical indicator (yellow) heated rear window
26. Maintenance indicator adjustment button/partial odometer reset
27. Maintenance indicator, engine oil level indicator, partial/total odometer indicator, digital clock
28. Optical indicator (red) excessive engine coolant temperature
29. Engine coolant temperature indicator
