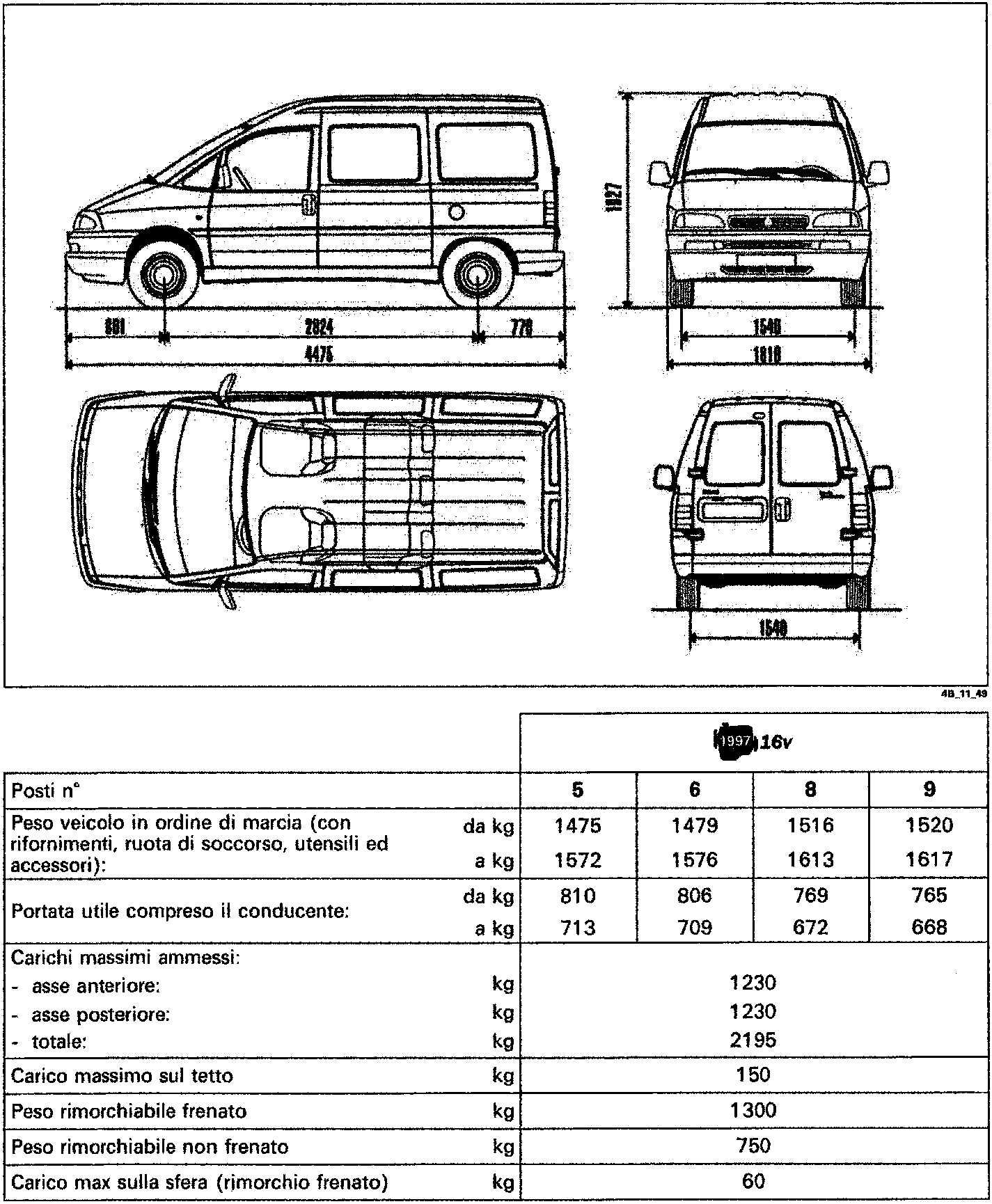

00 Introduction and technical dataCombined
COMBINED
| 1997 16v | |||||
|---|---|---|---|---|---|
| Seats no. | 5 | 6 | 8 | 9 | |
| Vehicle weight in running order (with fluids, spare wheel, tools and accessories): | from kg | 1475 | 1479 | 1516 | 1520 |
| to kg | 1572 | 1576 | 1613 | 1617 | |
| Useful load including driver: | from kg | 810 | 806 | 769 | 765 |
| to kg | 713 | 709 | 672 | 668 | |
| Maximum permissible loads: | |||||
| - front axle: | kg | 1230 | |||
| - rear axle: | kg | 1230 | |||
| - total: | kg | 2195 | |||
| Maximum roof load | kg | 150 | |||
| Braked towing capacity | kg | 1300 | |||
| Unbraked towing capacity | kg | 750 | |||
| Max load on ball (braked trailer) | kg | 60 | |||
