Control and operating devices

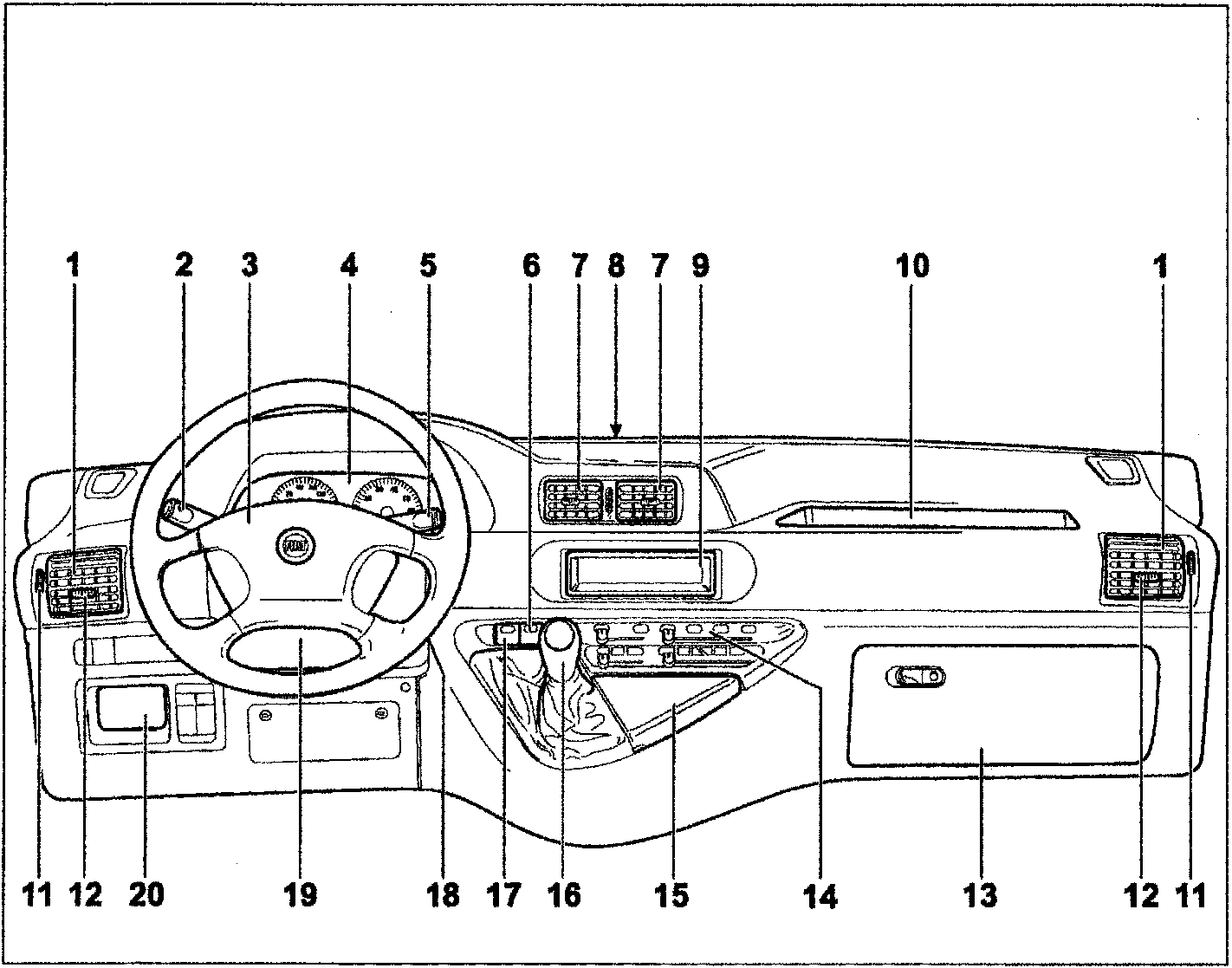

CONTROL AND OPERATING DEVICES

(version without passenger side Air Bag)

1. Fixed vent for side windows
2. Left lever: horn - indicators - headlights
3. Air Bag
4. Instrument panel
5. Right lever: windscreen wash - rear window wash
6. Hazard warning light button
7. Adjustable central vent (only for Scudo EL or versions with manual air conditioning)
8. Vent for front windscreen
9. Storage compartment - Radio housing
10. Storage compartment
11. Opening/closing of adjustable vent
12. Airflow direction
13. Glove box
14. Controls: heating - ventilation - manual air conditioning (where fitted)
15. Cigarette lighter - ashtray
16. Gear lever
17. Rear window heater button (where fitted)
18. Ignition switch
19. Fuse box
20. Storage compartment
