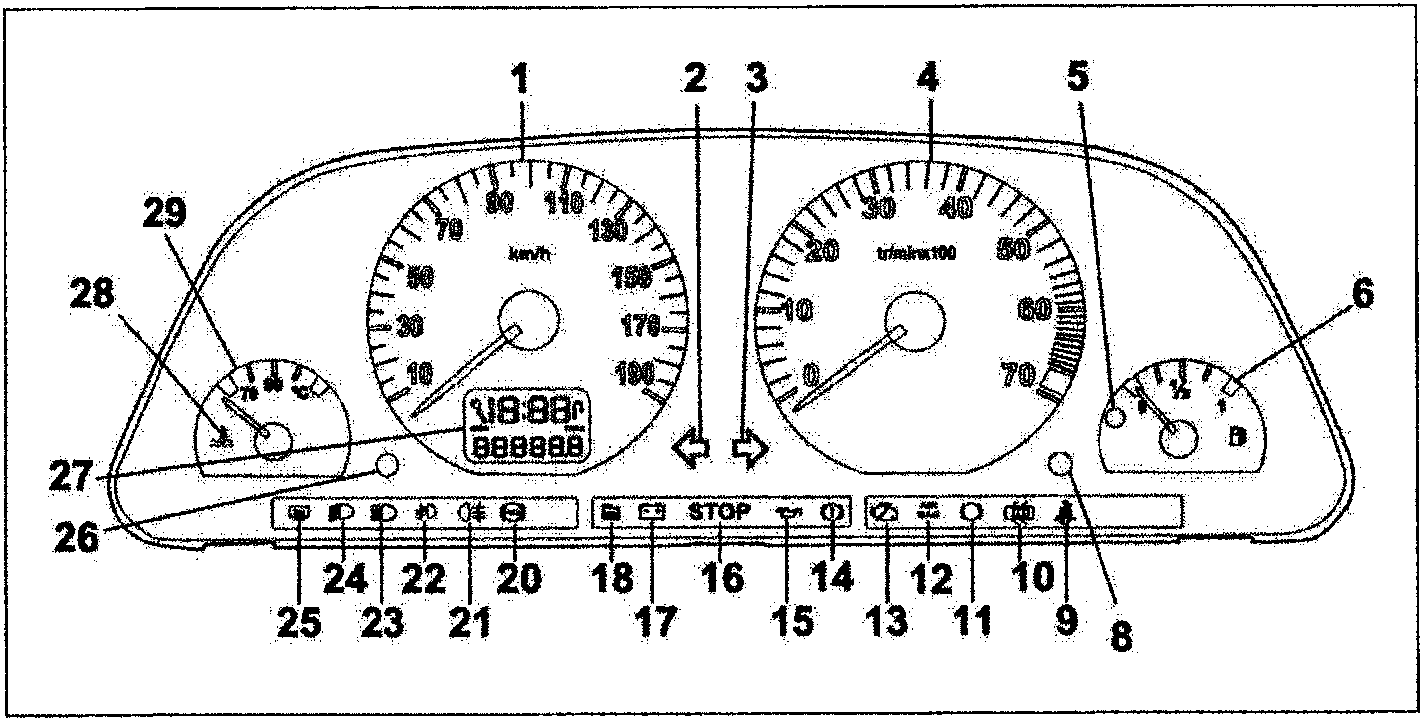

Front view

FRONT VIEW

1. Tachometer
2. Optical indicator (green) left direction light
3. Optical indicator (green) right direction light
4. Rev counter
5. Optical indicator (yellow) fuel reserve
6. Fuel level indicator
7. Button for adjusting control panel brightness and clock settings
8. Optical indicator (red) seat belts unfastened
9. Optical indicator (red) open doors warning
10. Optical indicator (yellow) brake pad wear
11. Optical indicator (yellow) Air-Bag system fault
12. Optical indicator (yellow) injection system fault
13. Optical indicator (red) handbrake engaged and insufficient brake fluid level
14. Optical indicator (red) insufficient engine oil pressure warning
15. Optical indicator (red) general fault
16. Optical indicator (red) insufficient generator charge
17. Optical indicator (red) insufficient coolant level warning
18. Optical indicator (yellow) ABS anti-lock braking circuit fault
19. Optical indicator (yellow) rear fog lights
20. Optical indicator (yellow) front fog lights
21. Optical indicator (blue) high beam headlights
22. Optical indicator (green) low beam headlights
23. Optical indicator (yellow) heated rear window
24. Button for adjusting maintenance indicator/resetting trip odometer
25. Maintenance indicator, engine oil level indicator, partial/total trip odometer, clock
26. Optical indicator (red) excessive engine coolant temperature
27. Engine coolant temperature indicator
