Fiat Scudo Factory Service Manual (1996-2006)02 · 10 Engine
02 · Engine

Refitting (page 3 of 4)

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Replacement operations on vehicle (1905 D)
10 EngineRefitting · page 3 of 4

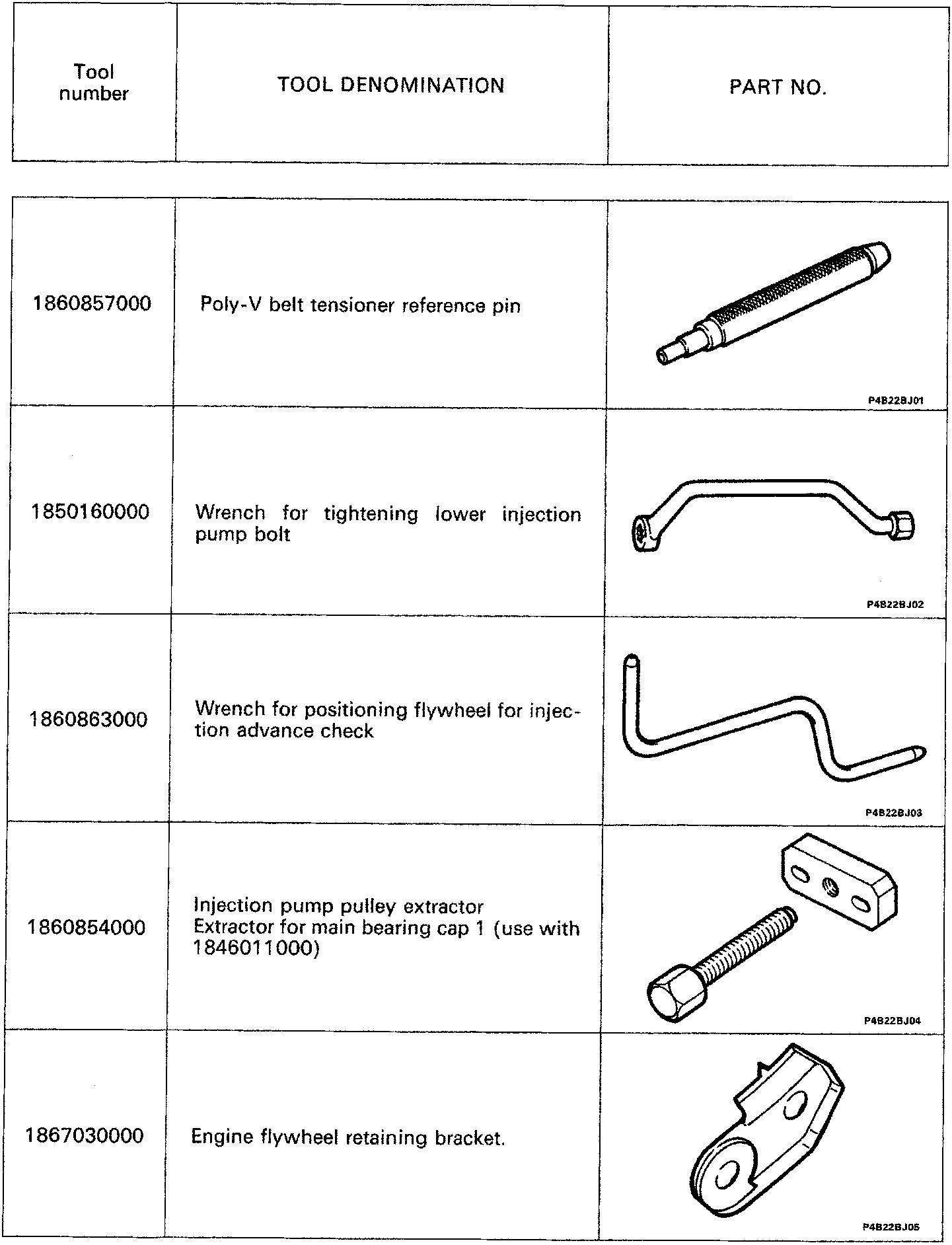

Tool number TOOL DENOMINATION PART NO.
1860857000 Poly-V belt tensioner reference pin
Cylindrical metal reference pin with a threaded end and hexagonal base

P4B22BJ01
1850160000 Wrench for tightening lower injection pump bolt
L-shaped metal wrench with hexagonal sockets on both ends

P4B22BJ02
1860863000 Wrench for positioning flywheel for injection advance check
Long bent metal rod tool with a hook at one end and a flat tip at the other

P4B22BJ03
1860854000 Injection pump pulley extractor
Extractor for main bearing cap 1 (use with 1846011000)
A threaded bolt with a hexagonal head and a rectangular block with two holes

P4B22BJ04
1867030000 Engine flywheel retaining bracket.
Cast metal bracket with circular openings and mounting holes

P4B22BJ05
