TIMING BELT

Removing

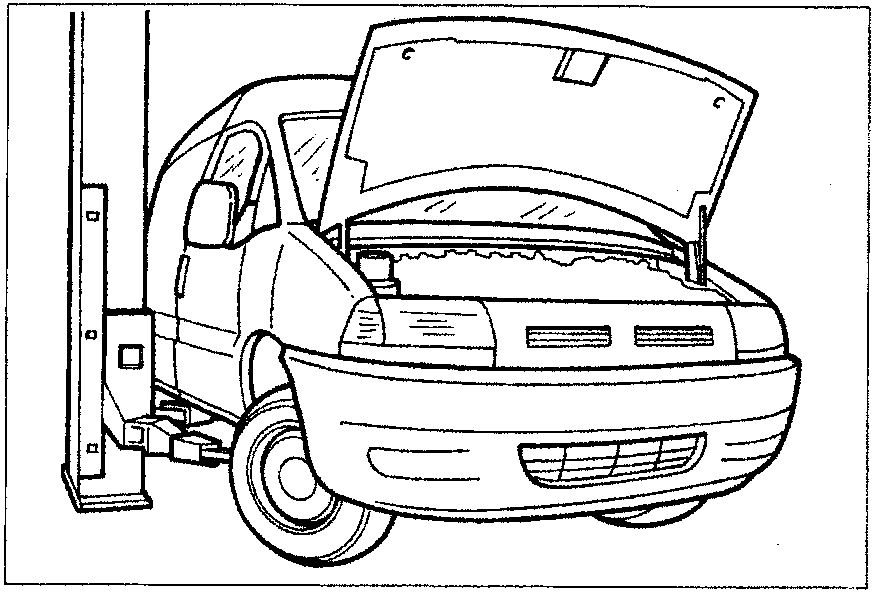

Position the vehicle on a lift, check gear is in neutral and remove right from wheel.

Remove timing belt as follows:

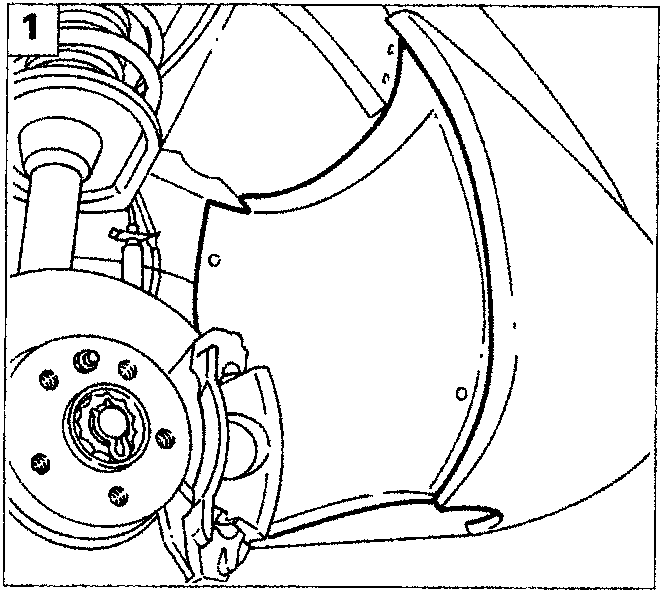

1. unscrew retaining bolts and remove wheel arch guard;
2. loosen screw retaining lower Poly-V belt tensioner;

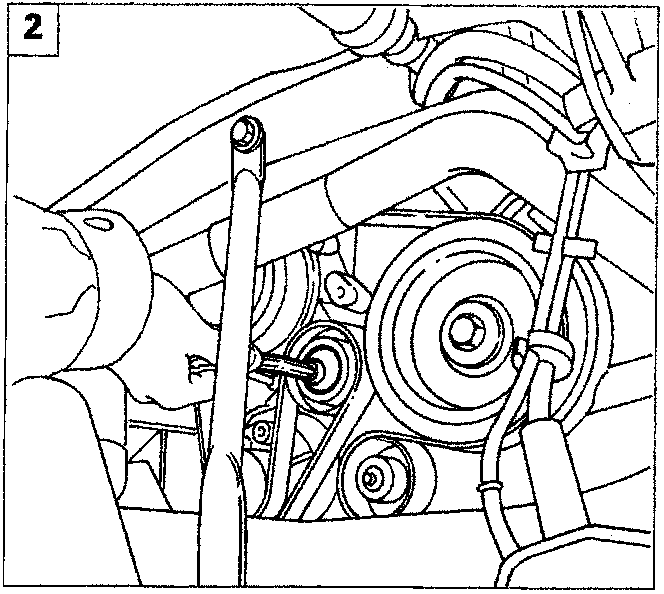

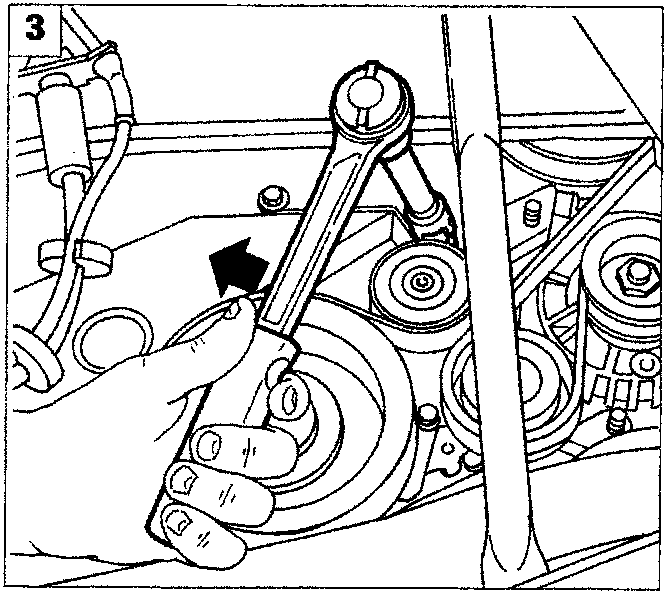

3. fit a square 1/2" wrench in the groove on the upper tensioner bracket and loosen Poly-V belt tension by turning clockwise and withdraw belt;
