Fiat Scudo Factory Service Manual (1996-2006)02 · 10 Engine
02 · Engine

Timing belt (page 5 of 5)

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Replacement operations on vehicle (1905 D)
10 EngineTiming belt · page 5 of 5

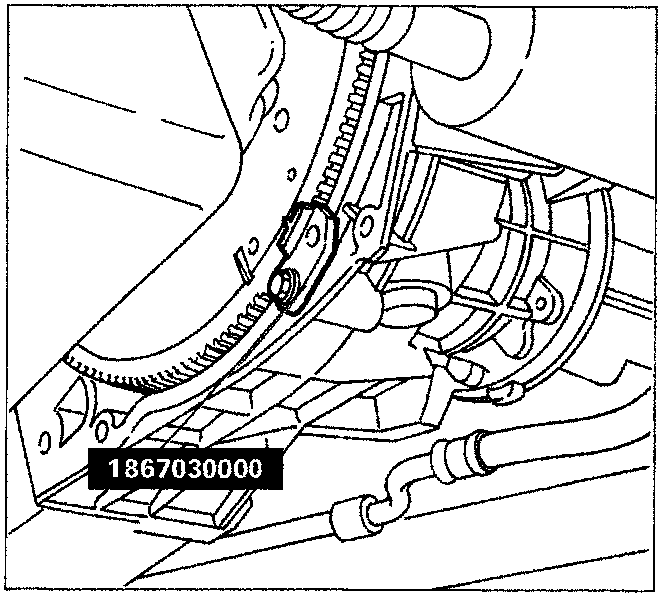

Diagram showing the positioning of flywheel retaining tool 1867030000 using an M6x1 screw on the engine assembly.
  • position flywheel retaining tool 1867030000 using an M6x1 screw;

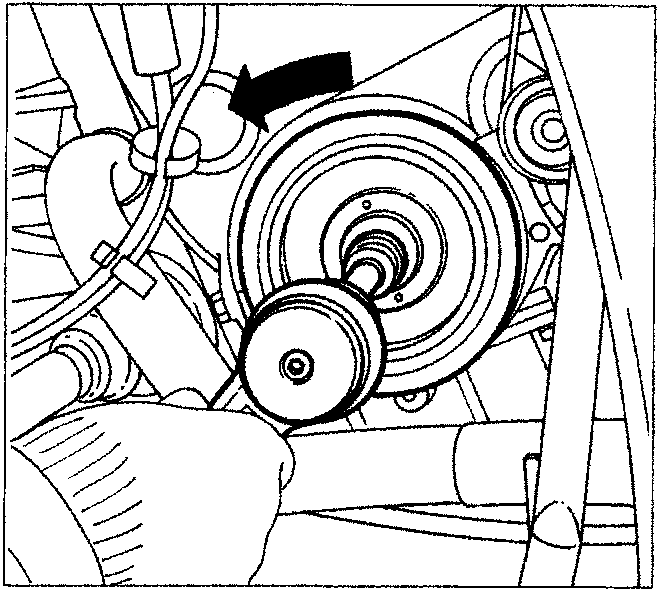

Diagram showing a hand unscrewing the bolt retaining the Poly-V belt and removing the pulley from the engine.
  • unscrew bolt retaining Poly-V belt and remove pulley;

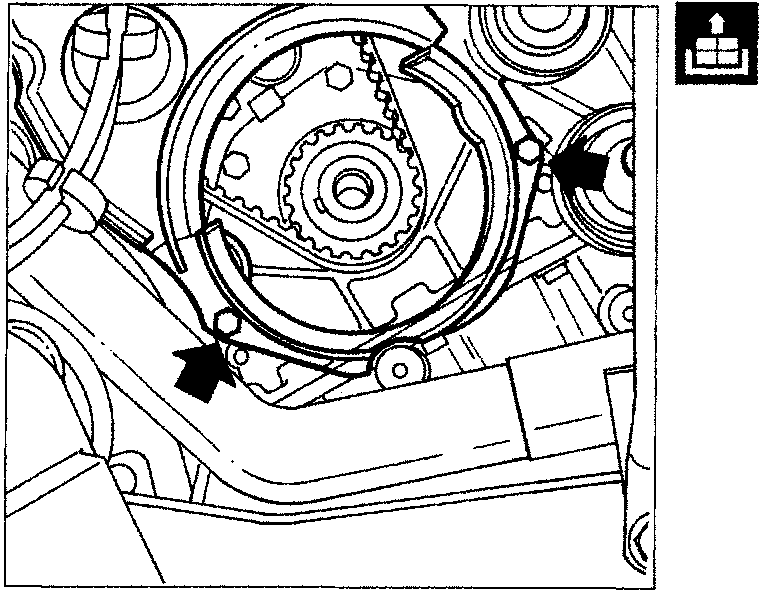

Diagram showing the location of two bolts (indicated by arrows) retaining the lower guard on the engine.
  • unscrew both bolts (arrowed) retaining lower guard and remove the guard;
