Fiat Scudo Factory Service Manual (1996-2006)02 · 10 Engine
02 · Engine

Timing belt (page 2 of 5)

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Replacement operations on vehicle (1905 D)
10 EngineTiming belt · page 2 of 5

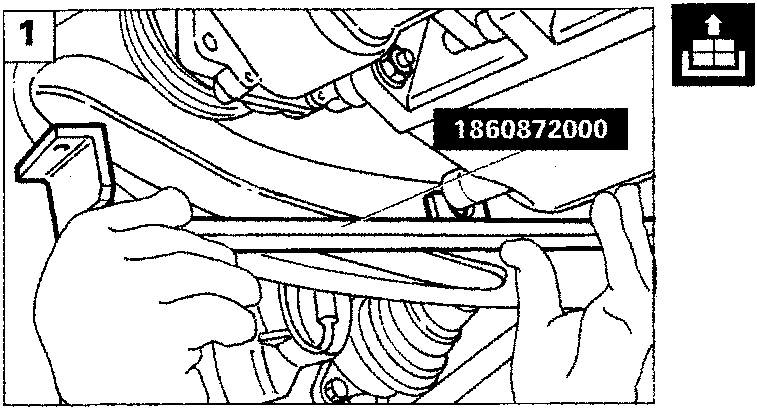

Diagram showing hands positioning engine support tool 1860872000 by inserting it into a rail.
1. position engine support tool 1860872000 by inserting into rail initially;

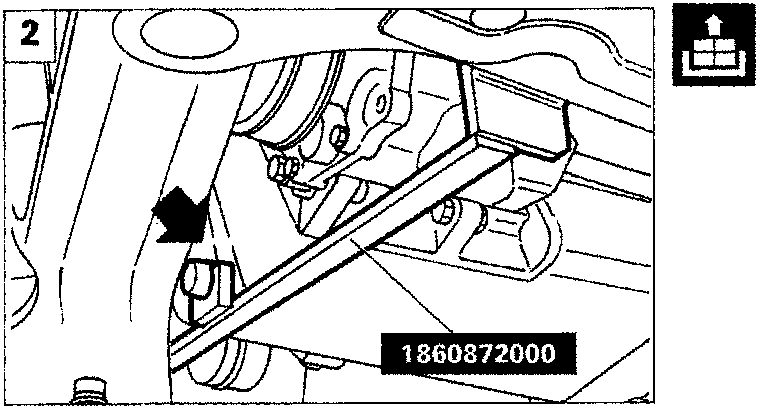

Diagram showing the engine support tool 1860872000 resting inside the beam, with a black arrow indicating the slot fitting onto the engine oil sump protrusion.
2. rest tool inside beam so that slot fits on engine oil sump protrusion (arrowed);

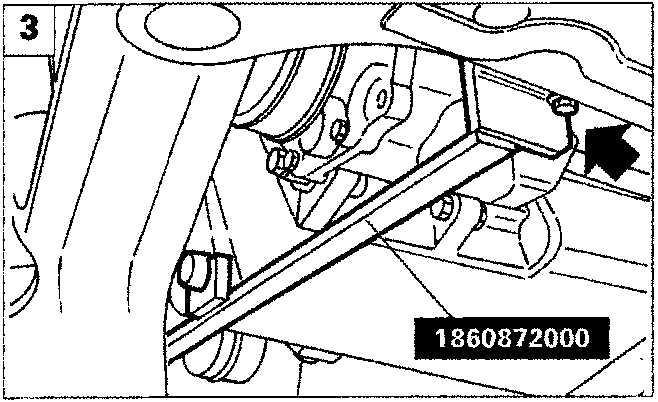

Diagram showing the engine support tool 1860872000 secured to the beam with an M6x1 bolt, indicated by a black arrow.
3. secure tool to the beam using a M6x1 bolt (arrowed): then lower the lift;

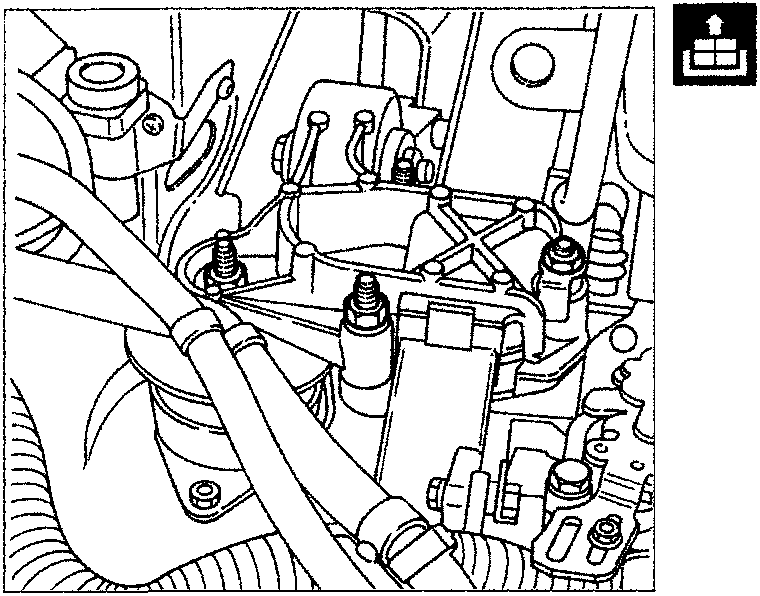

Diagram of the engine bay area showing the timing end power unit support bracket and surrounding components.
- working from the engine bay, unscrew timing end power unit support bracket and remove;
