Refitting

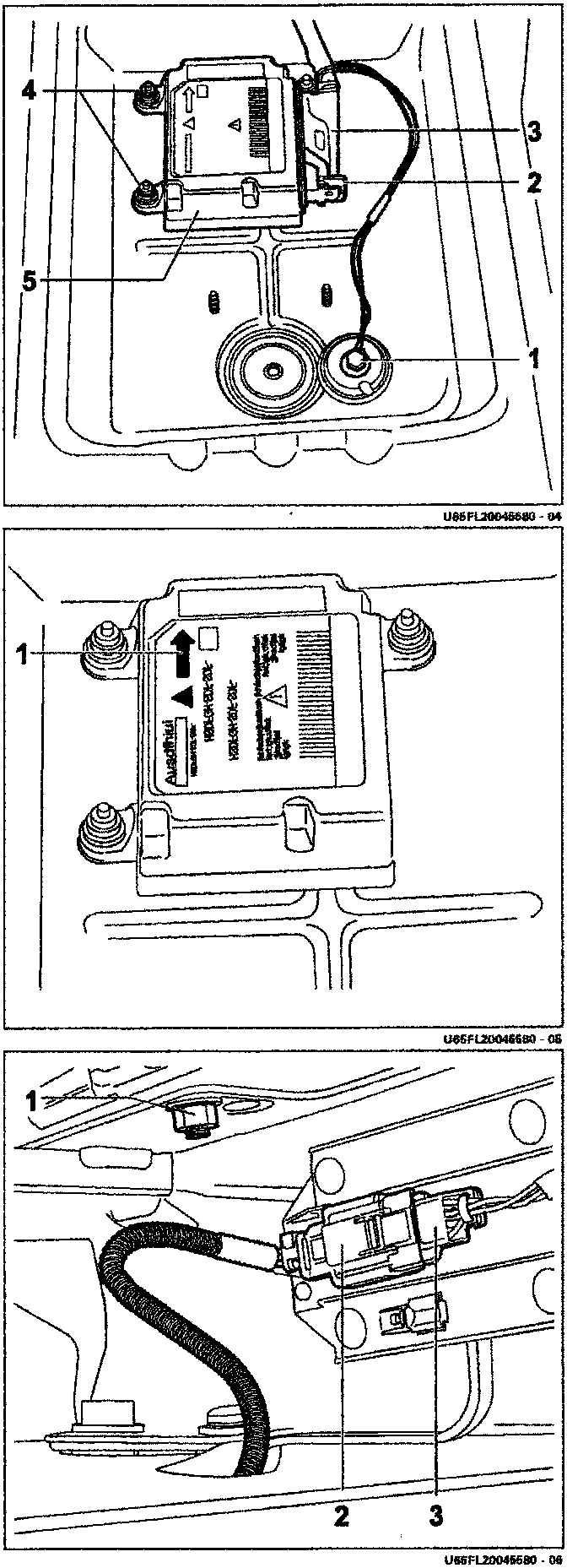

• Undo the fixing screw (1) and disconnect the earth cable of the wiring harness.
• Using a screwdriver of appropriate size, release the safety hook (2) and disconnect the connector (3) from the Air - Bag control unit.
• Undo the fixing nuts (4) and remove the Air - Bag control unit from the vehicle.

Refitting

WARNING

On refitting ensure that there is no dirt or grease on the control unit housing.

• Place the control unit in its housing in the correct position: with the arrow (1), shown on the plate, facing forwards, in the direction of travel of the vehicle.
• Screw in the fixing nuts and tighten to a torque of 0.8 daNm.
• Fit the earth connection and screw in the fixing screw.

Continue the refitting procedure by carrying out the removal procedure in reverse order.

REMOVAL - REFITTING SIDE AIR - BAG MODULE

WARNING

Disconnect and isolate the battery terminals. When carrying out the procedures, strictly observe the safety regulations given in the previous update.

Removal

• Undo the fixing nuts (1) of the sliding guides and detach the seat from the support.
• Unplug the connection (2) and, acting with caution, disconnect the green connector (3) of the wiring harness for the Air - Bag module control.
• Remove the seat from the vehicle.
