Refitting (page 2 of 2)

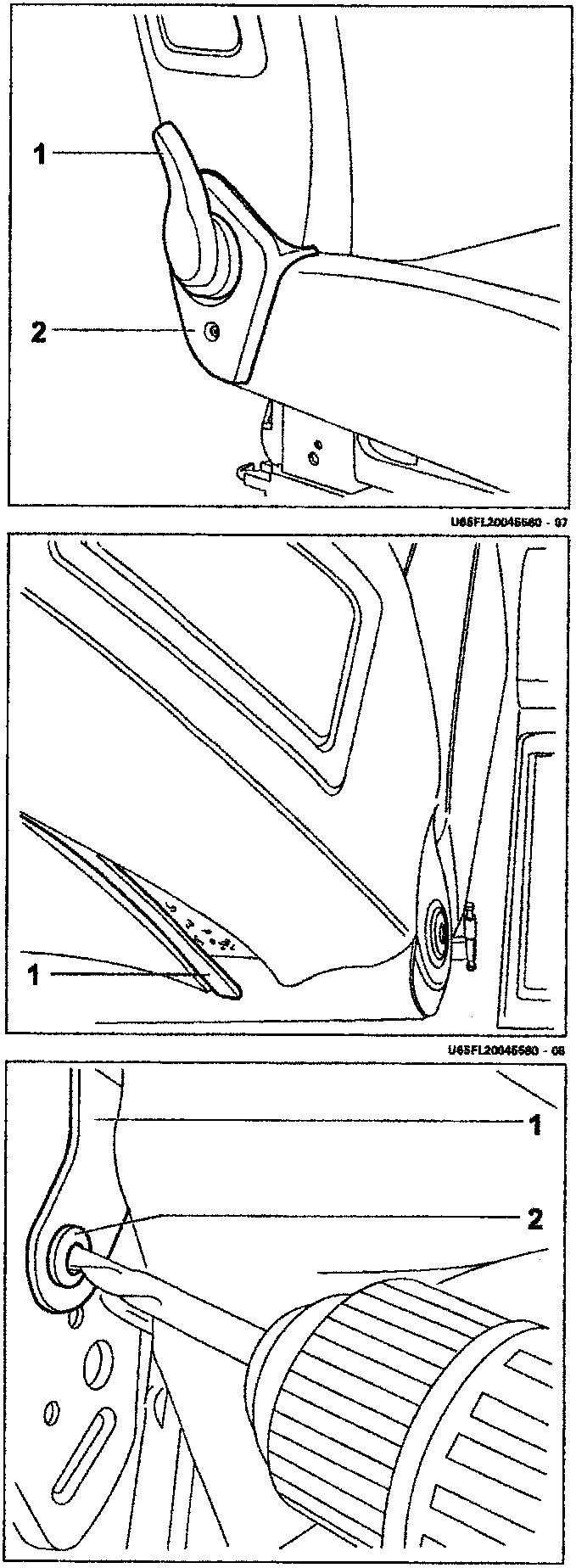

- Remove the backrest adjustment knob (1). - Unscrew the fixing screws and remove the cover (2) from the seat. - Unclip from the snap-fit joint (1) and separate the backrest trim from the Air Bag module side. - Lift the backrest trim until you can access the anchorage (1) of the Air Bag module. Using a drill with an appropriately sized bit, remove the rivet (2) anchoring the Air Bag module to the backrest structure.
