55 Electrical equipmentControl units · page 3 of 3

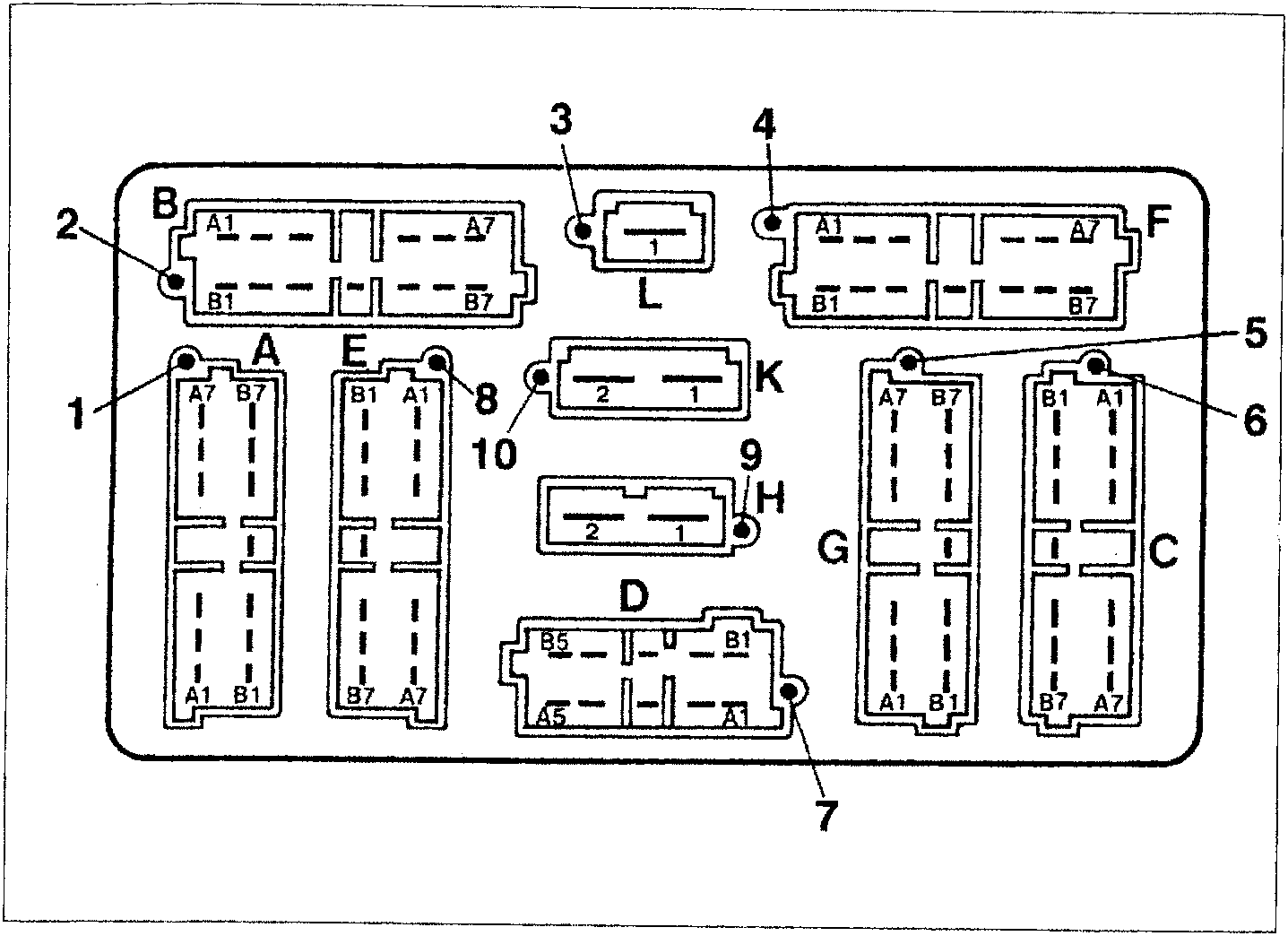

Rear view of junction unit in BF00 dashboard

1. Brown coloured reference
2. Orange coloured reference
3. Black coloured reference
4. Red coloured reference
5. Green coloured reference
6. Blue coloured reference
7. Yellow coloured reference
8. Grey coloured reference
9. Black coloured reference
10. Brown coloured reference
