Key

Key

1. Trip recorder speedometer
2. Left direction indicator warning light (green) (V7)
3. Brake pad wear warning light (yellow) (V5)
4. Anti-lock braking system fault warning light (yellow) (model with ABS) (not used) (V2)
5. Fuel injection fault warning light (yellow) (V3)
6. Seat belt unfastened warning light (not used) (V4)
7. Right direction indicator warning light (green) (V8)
8. Fuel reserve warning light (yellow) (V13)
9. Fuel gauge
10. Wheel anti-skid warning light (green) (not used) (V9)
11. Wheel anti-skid fault/inhibition warning light (amber) (not used) (V10)
12. Side lights fault warning light (amber) (not used) (V14)
13. Catalytic converter overheating warning light (red) (not used)
14. Low coolant level warning light (red) (V19)
15. AIR BAG system fault warning light (amber) (V18)
16. Coolant overheating warning light (red) (V21)
17. Water temperature gauge
18. Low engine oil pressure warning light (red)
19. Low alternator recharging warning light (red) (V26)
20. Main fault warning light (red) (V24)
21. Handbrake on and low brake fluid level warning light (red) (V25)
22. Main beam warning light (blue) (V16)
23. Plug preheating warning light (yellow) (diesel versions) (V17)
24. Choke on warning light (yellow) (not used) (V12)
25. Dipped beam headlamps warning light (green) (V11)
26. Water in diesel filter warning light (yellow) (diesel version) (V6)
27. Side lights warning light (green) (V5)
28. Analogue clock

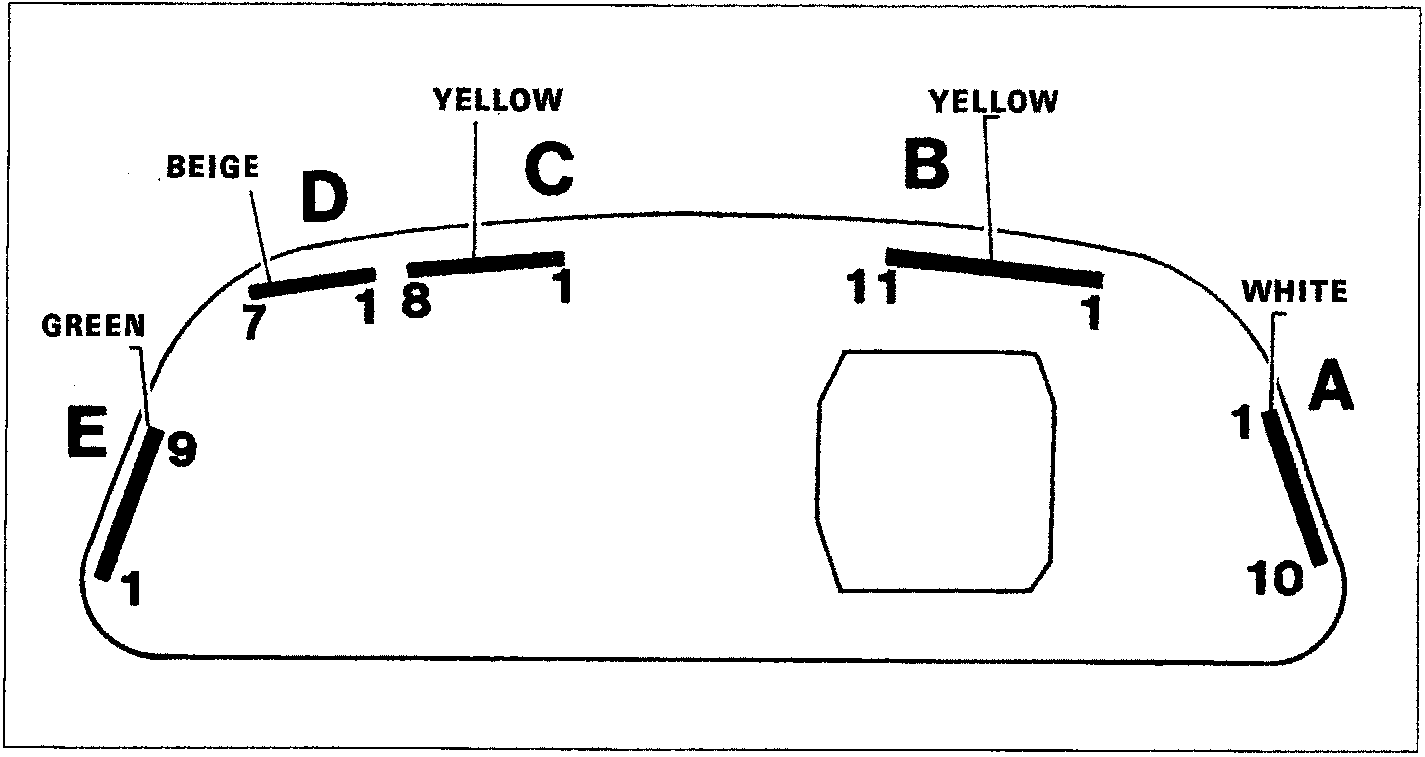

LOCATION OF CONNECTORS ON INSTRUMENT PANEL
