Instrument panel › Removing-refitting
55 Electrical equipmentRemoving-refitting

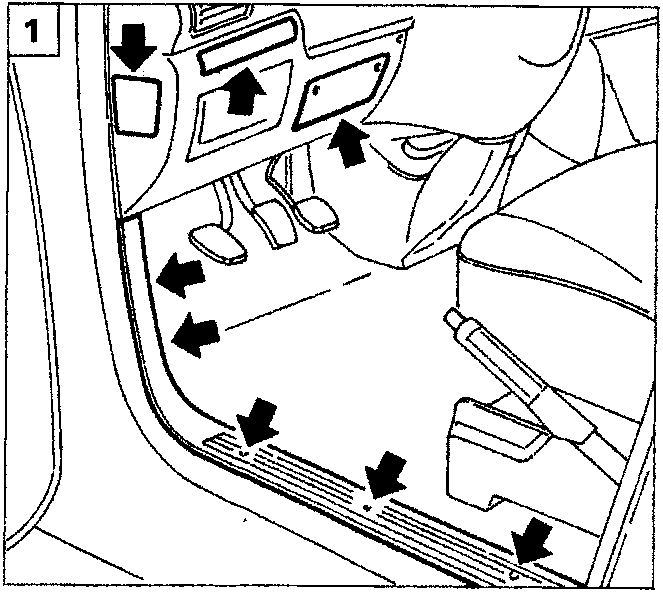

Diagram showing the location of covers and screws on the driver's side footwell area, indicated by arrows.

Removing-refitting

  1. Remove the covers shown in the figure to access the screws securing the dashboard bottom trim on the driver’s side. Remove the heel protection trim panel after undoing the screws indicated.

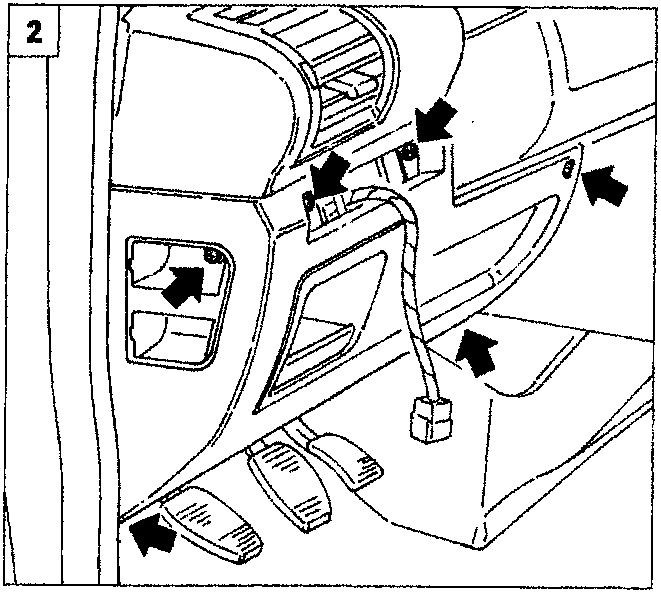

Diagram showing the dashboard bottom trim on the driver's side being removed, with arrows indicating screw locations and the direction of removal.
  1. Undo the screws indicated and remove the dashboard bottom trim on the driver’s side, to access the fuse unit (BF00).

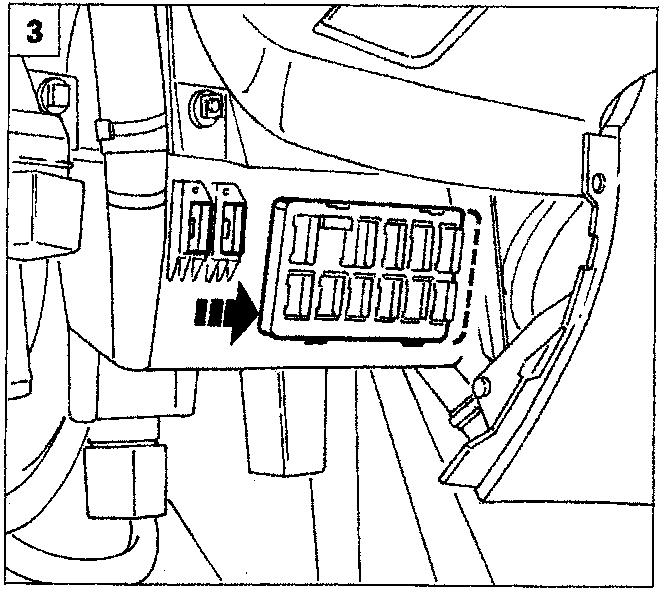

Diagram showing the fuse unit being pushed to the right and withdrawn from its seating, with an arrow indicating the direction of movement.
  1. Push the fuse unit towards the right (with the unit facing the operator) and withdraw it from its seating, disconnect the wiring connections and remove it from the car. To refit, reverse the procedure for removal.
