REMOVING-REFITTING FUEL GAUGE

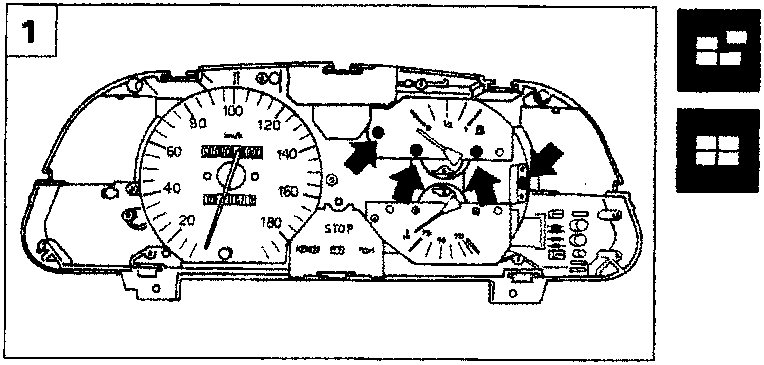

Front view of the instrument panel with arrows indicating screws at the top
  1. Undo the screws (arrowed) located at the top of the instrument panel.

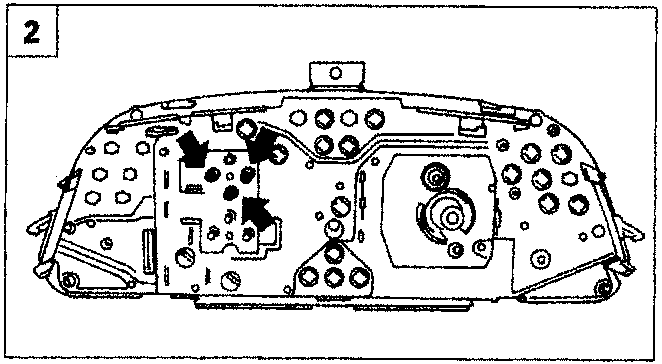

Rear view of the instrument panel showing the fuel gauge and arrowed screws at the bottom
  1. Undo the screws (arrowed) located at the bottom of the instrument panel and remove the fuel gauge.

REMOVING-REFITTING WATER TEMPERATURE GAUGE

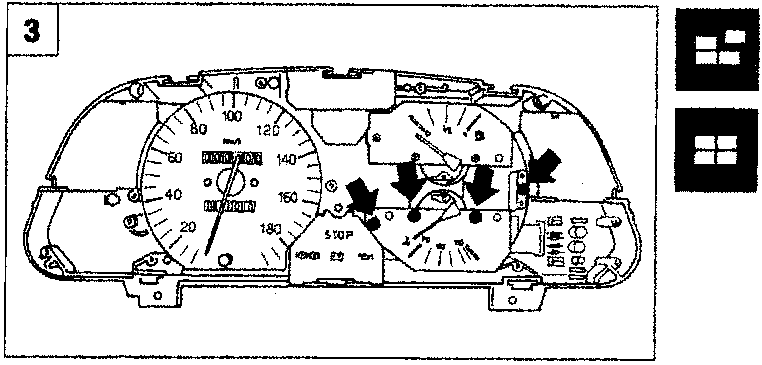

Front view of the instrument panel with arrows indicating screws at the top
  1. Undo the screws (arrowed) located at the top of the instrument panel.

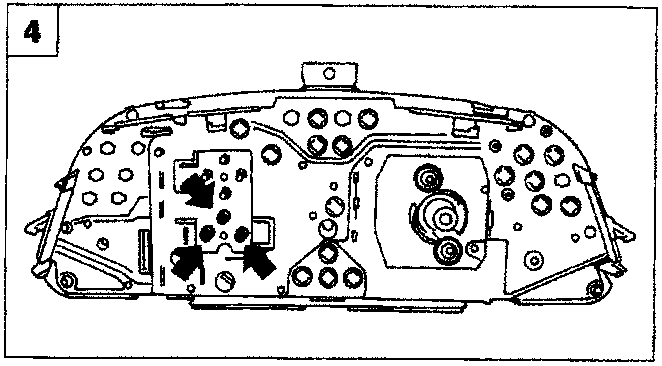

Rear view of the instrument panel showing the water temperature gauge and arrowed screws at the bottom
  1. Undo the screws (arrowed) located at the bottom of the instrument panel and remove the water temperature gauge.
