Instrument panel › Removing-refitting
55 Electrical equipmentRemoving-refitting

REMOVING-REFITTING

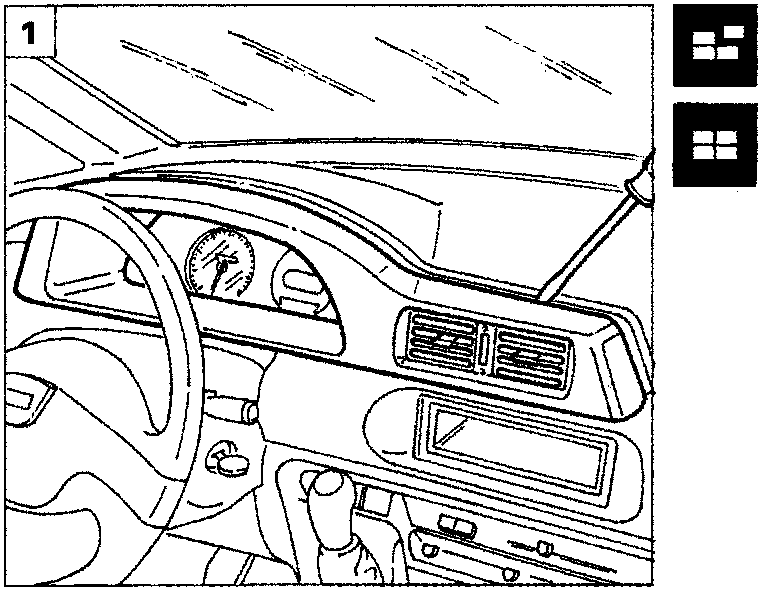

Interior view of the driver's side dashboard showing the instrument panel frame and steering wheel
  1. Using a screwdriver, very carefully remove the frame which is press fitted.

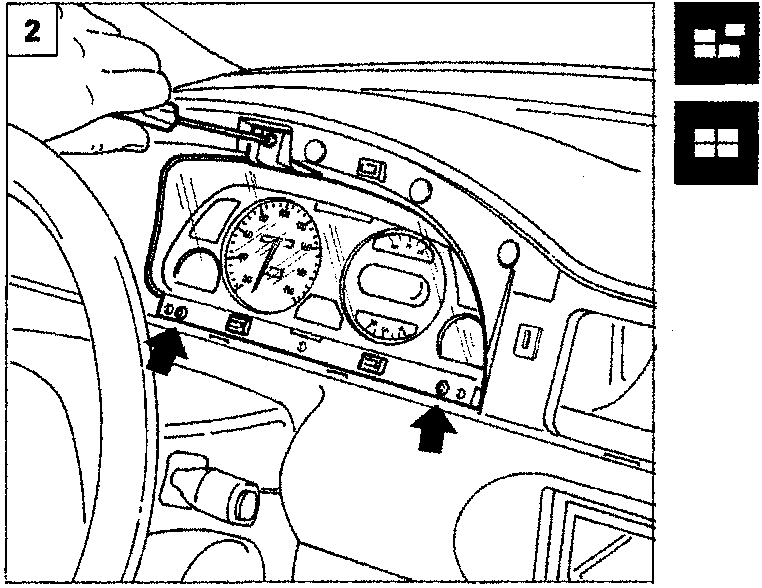

View of the instrument panel with arrows indicating the location of the screws holding it in place
  1. Undo the screws (arrowed) and remove the panel, then disconnect the wiring connections.

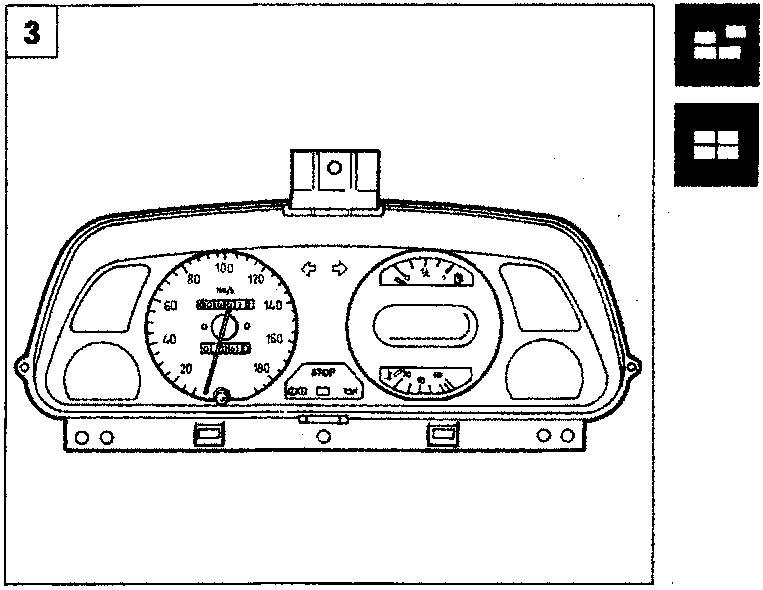

Isolated view of the complete instrument panel cluster showing speedometer, fuel gauge, and warning lights
  1. Remove the instrument panel from the dashboard. To refit, reverse the procedure for removal.
