55 Electrical equipmentRemoving-refitting instrument panel frame

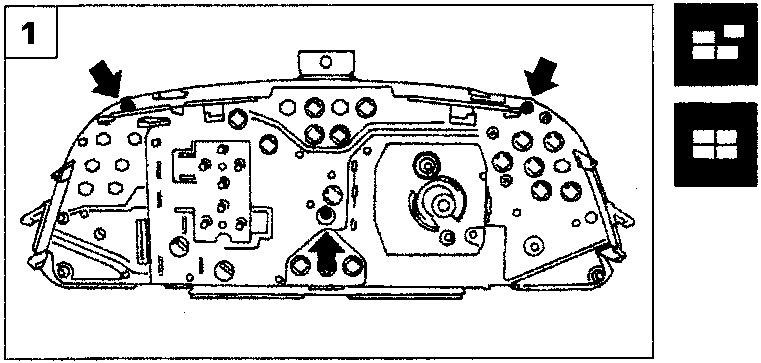

Rear view of the instrument panel frame showing screw locations indicated by arrows

REMOVING-REFITTING INSTRUMENT PANEL FRAME

  1. Undo the screws indicated.

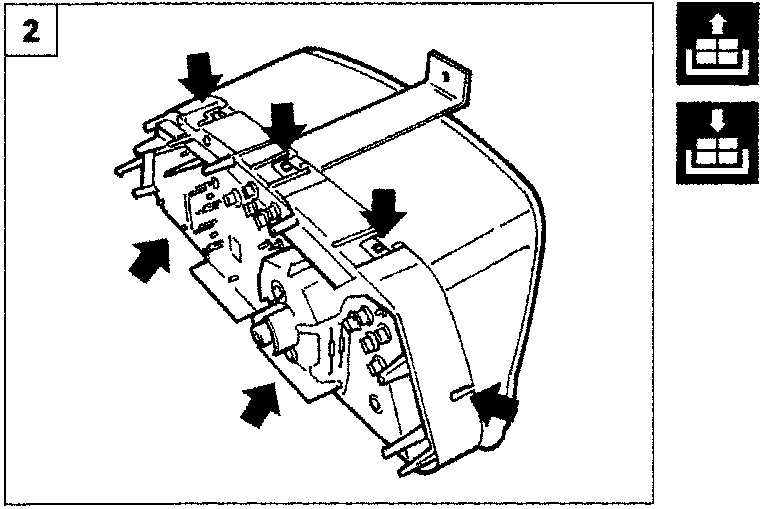

Instrument panel frame being lifted up to release attachment lugs, with arrows indicating lifting points
  1. Lift up the attachment lugs (arrowed) and remove the frame.

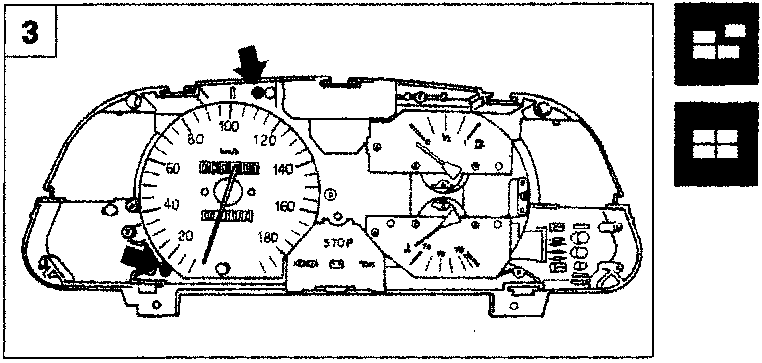

Front view of the instrument panel showing trip recorder-speedometer with a screw location indicated by an arrow at the top

REMOVING-REFITTING TRIP RECORDER-SPEEDOMETER

  1. Undo the screws (arrowed) located at the top of the instrument panel.

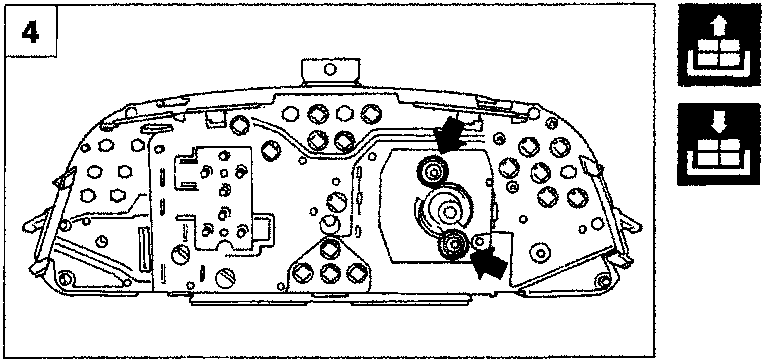

Front view of the instrument panel showing two screw locations for the trip recorder-speedometer indicated by arrows at the bottom
  1. Undo the screws (arrowed) located at the bottom of the instrument panel and remove the trip recorder-speedometer.
