Central locking
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams (98 range, part 2) › Central locking
‹ Prev Location of components on vehicle - Electric front windows (with A.B.S)Next › Location of components on vehicle - Central locking
55 Electrical equipmentCentral locking

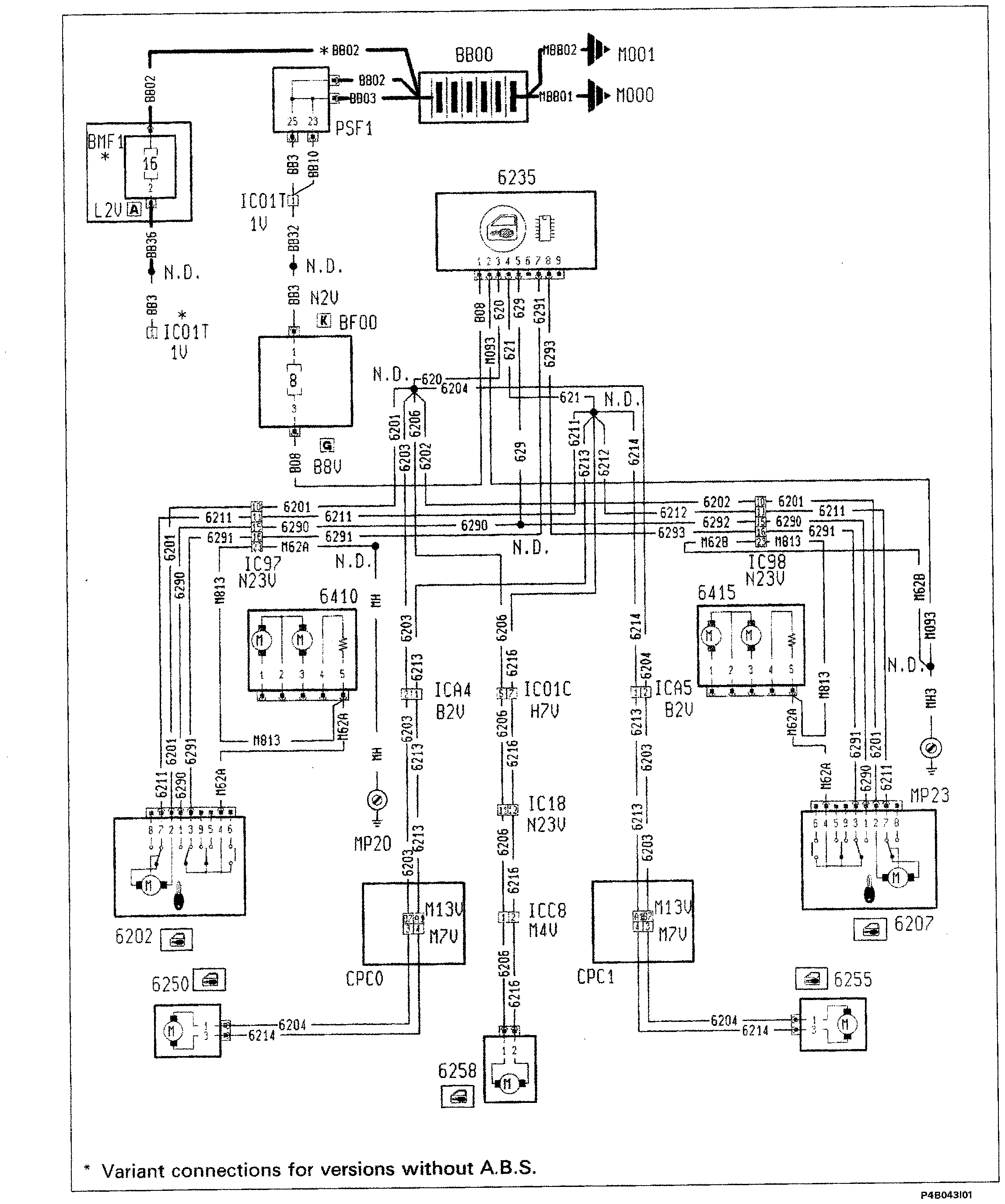

Central locking – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Central locking
* Variant connections for versions without A.B.S.
