Panel connection
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams (98 range, part 2) › Panel connection
‹ Prev Location of components on vehicle - Components keyNext › Location of components - Panel connection
55 Electrical equipmentPanel connection

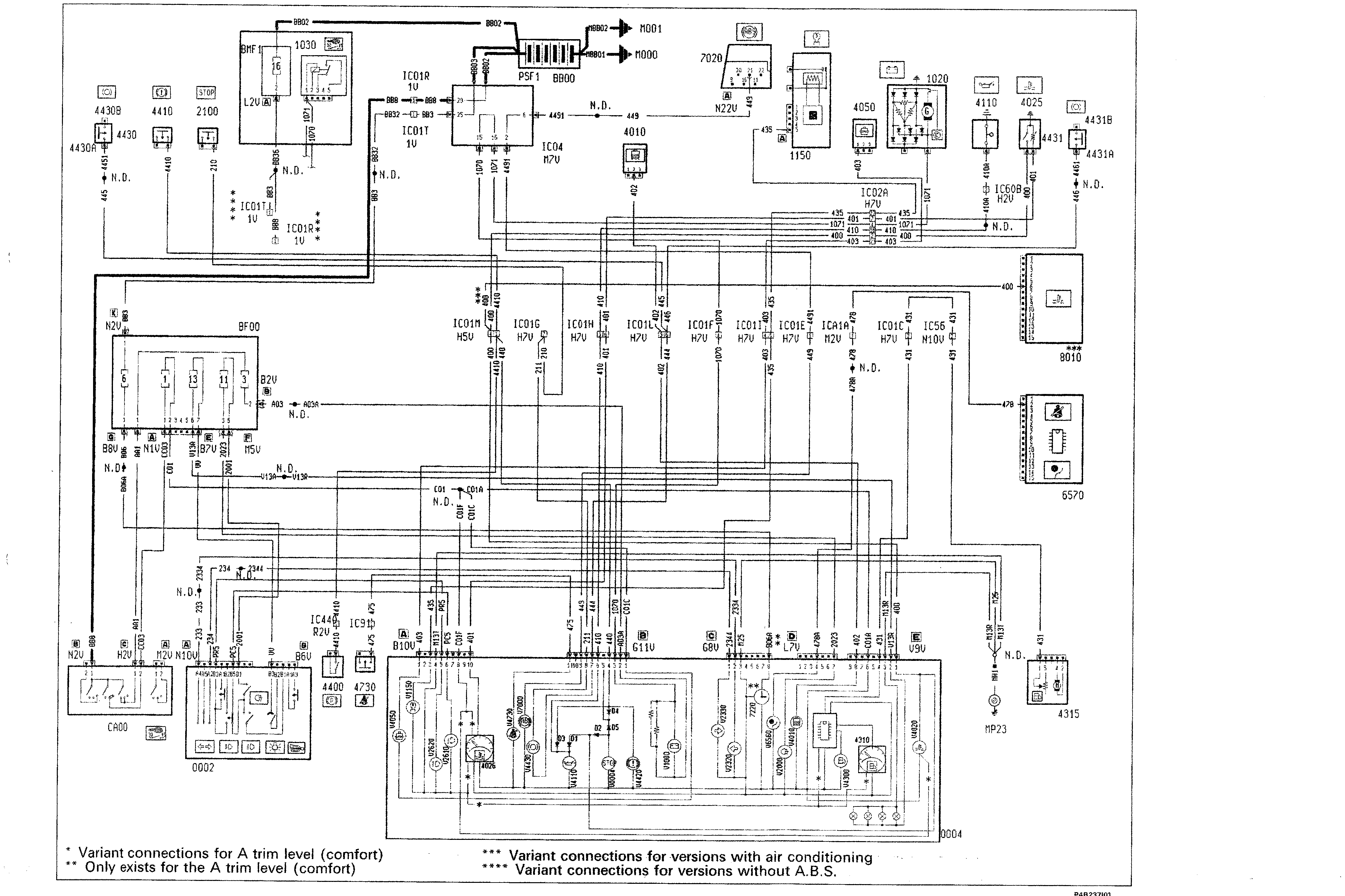

Panel connection
* Variant connections for A trim level (comfort)
*** Variant connections for versions with air conditioning
** Only exists for the A trim level (comfort)
**** Variant connections for versions without A.B.S.
