55 Electrical equipmentHeadlamp alignment - Radio

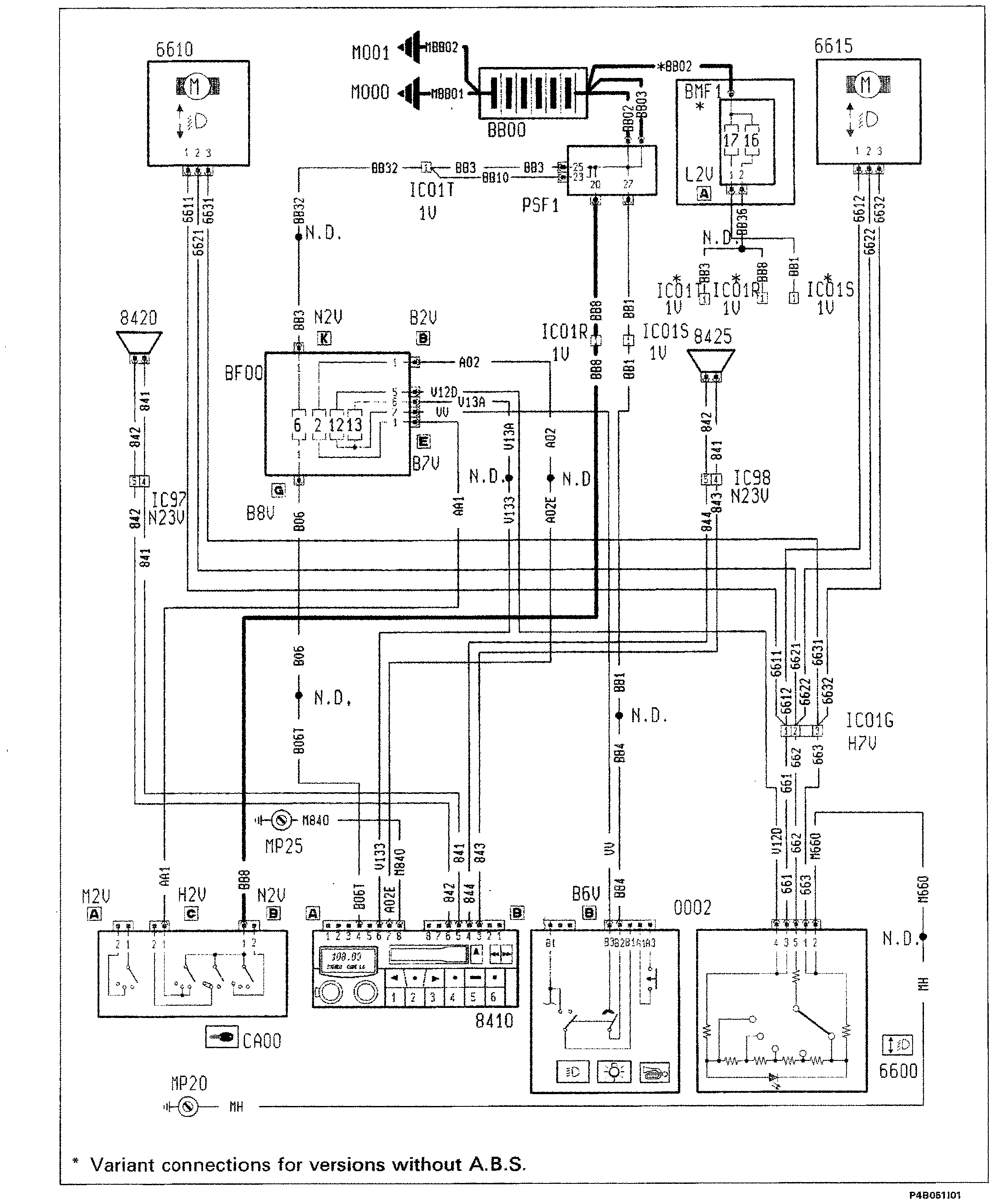

Headlamp alignment - Radio – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Headlamp alignment - Radio
* Variant connections for versions without A.B.S.
