Heated seats
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams (98 range, part 2) › Heated seats
‹ Prev Location of components on vehicle - Heated seats (without A.B.S)Next › Location of components on vehicle - Heated seats (with A.B.S)
55 Electrical equipmentHeated seats

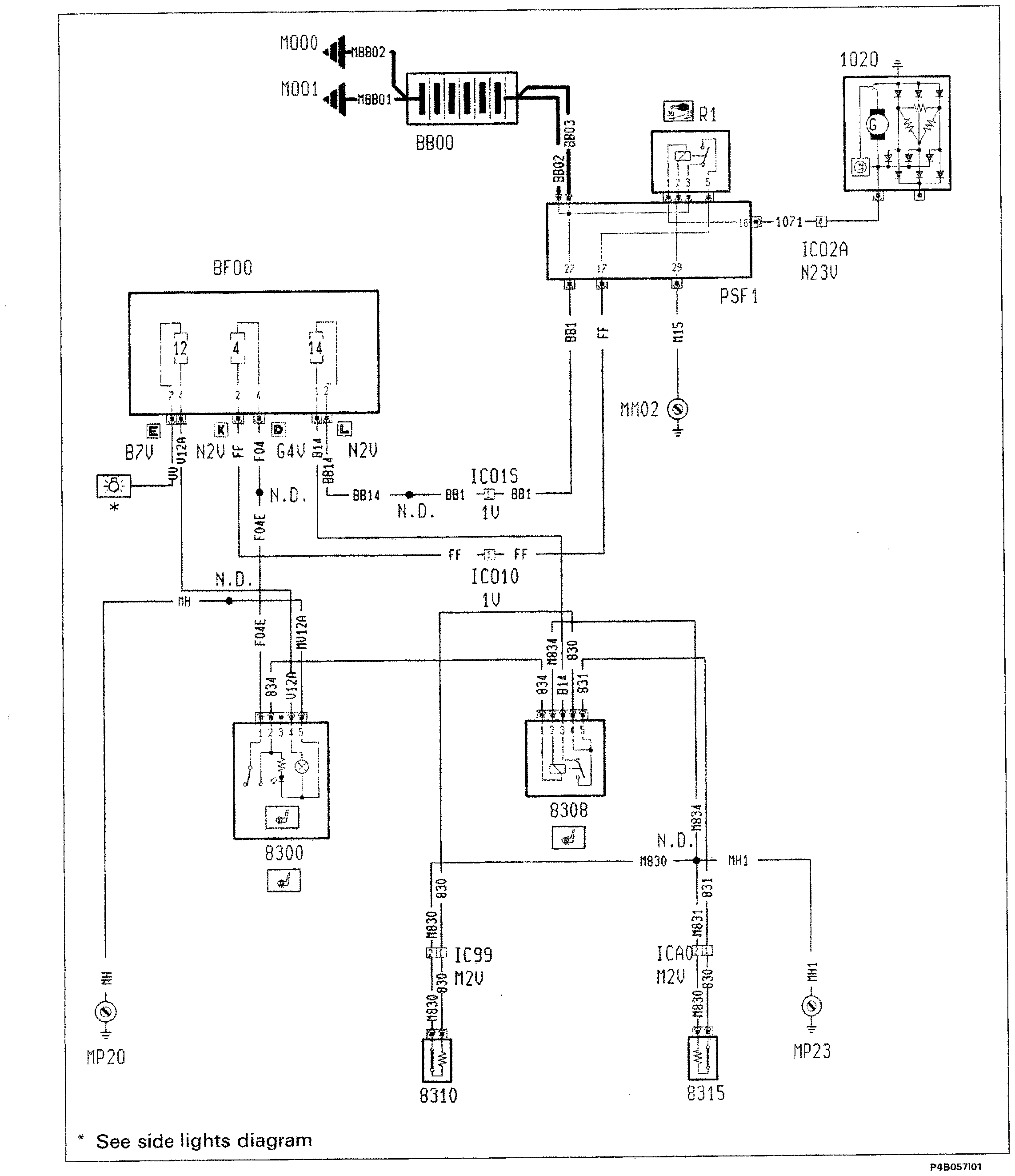

Heated seats – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Heated seats
* See side lights diagram
