55 Electrical equipmentPanel connections

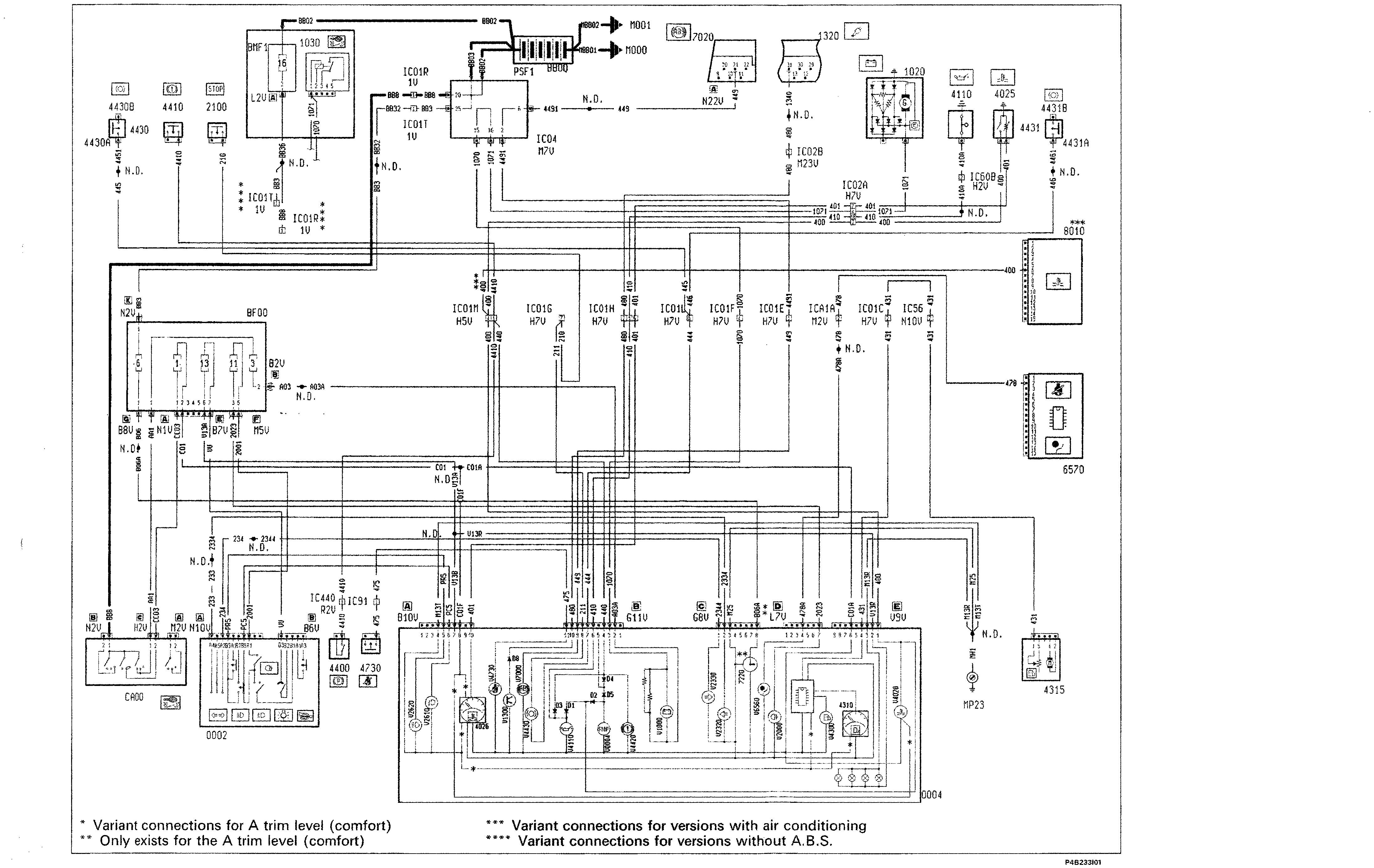

Panel connections
* Variant connections for A trim level (comfort)
** Only exists for the A trim level (comfort)
*** Variant connections for versions with air conditioning
**** Variant connections for versions without A.B.S.
