A40 Heater plug
- Make
- Fiat
- Model
- Stilo Factory Service Manual
- Year
- 2001–2007
- Section
- Starting - recharging › A40 Heater plug
Connectors and pin-outsA40 Heater plug

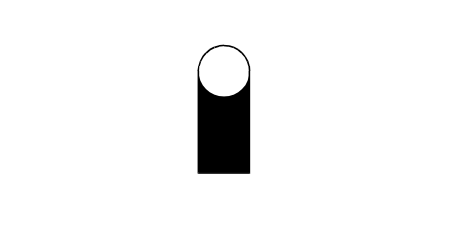

A40 Heater plug
A40A
| Wiring | Colour |
|---|---|
| Connectors |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2,5 | HG | M15B | 1 | ||
A40A – Engine
| Wiring | Colour |
|---|---|
| 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2,5 | V | M15B | 1 | ||
A40B
| Wiring | Colour |
|---|---|
| Connectors |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2,5 | HN | M15B | 2 | ||
A40B – Engine
| Wiring | Colour |
|---|---|
| 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2,5 | G | M15B | 2 | ||
A40C
| Wiring | Colour |
|---|---|
| Connectors |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2,5 | HV | M15B | 3 | ||
A40C – Engine
| Wiring | Colour |
|---|---|
| 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2,5 | R | M15B | 3 | ||
A40D
| Wiring | Colour |
|---|---|
| Connectors |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2,5 | HR | M15B | 4 | ||
A40D – Engine
| Wiring | Colour |
|---|---|
| 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2,5 | L | M15B | 4 | ||
