A10 Alternator
- Make
- Fiat
- Model
- Stilo Factory Service Manual
- Year
- 2001–2007
- Section
- Starting - recharging › A10 Alternator

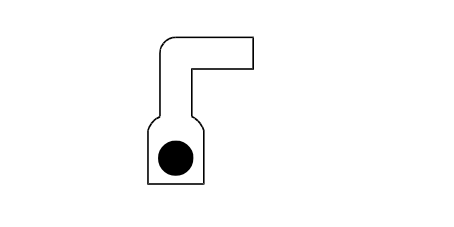

Connectors and pin-outsA10 Alternator
A10 Alternator
A10A – Engine
| Wiring | Colour |
|---|---|
| 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | M | D4A | A06 | ||
| Wiring | Colour |
|---|---|
| 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | HN | D4 | B03 | ||
A10A – Recharging
| Wiring | Colour |
|---|---|
| 45 RECHARGING |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| M | D7 | 1 | |||
A10A – Engine services bridge
| Wiring | Colour |
|---|---|
| 51 ENGINE SERVICES BRIDGE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| M | D24 | 8 | |||
A10B – Recharging
| Wiring | Colour |
|---|---|
| 45 RECHARGING |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 10 | R | A20A | |||
| Wiring | Colour |
|---|---|
| 45 RECHARGING |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 16 | R | A20A | |||
A10B – Engine
| Wiring | Colour |
|---|---|
| 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 10 | R | A20A | |||
