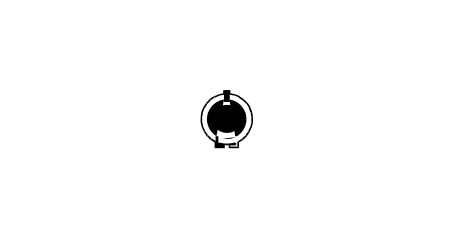

D7 Engine / recharging coupling
| Wiring | Colour |
|---|---|
| 45 RECHARGING | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | M | A10A | |||
| Wiring | Colour |
|---|---|
| 50 ENGINE | GRIGIO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | W | D4A | A6 | ||
