D70 Driver's seat coupling

Make

Fiat

Model

Stilo Factory Service Manual

Year

2001–2007

Section

Intermediate couplings › D70 Driver's seat coupling

Connectors and pin-outsD70 Driver's seat coupling

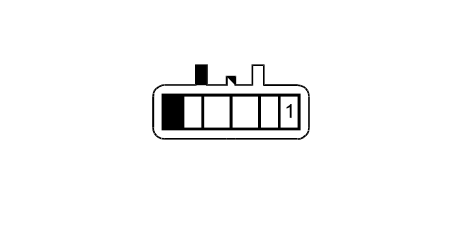

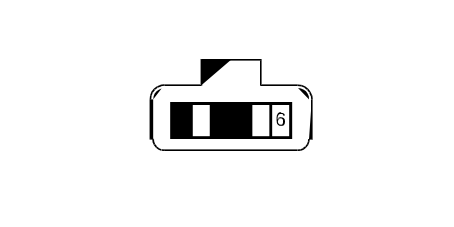

D70 Driver's seat coupling

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		SB		D97H	7
2		HN		B45	7
3	2,5	RG		B45	12
4	2,5	N		C20	8
5		NS		D97I	7
6		N		C15C	6

Wiring	Colour
36 LEFT SEAT	BIANCO
