D81 Injector junction

Make

Fiat

Model

Stilo Factory Service Manual

Year

2001–2007

Section

Intermediate couplings › D81 Injector junction

Connectors and pin-outsD81 Injector junction

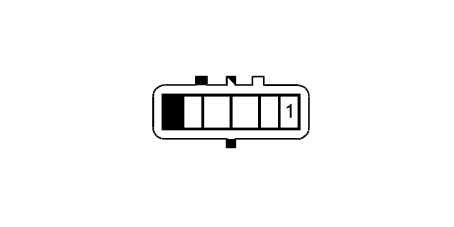

D81 Injector junction

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	HV		M10B	34
2	1	CN		M10B	2
3	1	BV		M10B	18
4	1	MR		M10B	51
5		BN	X	B1C	18
				A30D	3
				A30B	3
				A30C	3
				A30A	3

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	GR		M10B	50
2	1	LR		M10B	34
3	1	MB		B1C	31
5	1	RV		M10B	49
6	1	NR		M10B	33

Wiring	Colour
55 COILS AND FUEL INJECTORS	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HV		N70D	2
2		CN		N70C	2
4		MR		N70A	2
3		BV		N70B	2
5		MB	X	N70A	1
				N70B	1
				N70C	1
				N70D	1

1.6 16v

Wiring	Colour
55 COILS AND FUEL INJECTORS	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		GR		N70A	2
2		LR		N70B	2
3		MB	X	N70A	1
				N70B	1
				N70C	1
				N70D	1
4		NR		N70C	2
5		RV		N70D	2
