D68 HI system junction

Make

Fiat

Model

Stilo Factory Service Manual

Year

2001–2007

Section

Intermediate couplings › D68 HI system junction

Connectors and pin-outsD68 HI system junction

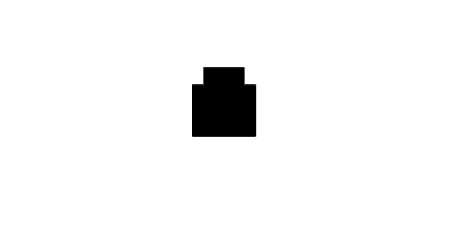

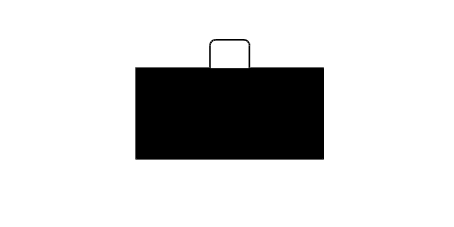

D68 HI system junction

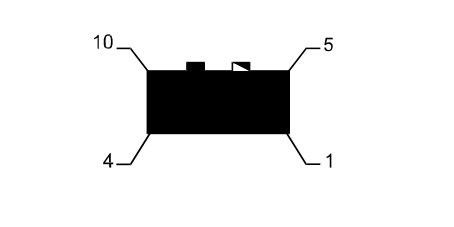

D68A

Hi-Fi

Wiring	Colour
Connectors	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		BV		P70	C7
2		BL		P70	B7
3		BN		P70	C5
4		AL		P70	B5
5		BM		P70	C4
6		CB		P70	B4
7		BR		P70	C6
8		AV		P70	B6
9		BH		P70	C2
10		B		P70	C3

D68A – Facia

Hi-Fi

Wiring	Colour
20 FACIA	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	S		P20B	5
2	1,5	V		P20B	6
3	1,5	Z		P20B	7
4	1,5	CA		P20B	8
5	1,5	M		P20B	1
6	1,5	MB		P20B	2
7	1,5	H		P20B	3
8	1,5	M		P20B	4
9		CB		P20C	6
10		B		P20A	2

D68B

Hi-Fi

Wiring	Colour
Connectors	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	CV		P70	A6
2	1,5	AG		P70	A7
3	1,5	H		P70	A2
4	1,5	M		P70	A3
5	1,5	AN		P70	B2
6	1,5	AR		P70	B3
7	1,5	S		P70	A4
8	1,5	CN		P70	A5

D68B – Rear

3 doors, Hi-Fi

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	CN		D31	24
2	1,5	AG		D31	25
3	1,5	BN		P30	1
4	1,5	NL		P30	2
5	1,5	HR		P31	2
6	1,5	RB		P31	1
7	1,5	AR		D30	25
8	1,5	BG		D30	24

5 doors, Hi-Fi

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	CN		D31	24
2	1,5	AG		D31	25
3	1,5	BN		D35
4	1,5	NL		D35
5	1,5	HR		D36
6	1,5	RB		D36
7	1,5	AR		D30	25
8	1,5	BG		D30	24

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	AR		D30	25
2	1,5	BG		D30	24
3	1,5	BN		P30	1
4	1,5	NL		P30	2
5	1,5	HR		P31	2
6	1,5	RB		P31	1
7	1,5	CN		D31	24
8	1,5	AG		D31	25

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	AR		D30	25
2	1,5	BG		D30	24
3	1,5	BN		D35
4	1,5	NL		D35
5	1,5	HR		D36
6	1,5	RB		D36
7	1,5	CN		D31	24
8	1,5	AG		D31	25

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	AR		D30	29
2	1,5	BG		D30	28
3	1,5	BN		P30	1
4	1,5	NL		P30	2
5	1,5	HR		P31	2
6	1,5	RB		P31	1
7	1,5	CN		D31	28
8	1,5	AG		D31	29

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	AR		D30	29
2	1,5	BG		D30	28
3	1,5	BN		D35
4	1,5	NL		D35
5	1,5	HR		D36
6	1,5	RB		D36
7	1,5	CN		D31	28
8	1,5	AG		D31	29

D68C

Hi-Fi

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	2,5	R		P70	C8
B	2,5	N		P70	C1

D68C – Rear

Hi-Fi

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	2,5	R		B45	9
B	2,5	N		C30	16
