P20 Car radio

Make

Fiat

Model

Stilo Factory Service Manual

Year

2001–2007

Section

Various consumers › P20 Car radio

Connectors and pin-outsP20 Car radio

P20 Car radio

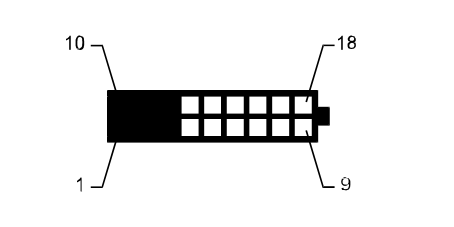

P20A – Facia

Wiring	Colour
20 FACIA	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		BS		B2H	5
2		B		D41	10
3		NS		B2H	17
4		L		D97Q	6
7	1,5	R		B2H	7
8	2,5	N		C15A	3

P20B – Facia

Wiring	Colour
20 FACIA	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	M		D41	5
2	1,5	MB		D41	6
3	1,5	H		D41	7
4	1,5	M		D41	8
5	1,5	S		D41	1
6	1,5	V		D41	2
7	1,5	Z		D41	3
8	1,5	CA		D41	4

Wiring	Colour
20 FACIA	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	M		D68A	5
2	1,5	MB		D68A	6
3	1,5	H		D68A	7
4	1,5	M		D68A	8
5	1,5	S		D68A	1
6	1,5	V		D68A	2
7	1,5	Z		D68A	3
8	1,5	CA		D68A	4

P20C – Facia

Wiring	Colour
20 FACIA	AZZURRO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
6		CB		D41	9

P20E – Facia

Wiring	Colour
20 FACIA	GIALLO

P20F – Facia

Wiring	Colour
20 FACIA	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
6		BL		P27	2
7		B		P27	4
8		V		P27	5
9		CB		D20	10
12		NZ		C15A	6
13		AV		M60A	5
16		NS	X	P27	1
				P20F	17
17		NS	X	P27	1
				P20F	16
18		NZ		D20	11
