D20 /Rear dashboard coupling

Make

Fiat

Model

Stilo Factory Service Manual

Year

2001–2007

Section

Intermediate couplings › D20 /Rear dashboard coupling

Connectors and pin-outsD20 /Rear dashboard coupling

D20 /Rear dashboard coupling

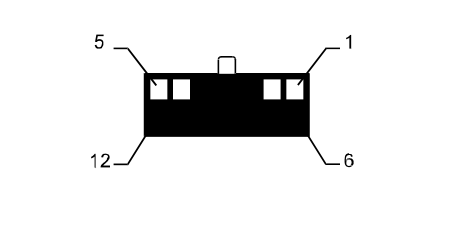

Wiring	Colour
20 FACIA	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		AN		D97Q	3
2		AG		M1H	23
3		LG	X	B2H	6
				M60A	12
4		HL		P78	2
5		LR		P78	1
6		B		M60A	13
7		H		M60A	14
8		M		M60A	15
9		S		M60A	16
10		CB		P20F	9
11		NZ		P20F	18
12		AB		E50C

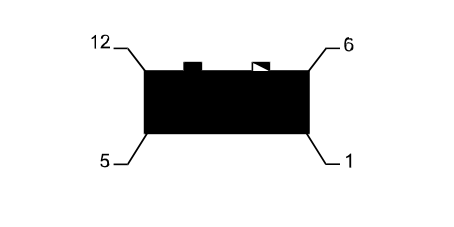

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		AN		H35	1
2		AG		D45	7
3		L		K65	1
4		HL		M64	42
5		LR		M64	41
6		B		Q23	1
7		H		Q23	2
8		M		Q22	1
9		S		Q22	2
10		CB		P26	1
11		AL		P26	2
12		AB		M60	23
