D45 Sunroof connection

Make

Fiat

Model

Stilo Factory Service Manual

Year

2001–2007

Section

Intermediate couplings › D45 Sunroof connection

Connectors and pin-outsD45 Sunroof connection

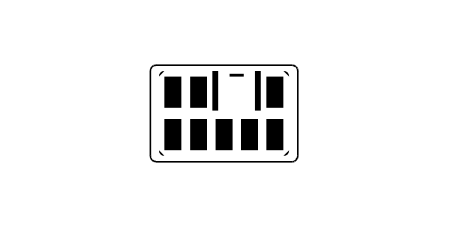

D45 Sunroof connection

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	R		B2D	4
2	1,5	N		C20	15
3	1,5	R		B2D	3
4	1,5	N		C20	5
5		BV		M1D	10
6		LV		D97E	4
7		AG		D20	2

Wiring	Colour
72 SUNROOF	BIANCO

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	R		B2D	4
2	1,5	N		C20	15
3	1,5	R		B2D	3
4	1,5	N		C20	5
5		BV		M1D	10
6		LV		D97E	4
7		AG		D20	2

Wiring	Colour
72 SUNROOF	NERO
