D24 Engine coupling/ i.e.

Make

Fiat

Model

Stilo Factory Service Manual

Year

2001–2007

Section

Intermediate couplings › D24 Engine coupling/ i.e.

Connectors and pin-outsD24 Engine coupling/ i.e.

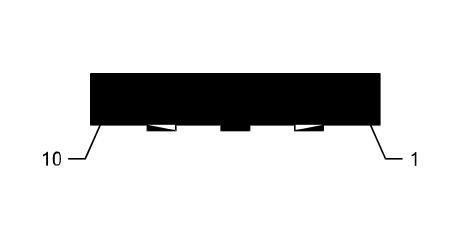

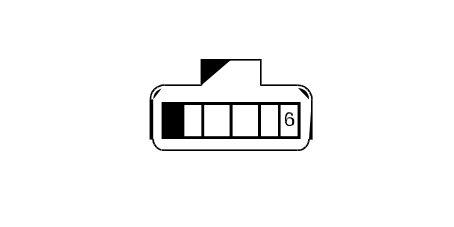

D24 Engine coupling/ i.e.

1.8 16v

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	MN	X	B1C	31
				M10A	3
				M10A	2
				M10A	1
3		MB		B1C	18
4	1	BL	X	K15	4
				K16	4
				K17	4
				B1C	7

Wiring	Colour
51 ENGINE SERVICES BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	R	X	K47	1
				K41	1
3		R		N70A	1
				N70B	1
				N70C	1
				N70D	1
				A30A	3
				A30B	3
				A30C	3
				A30D	3
4		R	X	L15	1
				L10	1
				N76	1
6		RN		K36

2.4 20v

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		M		B1C	18
2		BR		M10A	60
5	1	CN		B1C	4
8		M		D4A
9	1	BL	X	B1C	7
				K41	2
10		MB		B1C	17

Wiring	Colour
51 ENGINE SERVICES BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	V	X	A30A	3
				A30B	3
				A30C	3
				A30D	3
				A30E	3
				N70A	1
				N70B	1
				N70C	1
				N70D	1
				N70E	1
2		HG		K30
3		H		K36
4	1,5	M		C40
5		V		L20	2
8		H		A10A
9		L	X	K15	4
				L10	1
				N76	1
				L15	2
				K17	4
10	1,5	RV		A20B
