A30 Ignition coil

Make

Fiat

Model

Stilo Factory Service Manual

Year

2001–2007

Section

Starting - recharging › A30 Ignition coil

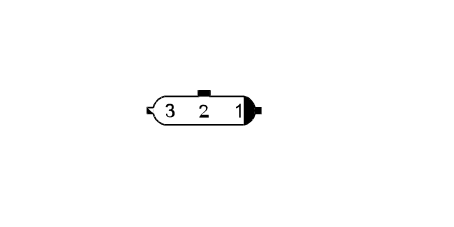

Connectors and pin-outsA30 Ignition coil

A30 Ignition coil

A30A – Engine services bridge

2.4 20v

Wiring	Colour
51 ENGINE SERVICES BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	G		M10B	16
2	1	M	X	C40
				A30B	2
				A30C	2
				A30D	2
				A30E	2
				C60
3	1	G	X	A30B	3
				A30C	3
				A30D	3
				A30E	3
				N70A	1
				N70B	1
				N70C	1
				N70D	1
				N70E	1
				D24	1

1.8 16v

Wiring	Colour
51 ENGINE SERVICES BRIDGE	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		RB		M10B	7
2	1,5	N	X	C40
				A30D	2
				A30C	2
				A30B	2
				M10B	5
				M10B	6
				M10B	32
				M10B	40
				M10B	41
				M10B	44
				M10B	58
3	1,5	R	X	N70A	1
				N70B	1
				N70C	1
				N70D	1
				D24	3
				A30B	3
				A30C	3
				A30D	3

A30A – Engine

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	GN		M10B	32
2	1	NV	X	C40A	1
				A30B	2
				A30D	2
				A30C	2
3	1	BN	X	B1C	18
				D81	5
				A30B	3
				A30C	3
				A30D	3

1.6 16v

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	BL		M10B	17
2	1	NV	X	C40B	1
				A30C	2
				A30B	2
				A30D	2
3	1	BV	X	B1C	32
				A30C	3
				A30B	3
				A30D	3

A30B – Engine services bridge

2.4 20v

Wiring	Colour
51 ENGINE SERVICES BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	V		M10B	32
2	1	M	X	C40
				A30A	2
				A30C	2
				A30D	2
				A30E	2
				C60
3	1	G	X	A30A	3
				A30C	3
				A30D	3
				A30E	3
				N70A	1
				N70B	1
				N70C	1
				N70D	1
				N70E	1
				D24	1

1.8 16v

Wiring	Colour
51 ENGINE SERVICES BRIDGE	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		VB		M10B	8
2	1,5	N	X	C40
				A30D	2
				A30C	2
				A30A	2
				M10B	5
				M10B	6
				M10B	32
				M10B	40
				M10B	41
				M10B	44
				M10B	58
3	1,5	R	X	N70A	1
				N70B	1
				N70C	1
				N70D	1
				D24	3
				A30A	3
				A30C	3
				A30D	3

A30B – Engine

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	BM		M10B	16
2	1	NV	X	C40A	1
				A30D	2
				A30C	2
				A30A	2
3	1	BN	X	B1C	18
				D81	5
				A30C	3
				A30D	3
				A30A	3

1.6 16v

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	BM		M10B	19
2	1	NV	X	C40B	1
				A30D	2
				A30C	2
				A30A	2
3	1	BV	X	B1C	32
				A30D	3
				A30C	3
				A30A	3

A30C – Engine services bridge

2.4 20v

Wiring	Colour
51 ENGINE SERVICES BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	G		M10B	14
2	1	M	X	C40
				A30A	2
				A30B	2
				A30D	2
				A30E	2
				C60
3	1	G	X	A30A	3
				A30B	3
				A30D	3
				A30E	3
				N70A	1
				N70B	1
				N70C	1
				N70D	1
				N70E	1
				D24	1

1.8 16v

Wiring	Colour
51 ENGINE SERVICES BRIDGE	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		M		M10B	9
2	1,5	N	X	C40
				A30D	2
				A30A	2
				A30B	2
				M10B	5
				M10B	6
				M10B	32
				M10B	40
				M10B	41
				M10B	44
				M10B	58
3	1,5	R	X	N70A	1
				N70B	1
				N70C	1
				N70D	1
				D24	3
				A30B	3
				A30A	3
				A30D	3

A30C – Engine

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	LN		M10B	31
2	1	NV	X	C40A	1
				A30A	2
				A30B	2
				A30D	2
3	1	BN	X	B1C	18
				D81	5
				A30D	3
				A30B	3
				A30A	3

1.6 16v

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	CR		M10B	3
2	1	NV	X	C40B	1
				A30D	2
				A30B	2
				A30A	2
3	1	BV	X	B1C	32
				A30D	3
				A30B	3
				A30A	3

A30D – Engine services bridge

2.4 20v

Wiring	Colour
51 ENGINE SERVICES BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	G		M10B	15
2	1	M	X	C40
				A30A	2
				A30B	2
				A30C	2
				A30E	2
				C60
3	1	G	X	A30A	3
				A30B	3
				A30C	3
				A30E	3
				N70A	1
				N70B	1
				N70C	1
				N70D	1
				N70E	1
				D24	1

1.8 16v

Wiring	Colour
51 ENGINE SERVICES BRIDGE	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		AB		M10B	10
2	1,5	N	X	C40
				A30A	2
				A30C	2
				A30B	2
				M10B	5
				M10B	6
				M10B	32
				M10B	40
				M10B	41
				M10B	44
				M10B	58
3	1,5	R	X	N70A	1
				N70B	1
				N70C	1
				N70D	1
				D24	3
				A30B	3
				A30C	3
				A30A	3
				A30C	3

A30D – Engine

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	BL		M10B	15
2	1	NV	X	C40A	1
				A30B	2
				A30C	2
				A30A	2
3	1	BN	X	B1C	18
				D81	5
				A30B	3
				A30C	3
				A30A	3

1.6 16v

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	CN		M10B	1
2	1	NV	X	C40B	1
				A30B	2
				A30A	2
				A30C	2
3	1	BV	X	B1C	32
				A30B	3
				A30A	3
				A30C	3

A30E – Engine services bridge

2.4 20v

Wiring	Colour
51 ENGINE SERVICES BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	V		M10B	31
2	1	M	X	C40
				A30A	2
				A30B	2
				A30C	2
				A30D	2
				C60
3	1	G	X	A30A	3
				A30B	3
				A30C	3
				A30D	3
				N70A	1
				N70B	1
				N70C	1
				N70D	1
				N70E	1
				D24	2
