Wiring diagrams and electrical functions ADDITIONAL HEATER - Wiring diagram
ADDITIONAL HEATER - Wiring diagram

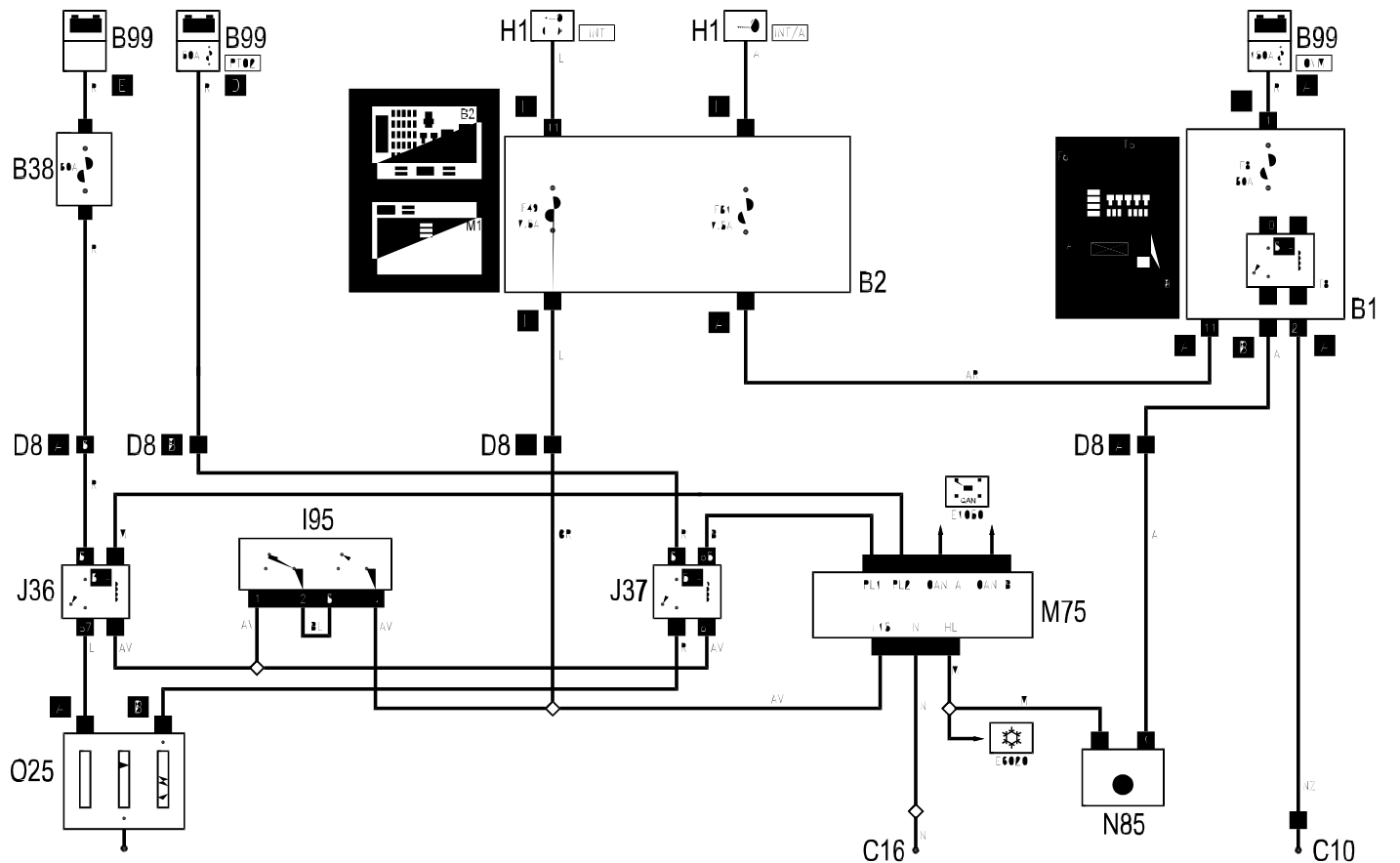

1.9 JTD 8v, 1.9 JTD 16v
Wiring diagram
COMPONENTS
Component code Name Assembly reference B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B38 Additional heater fuse B99 Maxifuse box on battery 5530B C10 Front left earth C16 Air conditioning earth D8 Front coupling / air conditioner - with heating D8 Front/air conditioning - heater coupling H1 Ignition switch 5520A I95 Additional heater safety switch J36 Additional heater relay J37 Additional heater relay - 2 J37 Additional heater relay -2 K79 Air temperature sensor (additional heater)( K79 Air temperature sensor (additional heater)() M70 Climate control system control unit 5040D M74 Additional heater remote control receiver M75 Additional heater control unit M75 Additional heater control unit 5040D N85 Passenger compartment ventilation fan 5040C O25 Additional heater resistor

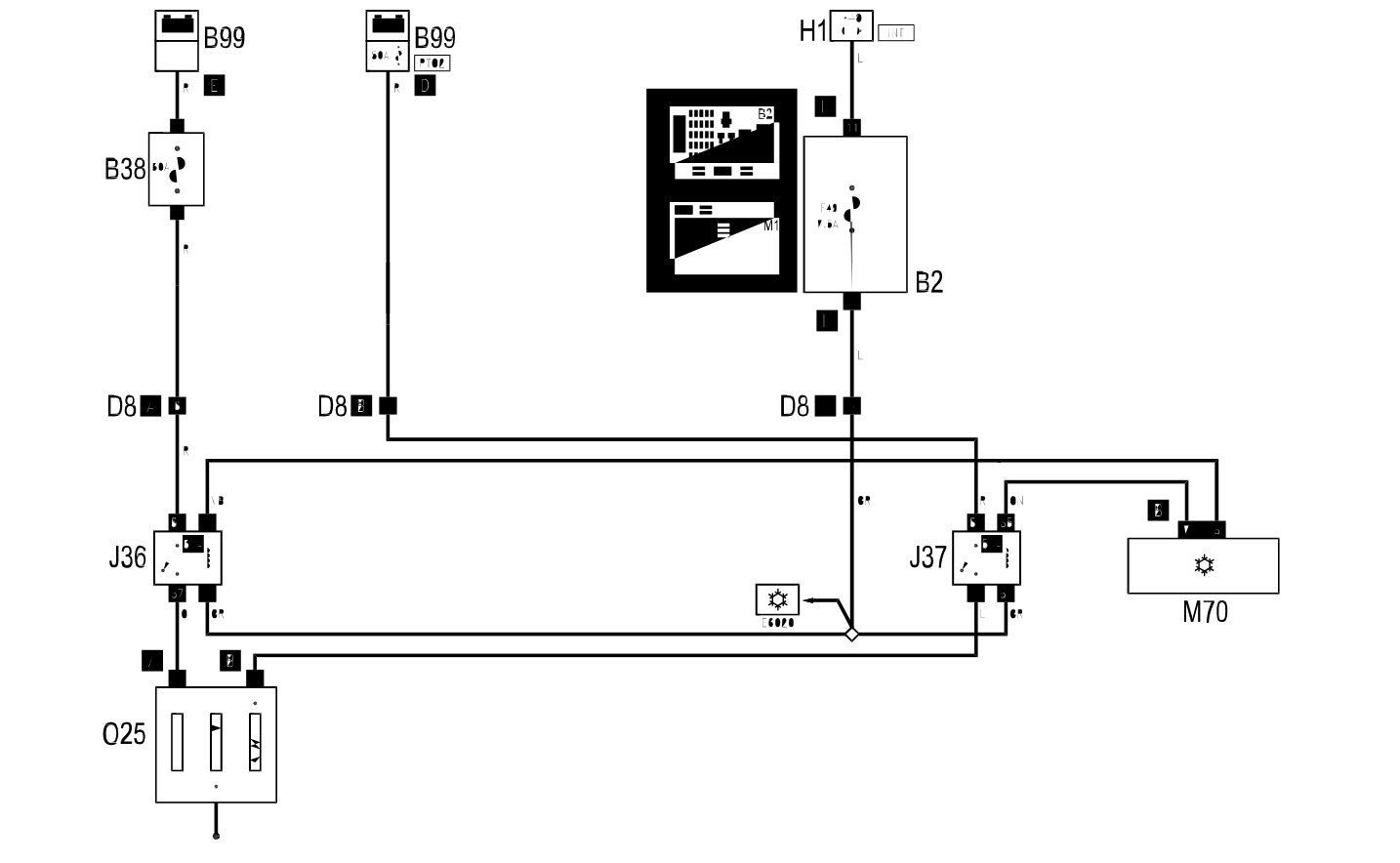

1.9 JTD 8v, 1.9 JTD 16v · Automatic Air Conditioning
Wiring diagram
COMPONENTS
Component code Name Assembly reference B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B38 Additional heater fuse B99 Maxifuse box on battery 5530B C10 Front left earth C16 Air conditioning earth D8 Front coupling / air conditioner - with heating D8 Front/air conditioning - heater coupling H1 Ignition switch 5520A I95 Additional heater safety switch J36 Additional heater relay J37 Additional heater relay - 2 J37 Additional heater relay -2 K79 Air temperature sensor (additional heater)( K79 Air temperature sensor (additional heater)() M70 Climate control system control unit 5040D M74 Additional heater remote control receiver M75 Additional heater control unit M75 Additional heater control unit 5040D N85 Passenger compartment ventilation fan 5040C O25 Additional heater resistor

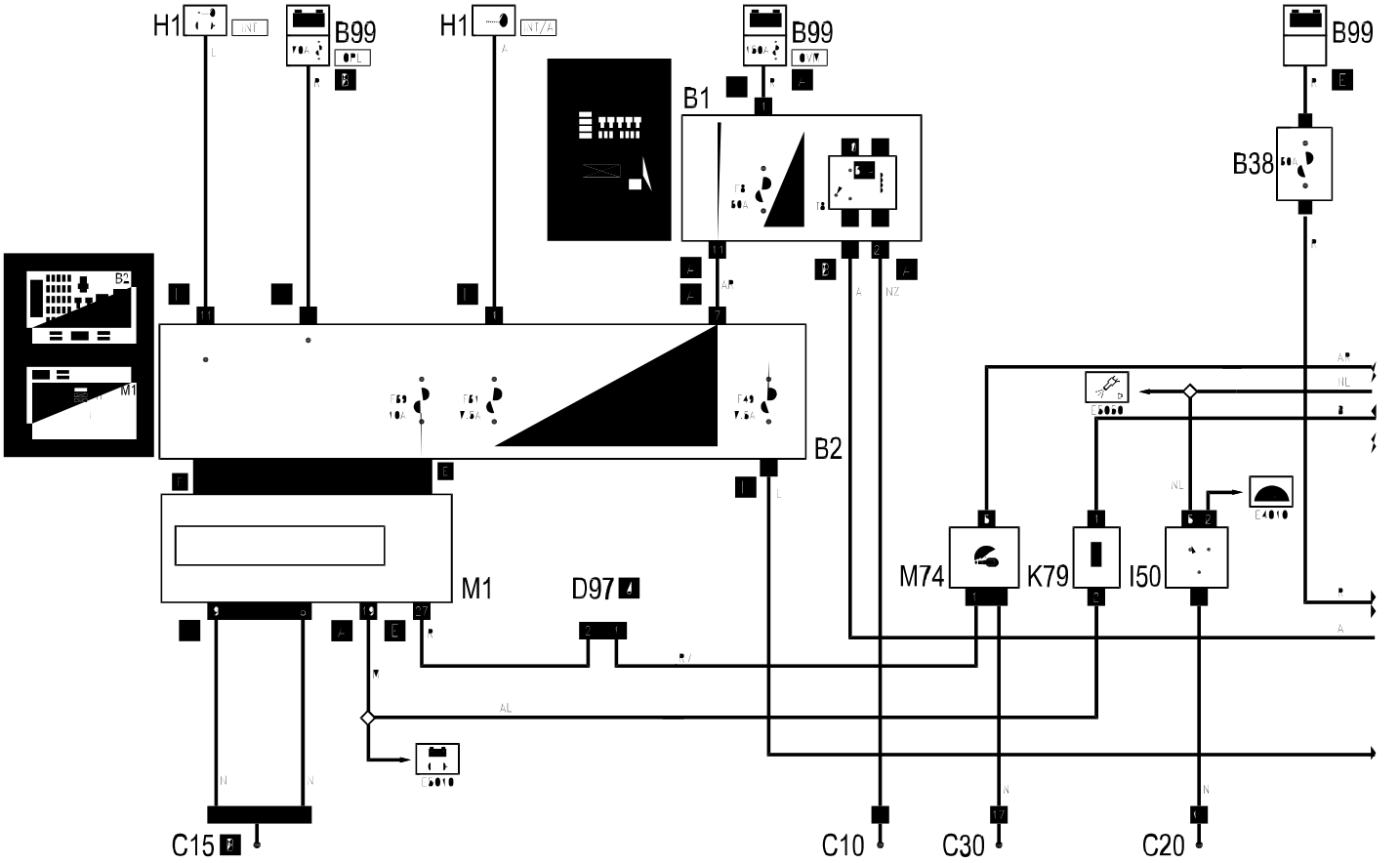

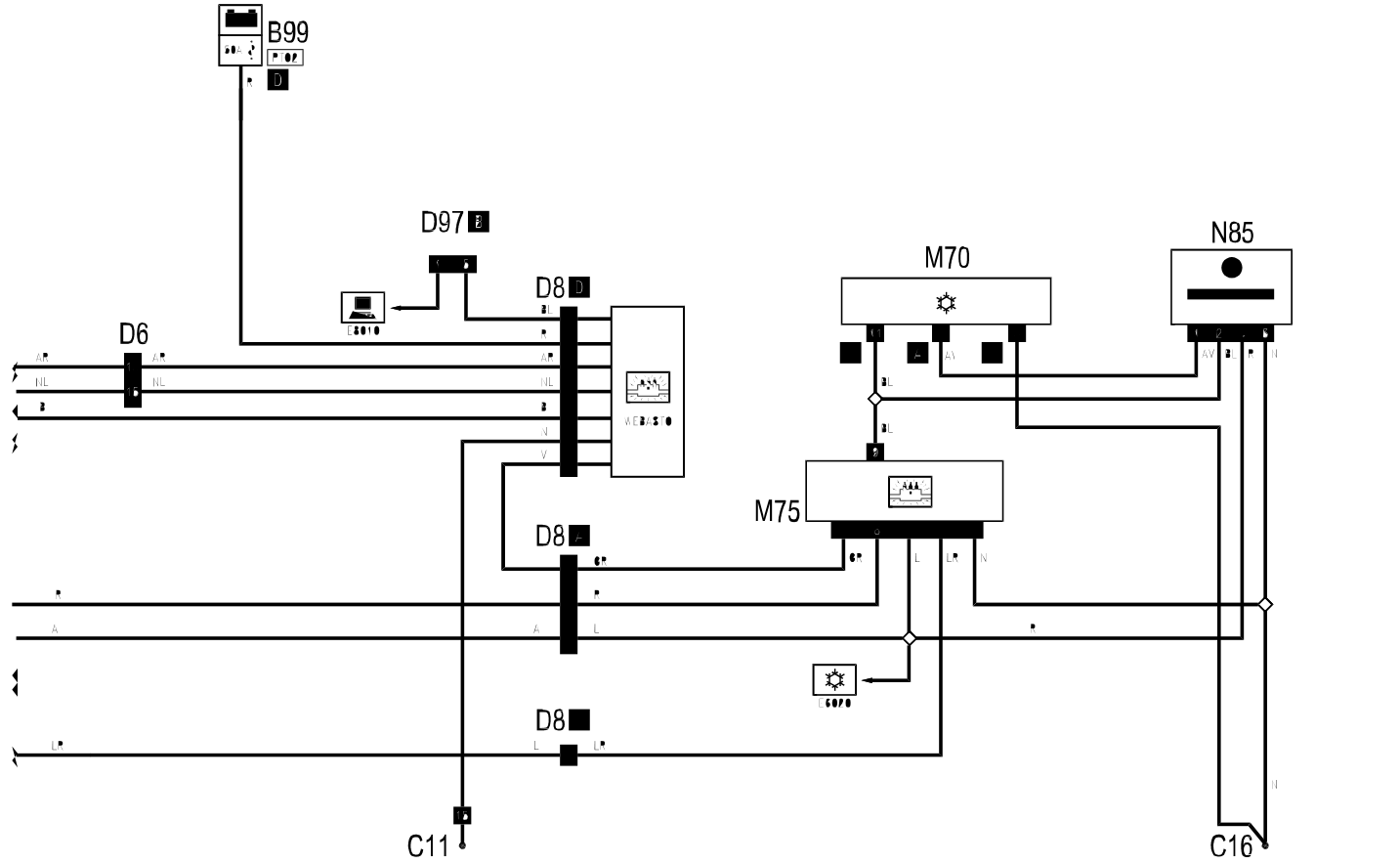

1.9 JTD 8v, 1.9 JTD 16v · Webasto
Wiring diagram
COMPONENTS
Component code Name Assembly reference B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B38 Additional heater fuse B99 Maxifuse box on battery 5530B C10 Front left earth C16 Air conditioning earth D8 Front coupling / air conditioner - with heating D8 Front/air conditioning - heater coupling H1 Ignition switch 5520A I95 Additional heater safety switch J36 Additional heater relay J37 Additional heater relay - 2 J37 Additional heater relay -2 K79 Air temperature sensor (additional heater)( K79 Air temperature sensor (additional heater)() M70 Climate control system control unit 5040D M74 Additional heater remote control receiver M75 Additional heater control unit M75 Additional heater control unit 5040D N85 Passenger compartment ventilation fan 5040C O25 Additional heater resistor
