AIR CONDITIONING - Wiring diagram
- Make
- Fiat
- Model
- Stilo Factory Service Manual
- Year
- 2001–2007
- Section
- Climate control system › AIR CONDITIONING - Wiring diagram
Wiring diagrams and electrical functionsAIR CONDITIONING - Wiring diagram
AIR CONDITIONING - Wiring diagram

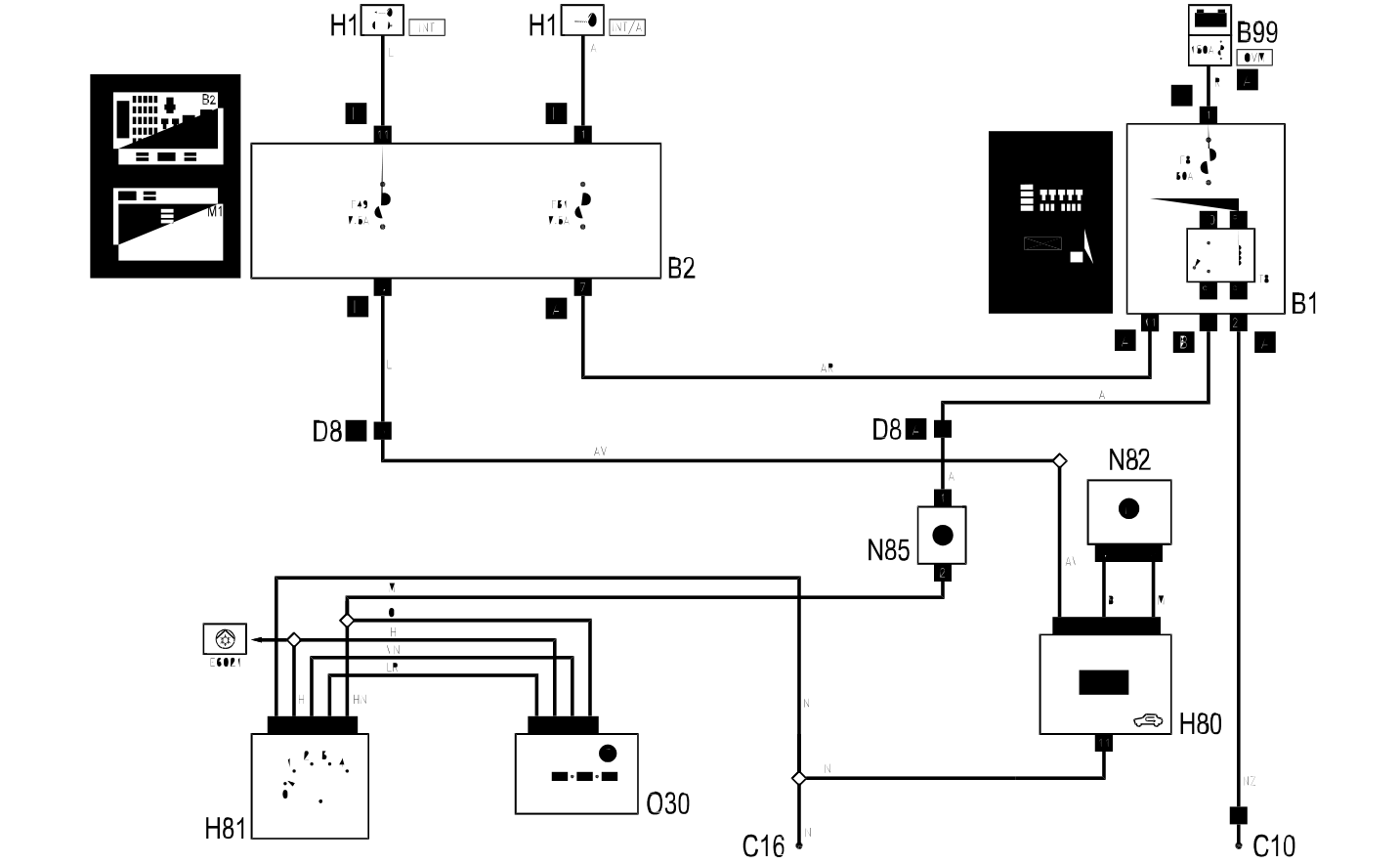

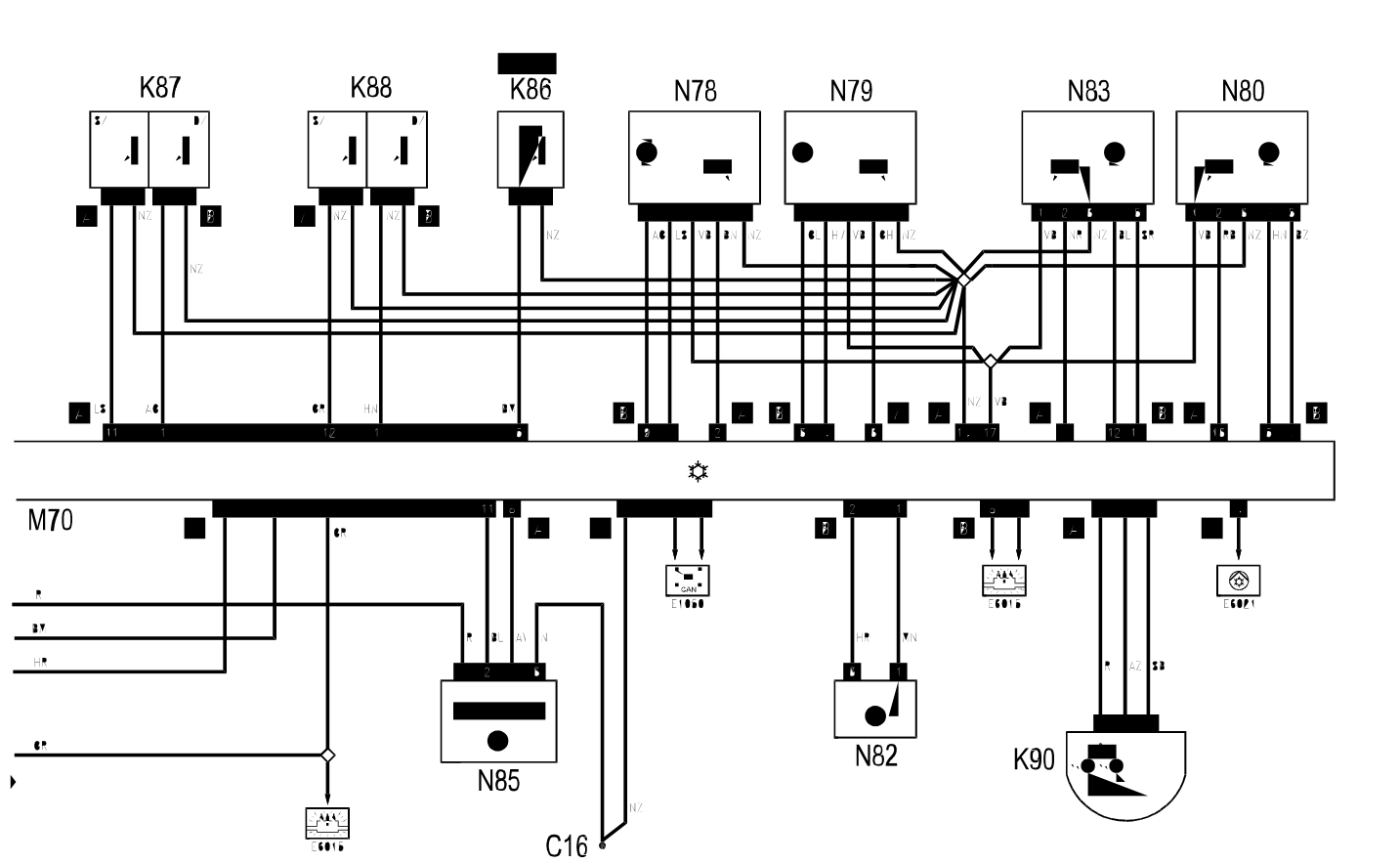

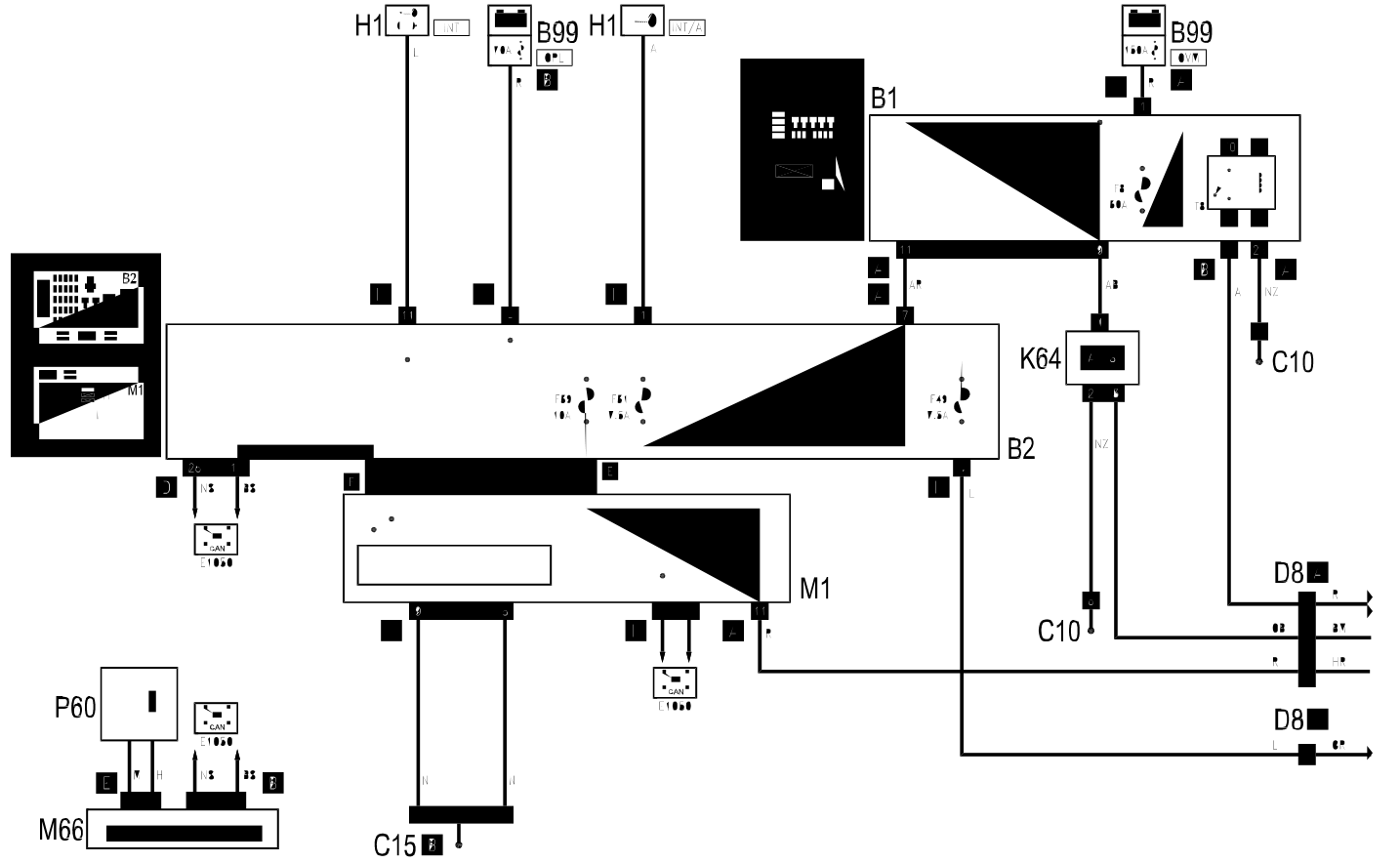

Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| B99 | Maxifuse box on battery | 5530B |
| C10 | Front left earth | |
| C15 | Facia earth, driver's side | |
| C16 | Air conditioning earth | |
| D8 | Front coupling / air conditioner - with heating | |
| D8 | Front/air conditioning - heater coupling | |
| H1 | Ignition switch | 5520A |
| H80 | Climate control controls | 5040D |
| H80 | Climate control system controls | 5040D |
| H81 | Climate control fan control | 5040D |
| K64 | Exhaust gas sensor | 5010D |
| K86 | Frost sensor | |
| K87 | Lower treated air sensor | 5010D |
| K88 | Upper treated air sensor | 5010D |
| K88 | Upper treated air sensor | 5010D |
| K90 | Solar sensor | 5010D |
| M1 | Body computer | 5505A |
| M66 | Driver's door control unit | 5505A |
| M70 | Climate control system control unit | 5040D |
| N78 | Left air mixture flap actuator | 5040D |
| N79 | Right air mixture flap actuator | 5040D |
| N80 | Air distribution actuator | 5040D |
| N82 | Outside / recirculation air intake flap actuator | 5040D |
| N83 | Air distribution - defrost flap actuator | 5040D |
| N83 | Air distribution/defrost flap actuator | 5040D |
| N85 | Passenger compartment ventilation fan | 5040C |
| O30 | Air fan adjustment resistance | |
| O30 | Passenger compartment air fan adjustment resistor | |
| P60 | Driver's external rear view mirror | 7005R |
Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| B99 | Maxifuse box on battery | 5530B |
| C10 | Front left earth | |
| C15 | Facia earth, driver's side | |
| C16 | Air conditioning earth | |
| D8 | Front coupling / air conditioner - with heating | |
| D8 | Front/air conditioning - heater coupling | |
| H1 | Ignition switch | 5520A |
| H80 | Climate control controls | 5040D |
| H80 | Climate control system controls | 5040D |
| H81 | Climate control fan control | 5040D |
| K64 | Exhaust gas sensor | 5010D |
| K86 | Frost sensor | |
| K87 | Lower treated air sensor | 5010D |
| K88 | Upper treated air sensor | 5010D |
| K88 | Upper treated air sensor | 5010D |
| K90 | Solar sensor | 5010D |
| M1 | Body computer | 5505A |
| M66 | Driver's door control unit | 5505A |
| M70 | Climate control system control unit | 5040D |
| N78 | Left air mixture flap actuator | 5040D |
| N79 | Right air mixture flap actuator | 5040D |
| N80 | Air distribution actuator | 5040D |
| N82 | Outside / recirculation air intake flap actuator | 5040D |
| N83 | Air distribution - defrost flap actuator | 5040D |
| N83 | Air distribution/defrost flap actuator | 5040D |
| N85 | Passenger compartment ventilation fan | 5040C |
| O30 | Air fan adjustment resistance | |
| O30 | Passenger compartment air fan adjustment resistor | |
| P60 | Driver's external rear view mirror | 7005R |
