SUPPLY - Wiring diagram

Passive entry

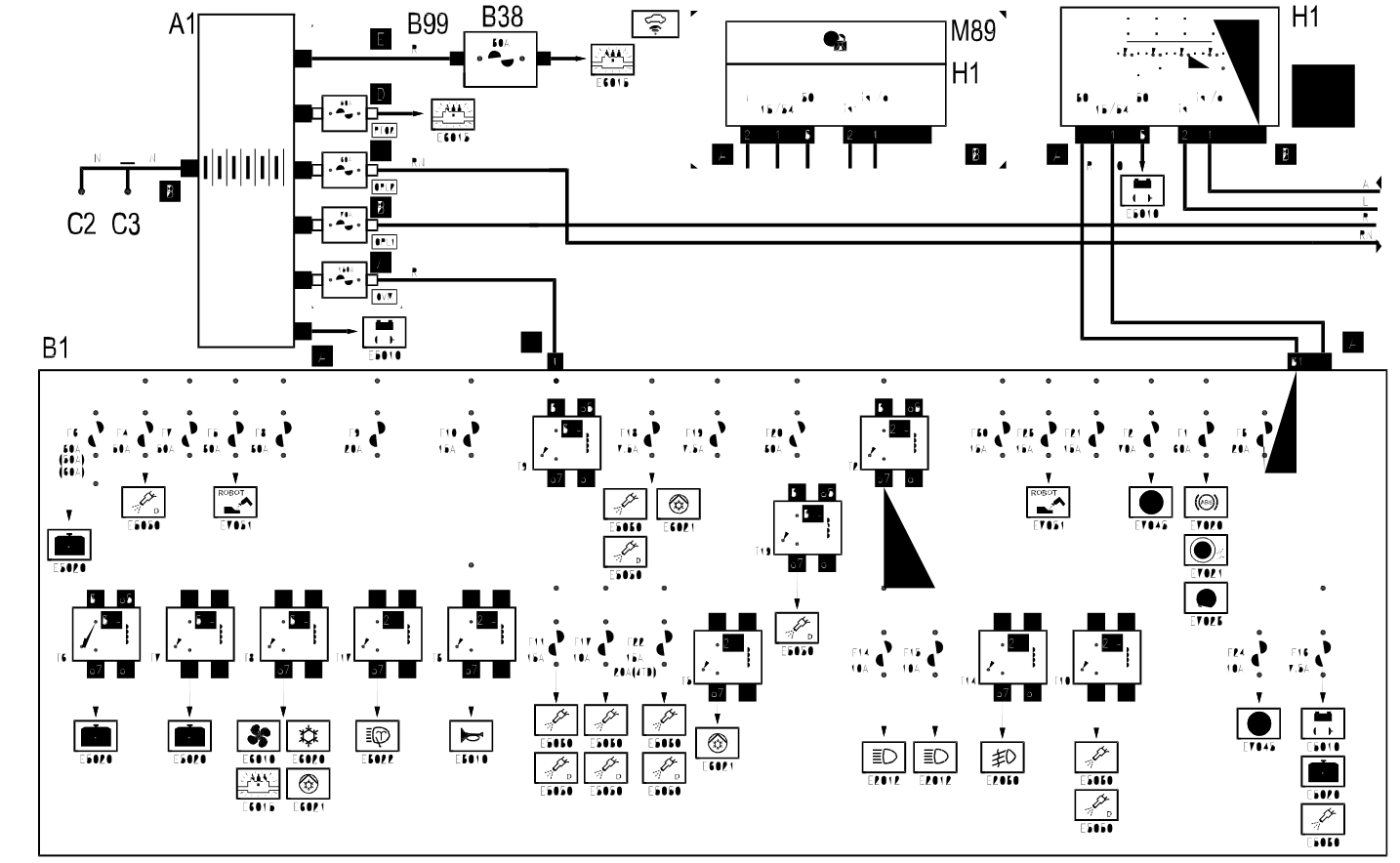

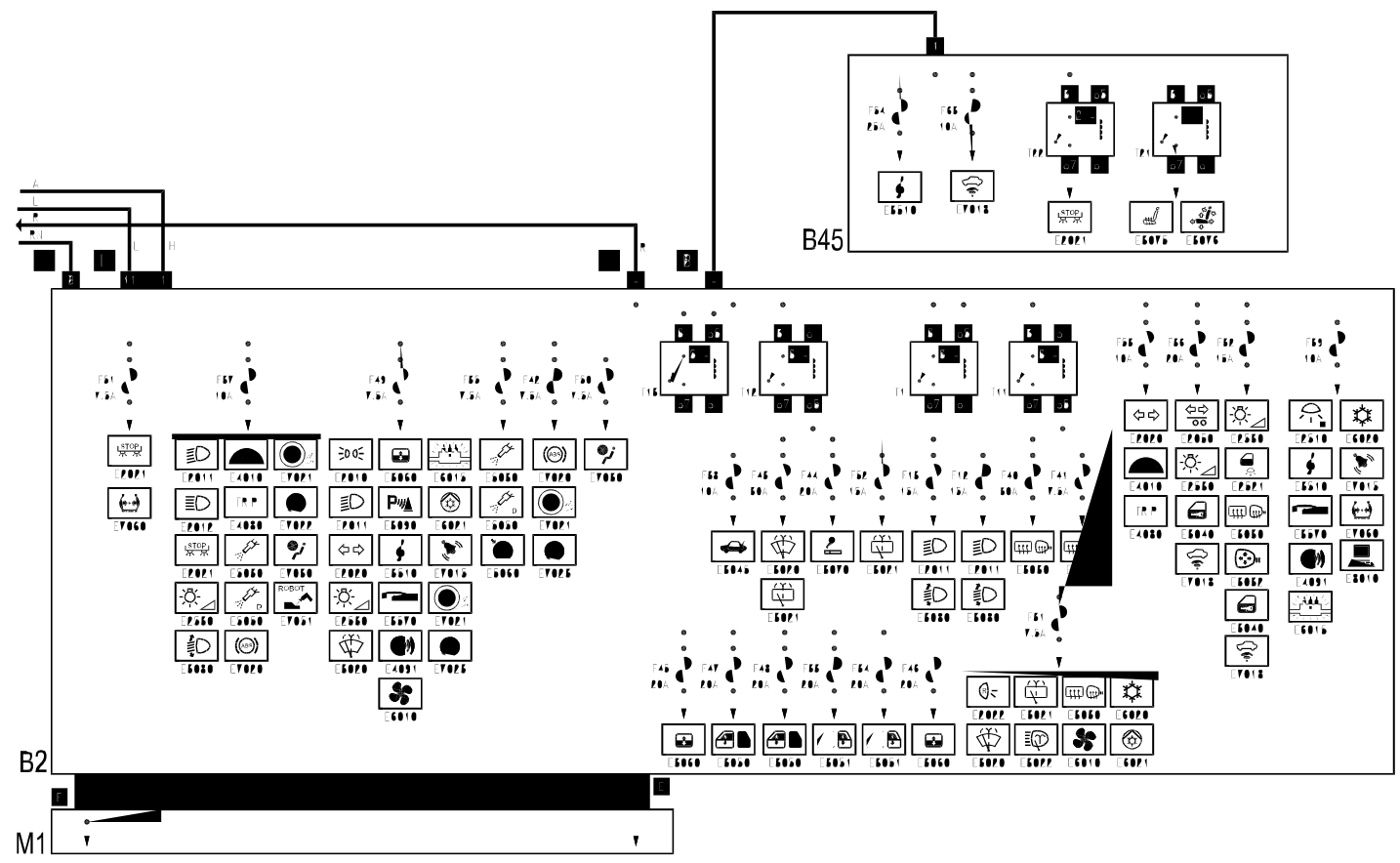

Wiring diagram

COMPONENTS

Component code	Name	Assembly reference
A1	Battery	5530B
B1	Engine compartment junction unit	5505A
B2	Junction unit under dashboard	5505A
B45	Luggage compartment junction unit
B99	Maxifuse box on battery	5530B
C2	Battery earth on engine
C3	Battery earth on bodyshell
D71	Passenger seat coupling
H1	Ignition switch	5520A
M1	Body computer	5505A
M69	Passive entry CARD recognition device
M89	(Front silencer side 23 28
M89	(Lato silenziatore anteriore) 2.3 ÷ 2.8
M89	Steering lock control unit
P20	Car radio	5570T
