Wiring diagrams and electrical functionsEARTHS - Wiring diagram
EARTHS - Wiring diagram

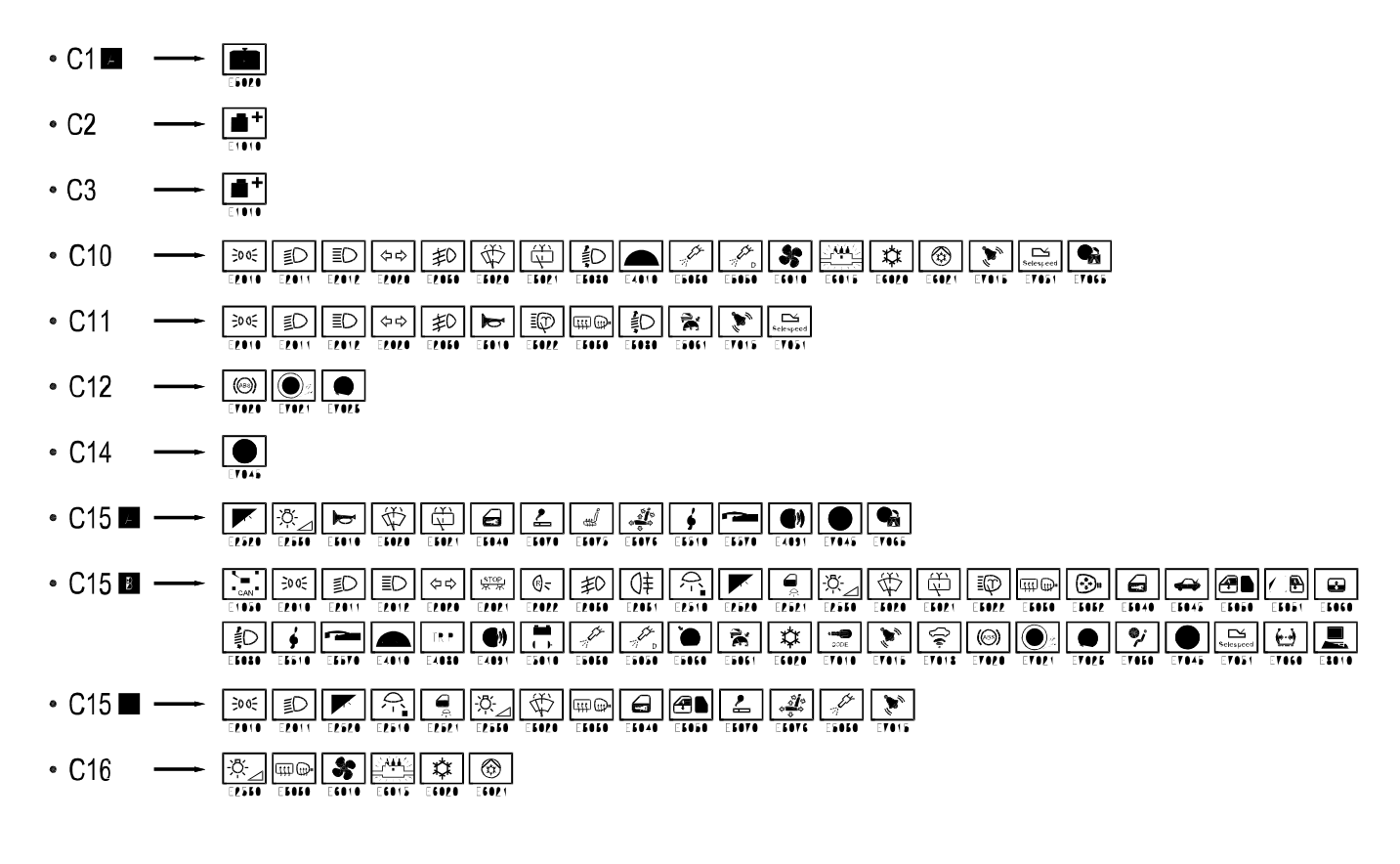

Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| C1 | Battery earth | |
| C2 | Battery earth on engine | |
| C3 | Battery earth on bodyshell | |
| C10 | Front left earth | |
| C11 | Right front earth | |
| C12 | ABS front earth | |
| C14 | Electric steering front earth | |
| C15 | Facia earth, driver's side | |
| C16 | Air conditioning earth | |
| C20 | Passenger side dashboard earth | |
| C30 | Left rear earth | |
| C31 | Rear right earth | |
| C39 | Compressor earth | |
| C40 | Earth on engine | |
| C50 | Air Bag earth | |
| C60 | Injection ECU earth |
