C39 Compressor earth
- Make
- Fiat
- Model
- Stilo Factory Service Manual
- Year
- 2001–2007
- Section
- Earths › C39 Compressor earth
Connectors and pin-outsC39 Compressor earth

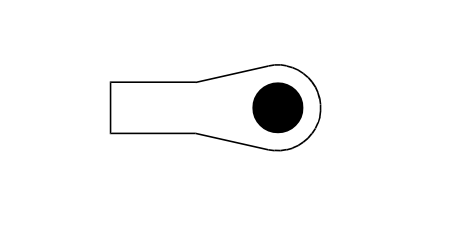

C39 Compressor earth
| Wiring | Colour |
|---|---|
| 51 ENGINE SERVICES BRIDGE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | N | L20 | 2 | |
| Wiring | Colour |
|---|---|
| 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | N | L20 | 2 | |
