Instrument panel › Connect wiring diagram

Wiring diagrams and electrical functionsConnect wiring diagram

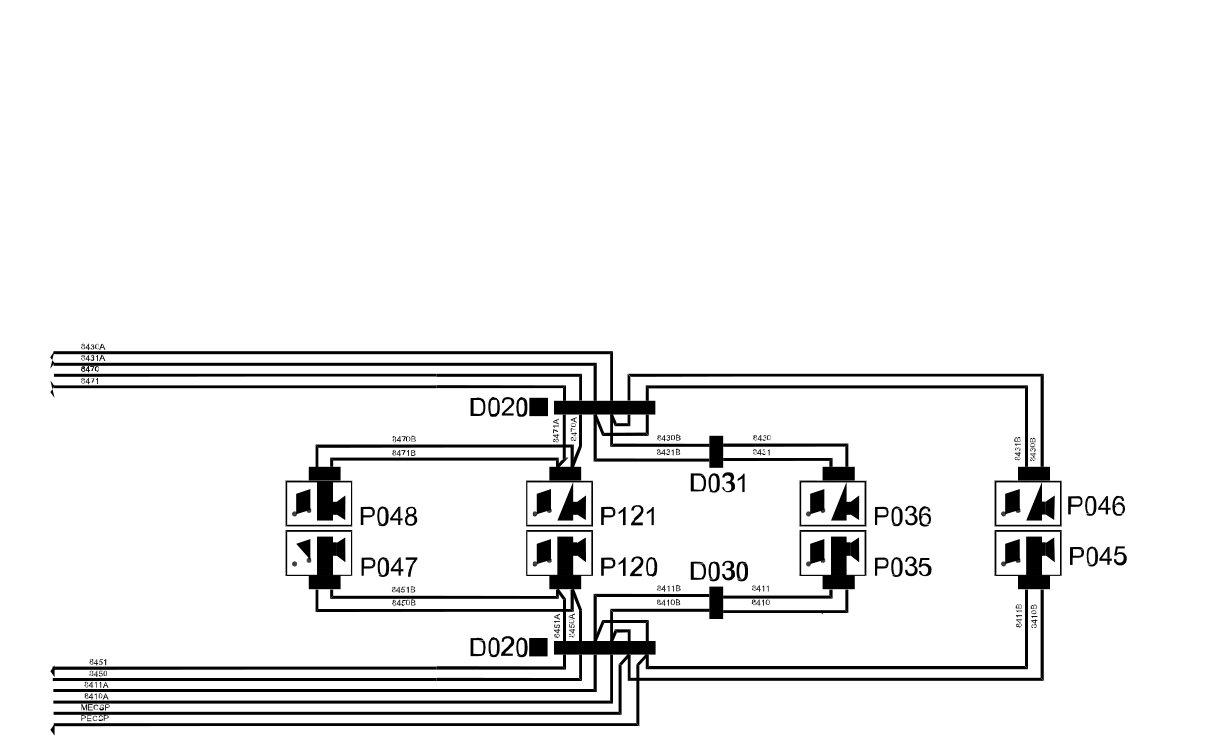

CONNECT WIRING DIAGRAM

Wiring Diagram

Components

Component code	Description	Reference to the assembly
C020	Passenger dashboard earth
C022	Centre dashboard earth
D020	Dashboard/rear coupling
D030	Left front door coupling
D031	Right front door coupling
D042	Courtesy light coupling
M001	Body computer	5505A
M140	Warning lights and milometer control unit (NSO)
M160	Connect control panel
M172	Multifunction screen node
N160	Connect cooling fan	5580P
P020	Radio
P025	Aerial feed/amplifier
P027	Microtelephone
P035	Speaker in left front door	5570T
P036	Speaker in right front door	5570T
P045	Left front tweeter speaker	5570T
P046	Right front tweeter speaker	5570T
P047	Left rear tweeter speaker	5570T
P048	Right rear tweeter speaker	5570T
P075	CD player/changer
P111	Radio/GSM aerial	5570T
P120	Leaf rear speaker in side panel
P121	Right rear speaker in side panel
