Instrument panel wiring diagram
- Make
- Fiat
- Model
- Ulysse Factory Service Manual
- Year
- 2002–2010
- Section
- Instrument panel › Instrument panel wiring diagram
Wiring diagrams and electrical functionsInstrument panel wiring diagram
INSTRUMENT PANEL WIRING DIAGRAM

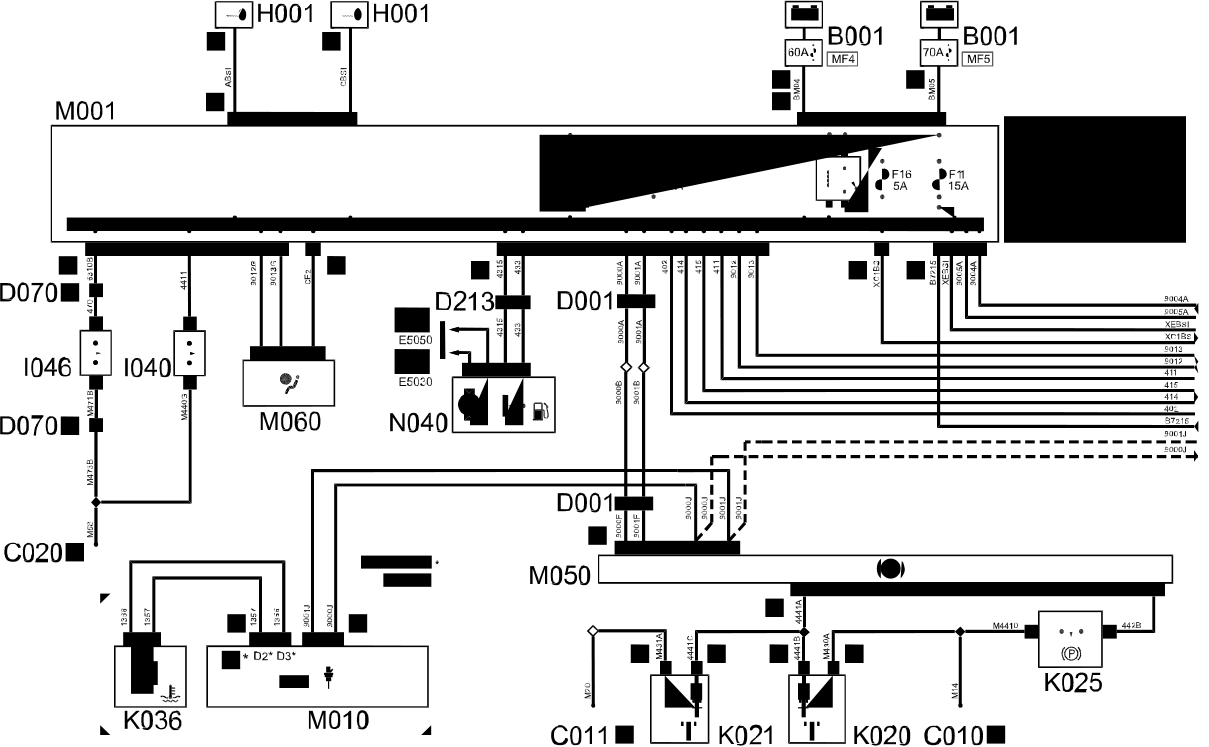

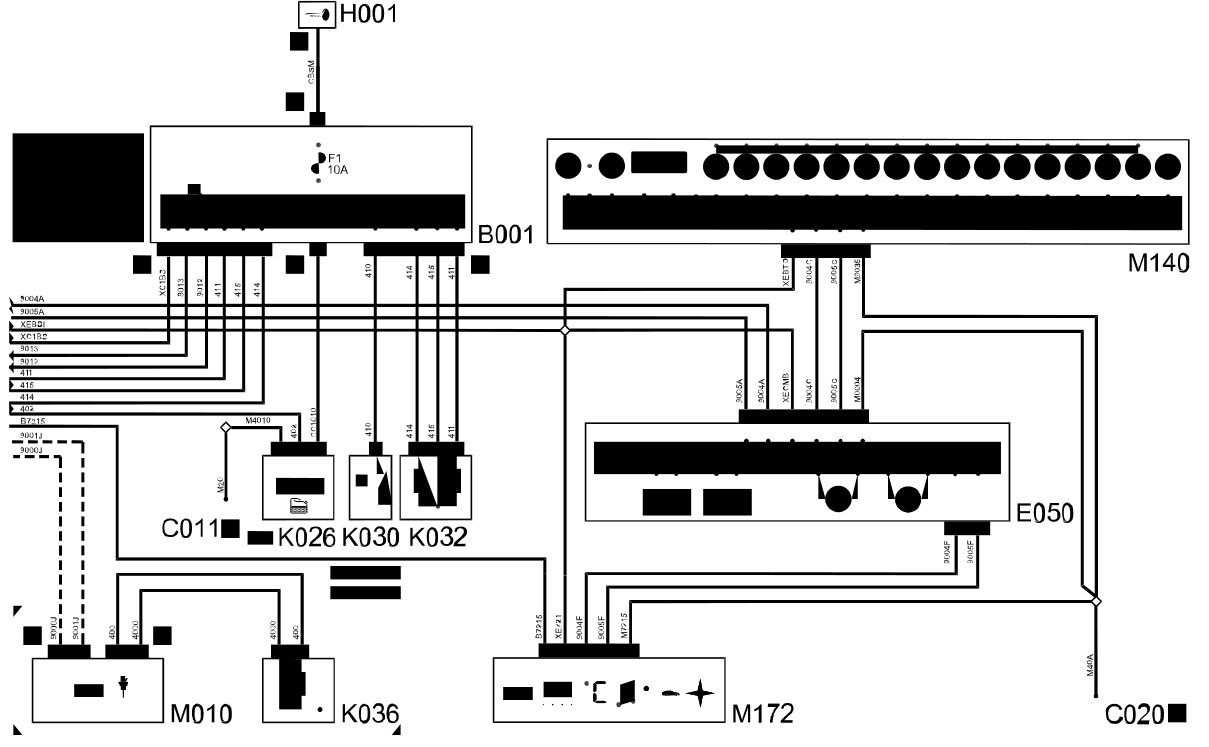

Wiring Diagram
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| B001 | Engine compartment junction unit | 5505A |
| C010 | Left front earth | |
| C011 | Right front earth | |
| C020 | Passenger dashboard earth | |
| D001 | Front/dashboard coupling | |
| D070 | Driver''s seat coupling | |
| D213 | Fuel tank coupling | |
| E050 | Instrument panel | 5560B |
| I040 | Handbrake applied switch | 5550D |
| I046 | Driver''s seat belt switch | |
| K020 | Left brake pad wear sensor (switch) | 3310A |
| K021 | Right brake pad wear sensor (switch) | 3310A |
| K025 | Brake fluid level sensor (switch) | |
| K026 | Engine coolant level sensor | |
| K030 | Engine oil pressure switch | 1084A |
| K032 | Engine oil level sensor | 1084A |
| K036 | Engine coolant temperature sensor/sender unit | 1056B |
| M001 | Body computer | 5505A |
| M010 | Engine management control unit | 1060G |
| M060 | Air Bag control unit | 5580C |
| M140 | Warning lights and milometer control unit (NSO) | |
| M172 | Multifunction screen node | |
| N040 | Fuel pump | 1040A |
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| B001 | ENGINE COMPARTMENT JUNCTION UNIT | Op. 5505A MULTI-FUNCTION COMPONENTS |
| C010 | LEFT FRONT EARTH | |
| C011 | RIGHT FRONT EARTH | |
| C020 | PASSENGER SIDE DASHBOARD EARTH | |
| D070 | DRIVER''S SEAT COUPLING | |
| D213 | FUEL TANK COUPLING | |
| E050 | INSTRUMENT PANEL | Op. 5560B ANALOGUE CONTROL PANEL |
| H001 | Ignition switch | Op. 5520A IGNITION SWITCH |
| I040 | HANDBRAKE APPLIED SWITCH | Op. 5550D BRAKE AND REVERSING LIGHTS |
| I046 | DRIVER''S SEAT BELT SWITCH | |
| K020 | LEFT BRAKE PAD WEAR SENSOR (SWITCH) | Op. 3310A FRONT DISC BRAKES |
| K021 | RIGHT BRAKE PAD WEAR SENSOR (SWITCH) | Op. 3310A FRONT DISC BRAKES |
| K025 | BRAKE FLUID LEVEL SENSOR (SWITCH) | |
| K026 | Engine coolant level sensor | |
| K030 | INSUFFICIENT ENGINE OIL PRESSURE SENSOR | Op. 1084A INDICATORS/CHECK DEVICES |
| K032 | ENGINE OIL LEVEL SENSOR | Op. 1084A INDICATORS/CHECK DEVICES |
| K036 | ENGINE COOLANT TEMPERATURE SENSOR/SENDER UNIT | Op. 1056B MULTI-POINT INJECTION SYSTEM (MPI) |
| M001 | BODY COMPUTER | Op. 5505A MULTI-FUNCTION COMPONENTS |
| M010 | ENGINE MANAGEMENT CONTROL UNIT | Op. 1060G DIESEL INJECTION PRESSURE PUMP ELECTRONIC CONTROL |
| M050 | ABS CONTROL UNIT | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| M060 | AIR BAG CONTROL UNIT | Op. 5580C AIR BAG SYSTEM |
| M140 | WARNING LIGHTS AND MILOMETER CONTROL UNIT (NSO) | |
| M172 | MULTIFUNCTION SCREEN NODE | |
| N040 | FUEL PUMP AND LEVEL GAUGE | Op. 1040A FUEL TANK AND COMPONENTS |
