Wiring diagrams and electrical functionsNavigator wiring diagram

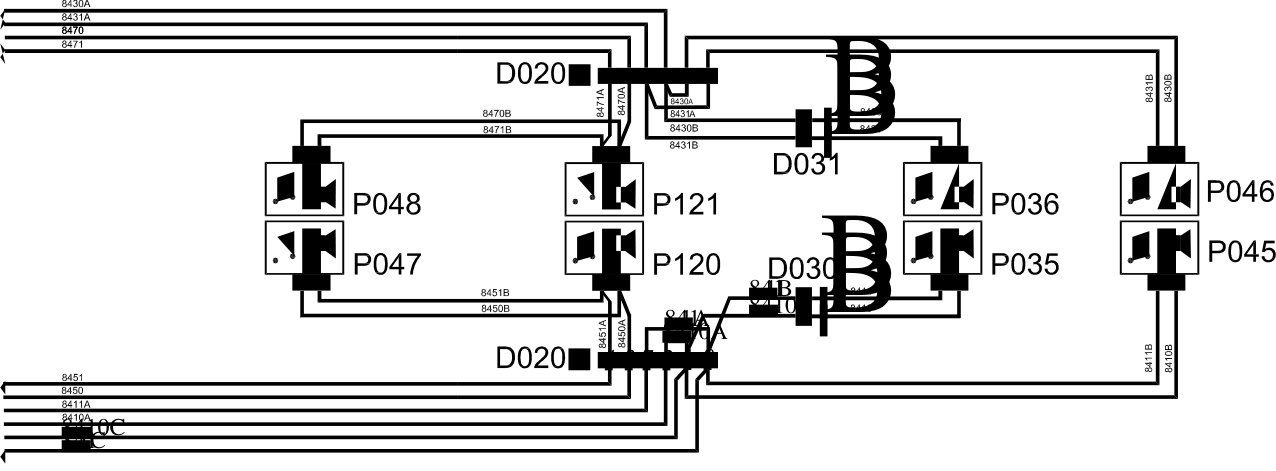

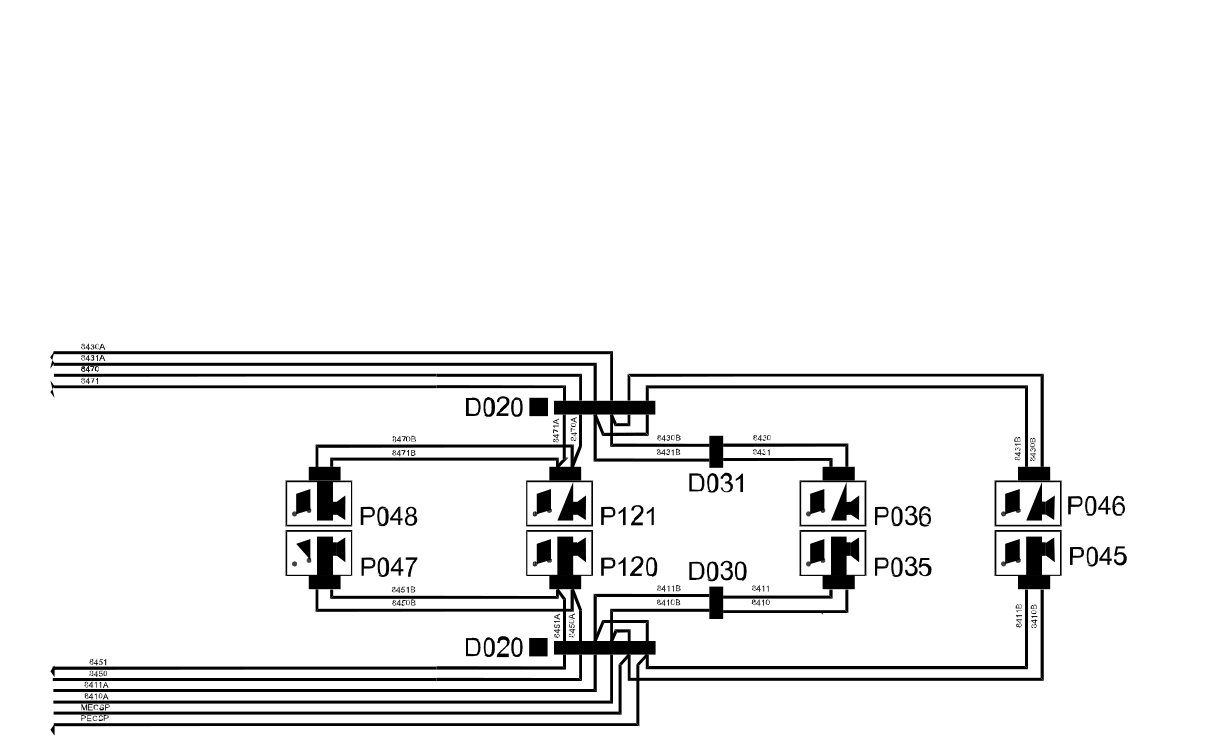

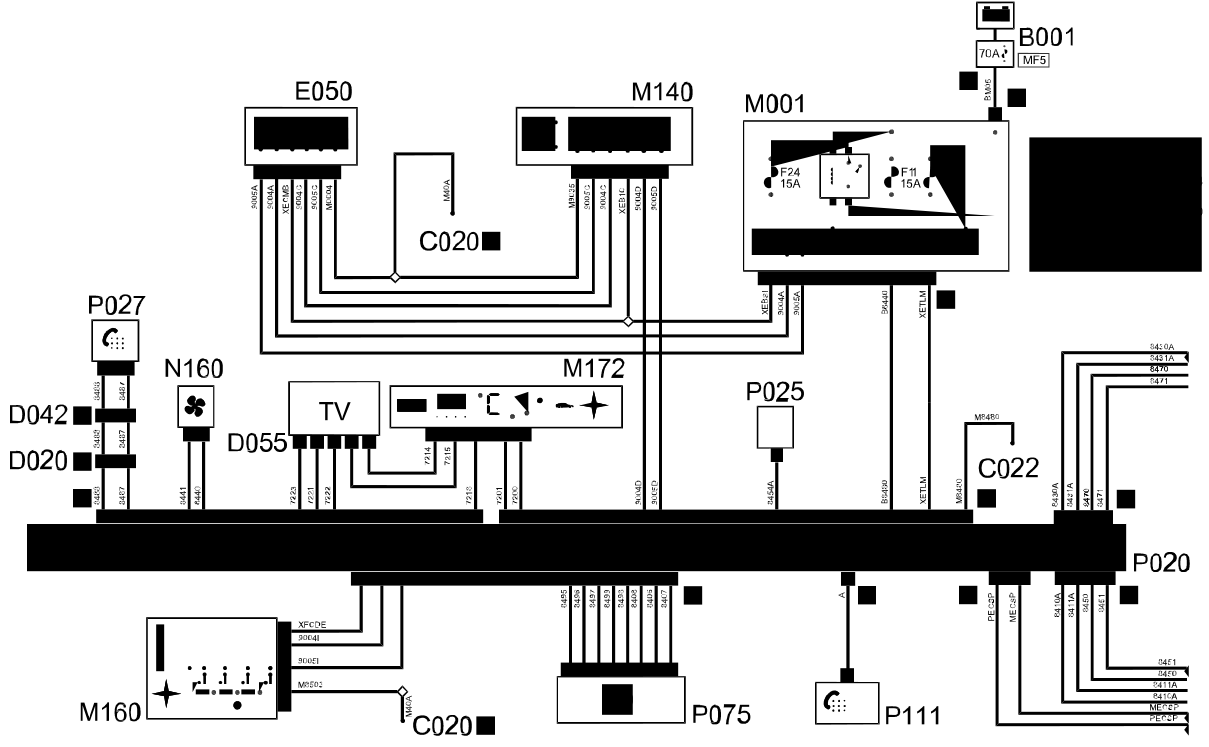

NAVIGATOR WIRING DIAGRAM
Wiring Diagram
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| C020 | Passenger dashboard earth | |
| C022 | Centre dashboard earth | |
| D020 | Dashboard/rear coupling | |
| D030 | Left front door coupling | |
| D031 | Right front door coupling | |
| D055 | Dashboard/TV coupling | |
| M001 | Body computer | 5505A |
| M140 | Warning lights and milometer control unit (NSO) | |
| M160 | Connect control panel | |
| M172 | Multifunction screen node | |
| N160 | Connect cooling fan | 5580P |
| P020 | Radio | |
| P025 | Aerial feed/amplifier | |
| P027 | Microtelephone | |
| P035 | Speaker in left front door | 5570T |
| P036 | Speaker in right front door | 5570T |
| P045 | Left front tweeter speaker | 5570T |
| P046 | Right front tweeter speaker | 5570T |
| P047 | Left rear tweeter speaker | 5570T |
| P048 | Right rear tweeter speaker | 5570T |
| P075 | CD player/changer | |
| P111 | Radio/GSM aerial | 5570T |
| P120 | Leaf rear speaker in side panel | |
| P121 | Right rear speaker in side panel |
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| B001 | ENGINE COMPARTMENT JUNCTION UNIT | Op. 5505A MULTI-FUNCTION COMPONENTS |
| C020 | PASSENGER SIDE DASHBOARD EARTH | |
| C022 | Centre dashboard earth | |
| D020 | DASHBOARD/REAR COUPLING | |
| D030 | DRIVER''S FRONT DOOR COUPLING | |
| D031 | PASSENGER FRONT DOOR COUPLING | |
| D042 | COURTESY LIGHT COUPLING | |
| D055 | Dashboard/TV coupling | |
| E050 | INSTRUMENT PANEL | Op. 5560B ANALOGUE CONTROL PANEL |
| M001 | BODY COMPUTER | Op. 5505A MULTI-FUNCTION COMPONENTS |
| M140 | WARNING LIGHTS AND MILOMETER CONTROL UNIT (NSO) | |
| M160 | CONNECT CONTROL PANEL | |
| M172 | MULTIFUNCTION SCREEN NODE | |
| N160 | CONNECT COOLING FAN | Op. 5580P CONNECT PANEL |
| P020 | RADIO | |
| P022 | AERIAL AND HEATED REAR WINDOW CONTROL UNIT | |
| P025 | AERIAL FEED/AMPLIFIER | |
| P027 | MICROTELEPHONE | |
| P035 | SPEAKER IN LEFT FRONT DOOR | Op. 5570T CAR RADIO AND CAR TELEPHONE |
| P036 | SPEAKER IN RIGHT FRONT DOOR | Op. 5570T CAR RADIO AND CAR TELEPHONE |
| P045 | LEFT FRONT TWEETER SPEAKER | Op. 5570T CAR RADIO AND CAR TELEPHONE |
| P046 | RIGHT FRONT TWEETER SPEAKER | Op. 5570T CAR RADIO AND CAR TELEPHONE |
| P047 | LEFT REAR TWEETER SPEAKER | Op. 5570T CAR RADIO AND CAR TELEPHONE |
| P048 | RIGHT REAR TWEETER SPEAKER | Op. 5570T CAR RADIO AND CAR TELEPHONE |
| P075 | CD CHANGER MODULE | |
| P110 | GPS/GSM AERIAL | Op. 5570T CAR RADIO AND CAR TELEPHONE |
| P120 | LEAF REAR SPEAKER IN SIDE PANEL | |
| P121 | RIGHT REAR SPEAKER IN SIDE PANEL |
