Composition

2.4 JTD 20V

STRUCTURE

The fuel system is divided into a low pressure circuit and a high pressure circuit.

The low pressure circuit consists of:

• an auxiliary pump immersed in the tank
• the fuel filter
• the fuel return manifold pipe
• the connecting pipes.

The high pressure circuit consists of:

• the pressure pump
• the single fuel manifold pipe
• the injectors
• the connecting pipes

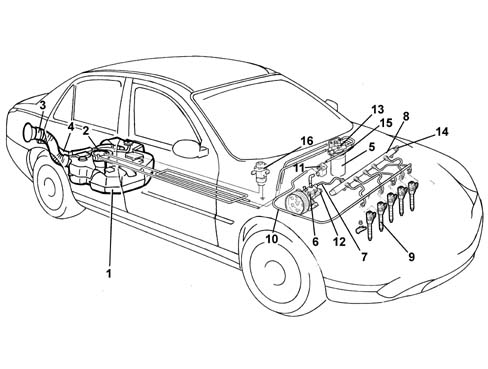

FUEL SUPPLY SYSTEM

• 1 Fuel tank
• 2 Submerged fuel assembly complete with level gauge control
• 3 Fuel filler pipe
• 4 Reflux pipe
• 5 Fuel filter filter element
• 6 High pressure pump
• 7 High pressure pipes
• 8 Single fuel manifold pipe
• 9 Injectors
• 10 Pipe from injectors to fuel return manifold pipe
• 11, Fuel return manifold pipe
• 12, High pressure regulator
• 13 Fuel temperature sensor
• 14 Fuel high pressure sensor
• 15 Fuel heater
• 16, Inertia switch

2.4 JTD 10V

STRUCTURE

The fuel system is divided into a low pressure circuit and a high pressure circuit.

The low pressure circuit consists of:

• an auxiliary pump immersed in the tank
• the fuel filter
• the fuel return manifold pipe
• the connecting pipes.

The high pressure circuit consists of:

• the pressure pump
• the single fuel manifold pipe
• the injectors
• the connecting pipes

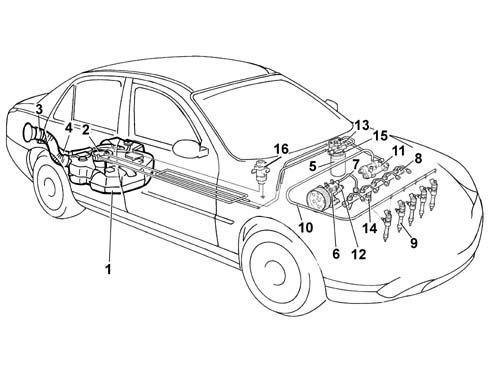

FUEL SUPPLY SYSTEM

• 1 Fuel tank
• 2 Submerged fuel assembly complete with level gauge control
• 3 Fuel filler pipe
• 4 Reflux pipe
• 5 Fuel filter filter element
• 6 High pressure pump
• 7 High pressure pipes
• 8 Single fuel manifold pipe
• 9 Injectors
• 10 Pipe from injectors to fuel return manifold pipe
• 11, Fuel return manifold pipe
• 12, High pressure regulator
• 13 Fuel temperature sensor
• 14 Fuel high pressure sensor
• 15 Fuel heater
• 16, Inertia switch
