Fuel filler pipe HOUSING SEAL - R.R.
- Make
- Lancia
- Model
- Thesis Factory Service Manual
- Year
- 2002–2009
- Section
- Fuel tank and pipes › Fuel filler pipe HOUSING SEAL - R.R.
Fuel filler pipe HOUSING SEAL - R.R.
Removing
- Position the vehicle on the lift.
- Partly raise the lift.

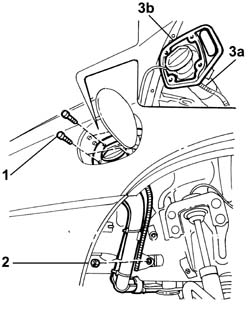

1. Undo the bolts fixing the fuel filler to the bodyshell.
2. Undo the nut fixing the fuel filler mounting bracket.
3. Gently lower the fuel filler pipe (3a) and remove the seal (3b).
Refitting
- Fit the new seal.
- Tighten the nut fixing the fuel filler mounting bracket.
- Fasten the fuel filler to the bodyshell using the fixing bolts.
- Lower the lift.
- Remove the vehicle from the lift.
Removing
- Position the vehicle on the lift.
- Partly raise the lift.
1. Undo the bolts fixing the fuel filler pipe to the bodyshell.
2. Undo the nut fixing the fuel filler mounting bracket.
3. Gently lower the fuel filler pipe (3a) and remove the seal (3b).
Refitting
- Fit the new seal.
- Tighten the nut fixing the fuel filler mounting bracket.
- Fasten the fuel filler to the bodyshell using the fixing bolts.
- Lower the lift.
- Remove the vehicle from the lift.
