BrakesKey to master cylinder

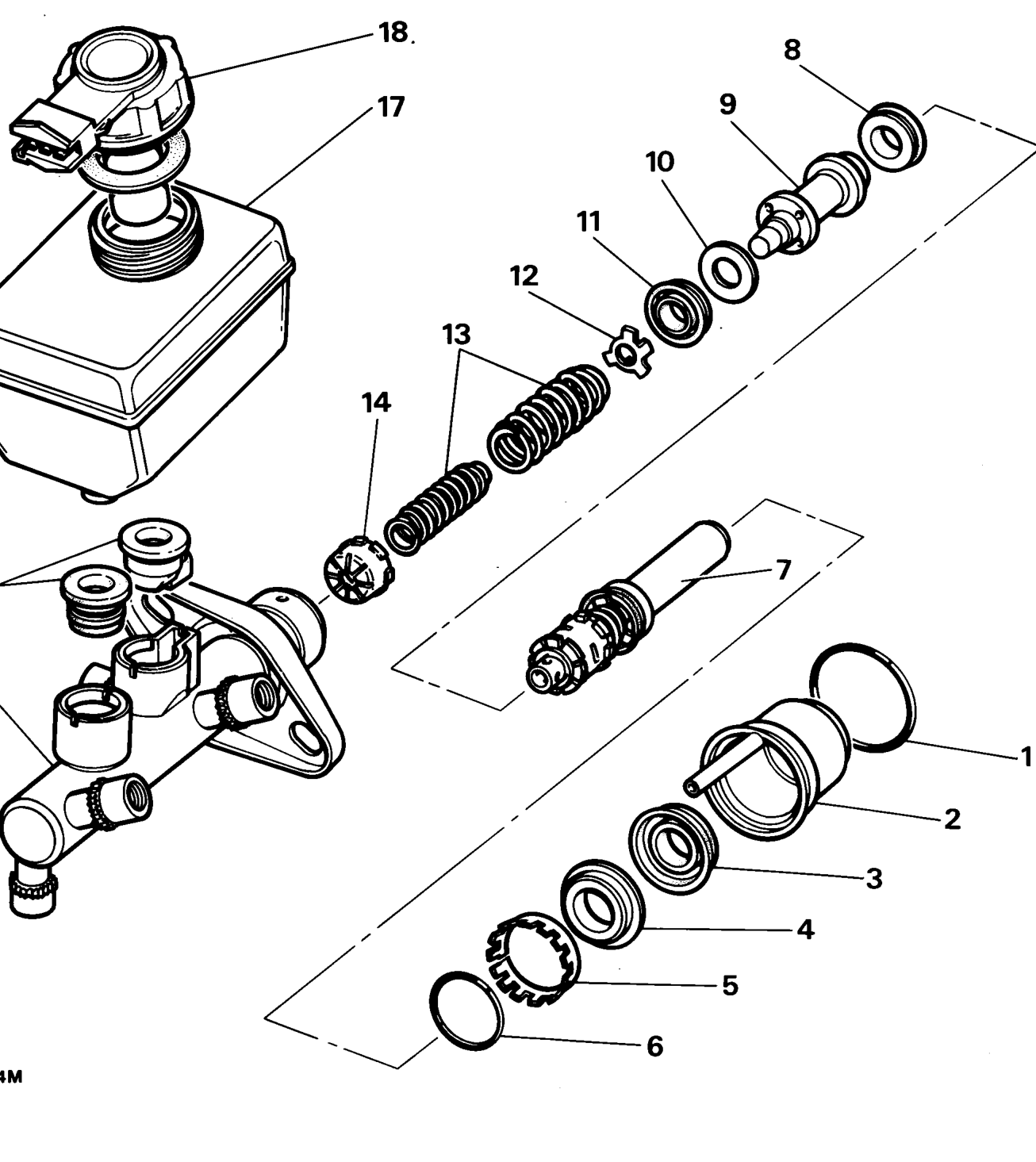

Key to master cylinder
- Water ingress seal 10. Washer
- Transfer housing 11. Recuperating seal - primary cup
- Vacuum seal 12. Seal retainer
- Guide ring 13. Springs - 2 off
- Retaining ring 14. Swirl tube
- ’O’ ring seal 15. Master cylinder body
- Primary plunger assembly 16. Reservoir seals
- ’L’ seal 17. Reservoir
- Secondary plunger 18. Low fluid level switch and cap
