See Adjustment, drain and refill

Refit

19. Fit radiator and secure to lower mounting
20. Connect bottom hose to radiator and secure with
21. Remove plugs from engine oil cooler pipe
22. Clean oil cooler pipe connections.
23. Lubricate NEW ’O’ rings with clean engine oil
24. Connect oil cooler pipes to radiator and tighten
25. Remove container.
26. Connect expansion tank hose to radiator and
27. Connect throttle body hose to radiator and
10. Remove fan cowl. 28. Fit fan cowl to radiator.
11. Loosen clip and disconnect throttle body to 29. Fit fan cowl lower retaining clips. radiator hose. 30. Connect top hose to radiator and tighten clip.
12. Loosen clip and disconnect expansion tank to 31. Fit fan upper cowl and secure with clips. radiator hose. 32. Fit fan cowl upper mounting brackets.
13. Position container beneath engine oil cooler pipe 33. Fit radiator top mountings and secure with unions.

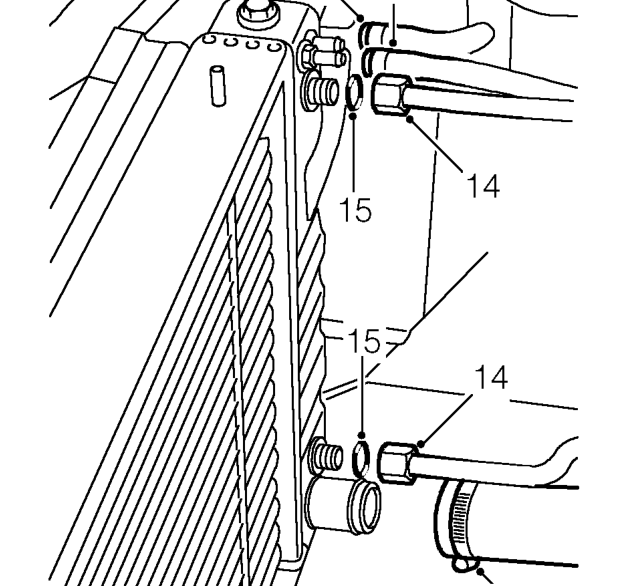

14. Loosen engine cooler pipes and disconnect from 34. Fit front grille and secure with screws. radiator. 35. Refill cooling system.
15. Remove and discard ’O’ rings from oil cooler pipes. 36. Reconnect battery negative lead.
16. Plug oil cooler pipe connections.
17. Loosen clip and disconnect bottom hose from radiator.
18. Release radiator from lower mounting rubbers and remove radiator.

rubbers.

• NOTE: Ensure condenser lower mounting
• brackets are located to radiator lower
• mounting brackets.

clip.

connections.

and fit to pipes.

unions to 30 Nm, 22 lbf ft.

tighten clip.

tighten clip.

screws and bolts.

See Adjustment, drain and refill
