Land Rover Defender 90 Workshop Manual (NAS)11 · Manifold and exhaust system
11 · Engine

Intermediate pipe tail pipe

Make
Land Rover
Model
Defender 90 Workshop Manual (NAS)
Section
Repair › Intermediate pipe tail pipe
Manifold and exhaust systemIntermediate pipe tail pipe

INTERMEDIATE PIPE TAIL PIPE

Service repair no - 30.10.11 Service repair no - 30.10.22

Remove Remove

  1. Raise vehicle on ramp [hoist].

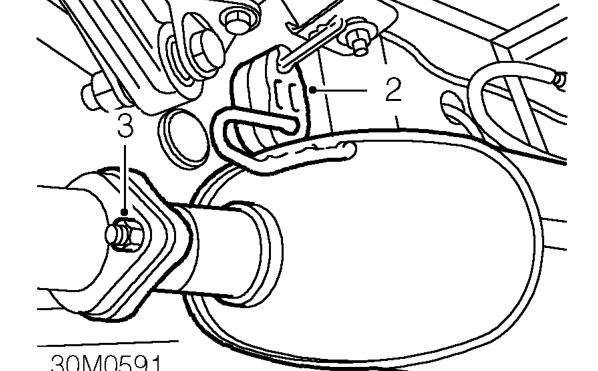

Remove remove – Raise vehicle on ramp [hoist].
  1. Release intermediate pipe from mounting rubber.
  2. Remove 2 nuts securing intermediate pipe to tail pipe.

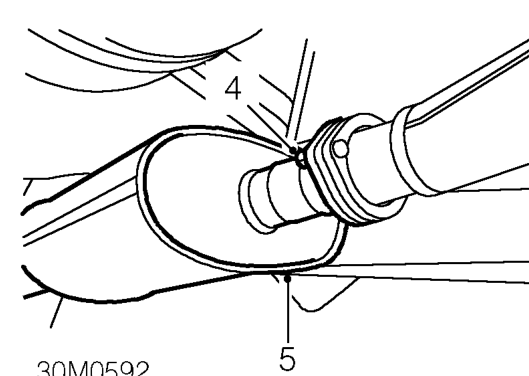

Remove remove – Remove 2 nuts securing intermediate pipe to tail pipe.
  1. Remove 2 nuts securing intermediate pipe to front pipe.
  2. Release intermediate pipe from front and tail pipes and remove.

Refit Refit

  1. Fit intermediate pipe to front and tail pipes.
  2. Secure intermediate pipe to mounting rubber.
  3. Fit and tighten nuts securing intermediate pipe to front pipe, 30 Nm, 22 lbf ft.
  4. Fit and tighten nuts securing intermediate pipe to tail pipe, 30 Nm, 22 lbf ft.
  5. Lower vehicle.
  6. Raise vehicle on a ramp [hoist].

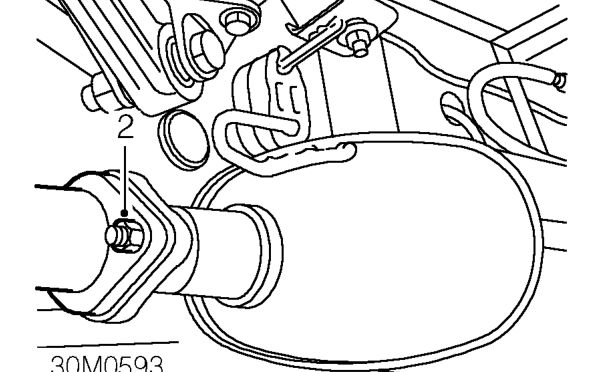

Refit refit – Raise vehicle on a ramp [hoist].
  1. Remove 2 nuts securing tail pipe to intermediate pipe.

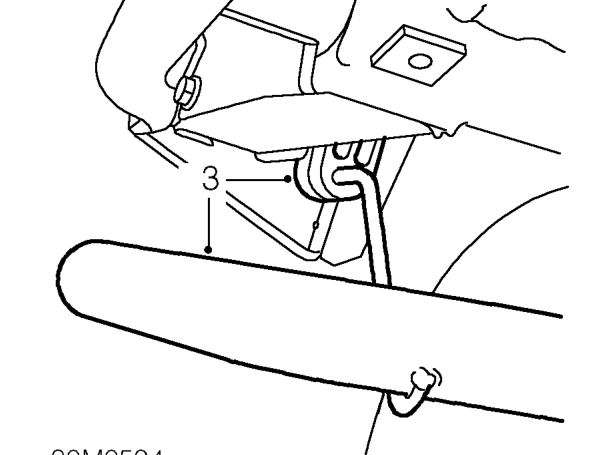

Refit refit – Remove 2 nuts securing tail pipe to intermediate pipe.
  1. Release tail pipe from mounting rubber.
  2. Release tail pipe from intermediate pipe and feed over rear axle.
  3. Remove tail pipe.
  4. Feed tail pipe over rear axle and connect to intermediate pipe.
  5. Secure tail pipe to mounting rubber.
  6. Fit nuts and tighten tail pipe to intermediate pipe. 30 Nm, 22 lbf ft.
  7. Lower vehicle.
