47Nm, 35 lbf ft

Refit

24. Fit propeller shafts to vehicle and tighten nuts to

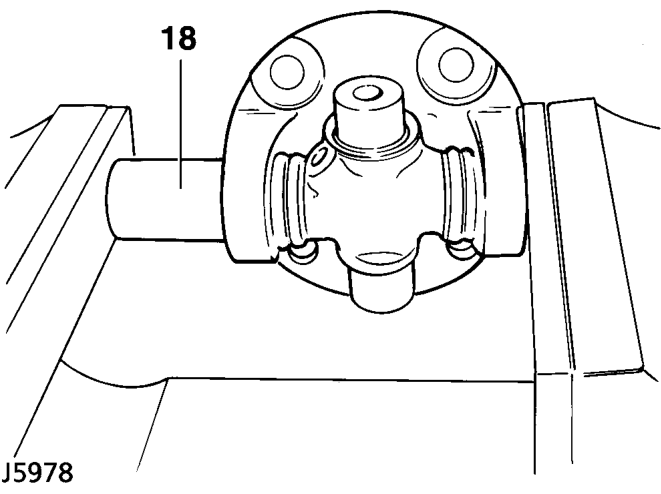

18. Press each cup into its respective yoke up to lower land of circlip grooves. Damage may be caused to cups and seals if cups pass this point.
19. Fit circlips and check no end float exists.

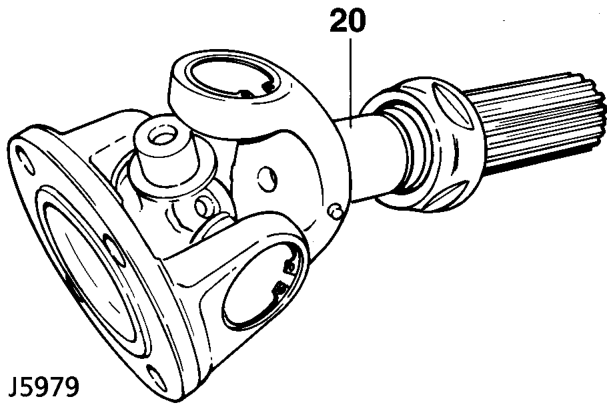

20. Engage spider in yokes of sliding member. Fit bearing cups and circlips as described in instructions 14 to 19.
21. Fit grease nipples to spider and sliding member.
22. Apply instructions 14 to 19 to opposite end of propeller shaft.
23. Fit grease nipple and lubricate.

47Nm, 35 lbf ft

Refit propeller shaft so sliding joint end of shaft is fitted to transfer gearbox.
