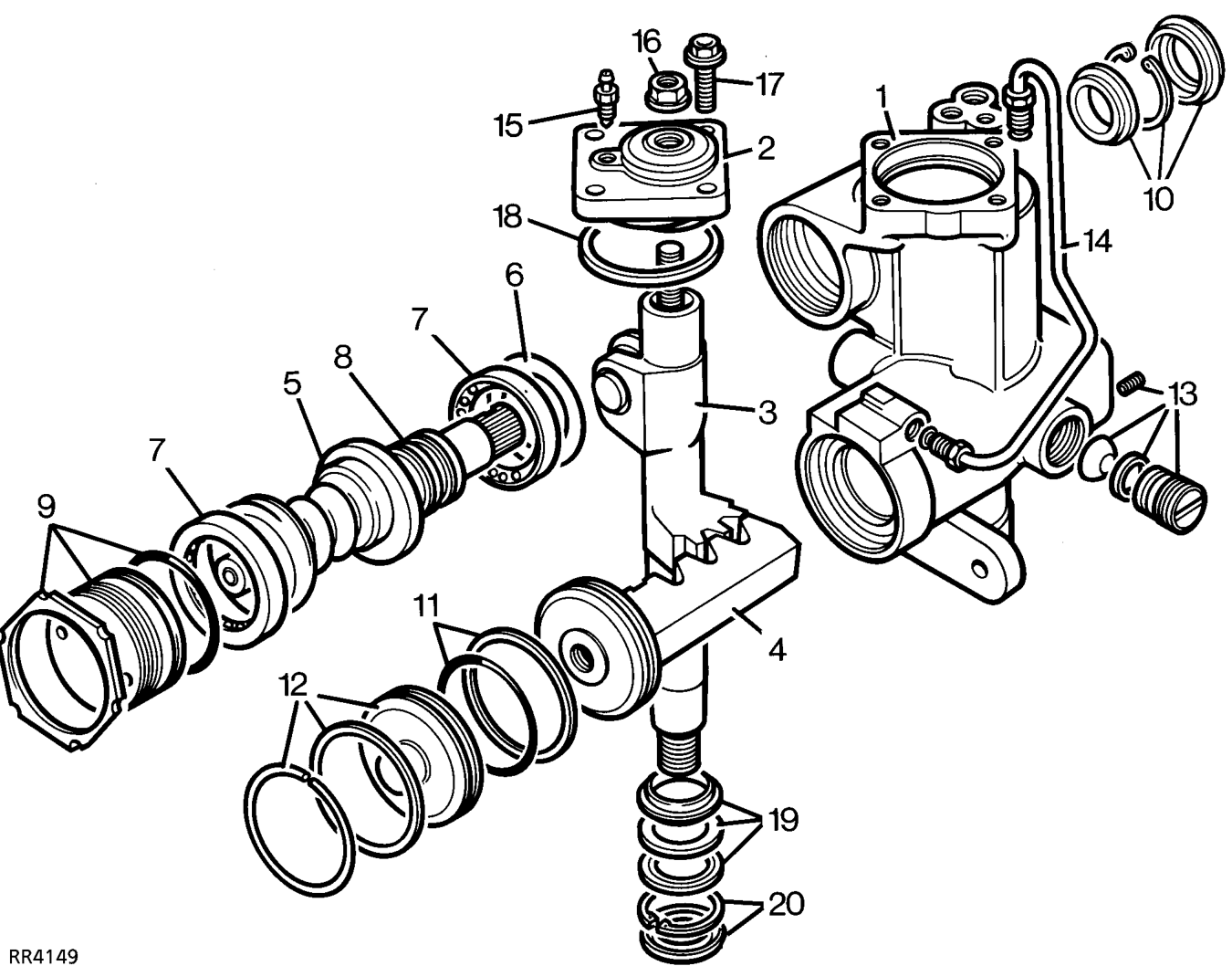

Power steering box components

Power steering box components

1. Housing complete with sector shaft bearings 11. ’Teflon’ and rubber seal for piston
2. Cover plate complete with bearing 12. End cover seal and snap ring
3. Sector shaft 13. Adjustment components for piston/rack
4. Hydraulic piston/rack 14. Hydraulic pipe
5. Worm/valve and torsion bar assembly 15. Bleed screw
6. Shims for centralizing worm/valve 16. Sector shaft adjustment lock nut with seal
7. Ball race - 2 off 17. Cover plate bolts - 4 off
8. ’Teflon’ seals for valve sleeve - 3 off 18. Cover plate seal
9. Bearing adjuster, locknut and seal 19. Seal, washer and backup seal
10. Worm shaft pressure seal, circlip and dirt 20. Circlip and dust cover excluder
