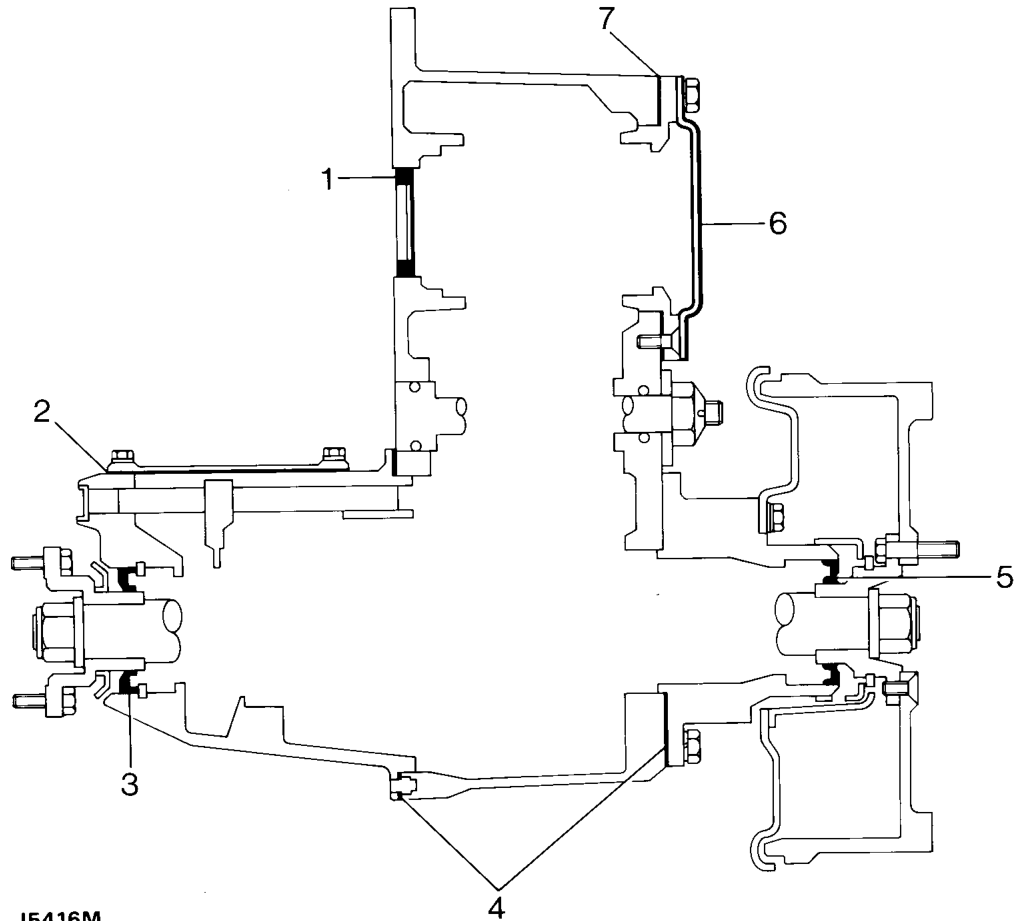

LT230Q TRANSFER GEARBOX - OIL SEAL LOCATIONS

1. Input seal.
2. Cover plate joints.
3. Front output seal.
4. Front and rear housing joint faces.
5. Rear output seal.
6. Power take off cover plate joint.
7. Bearing plate joint.
